CYLINDER HEAD

EN500C2 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

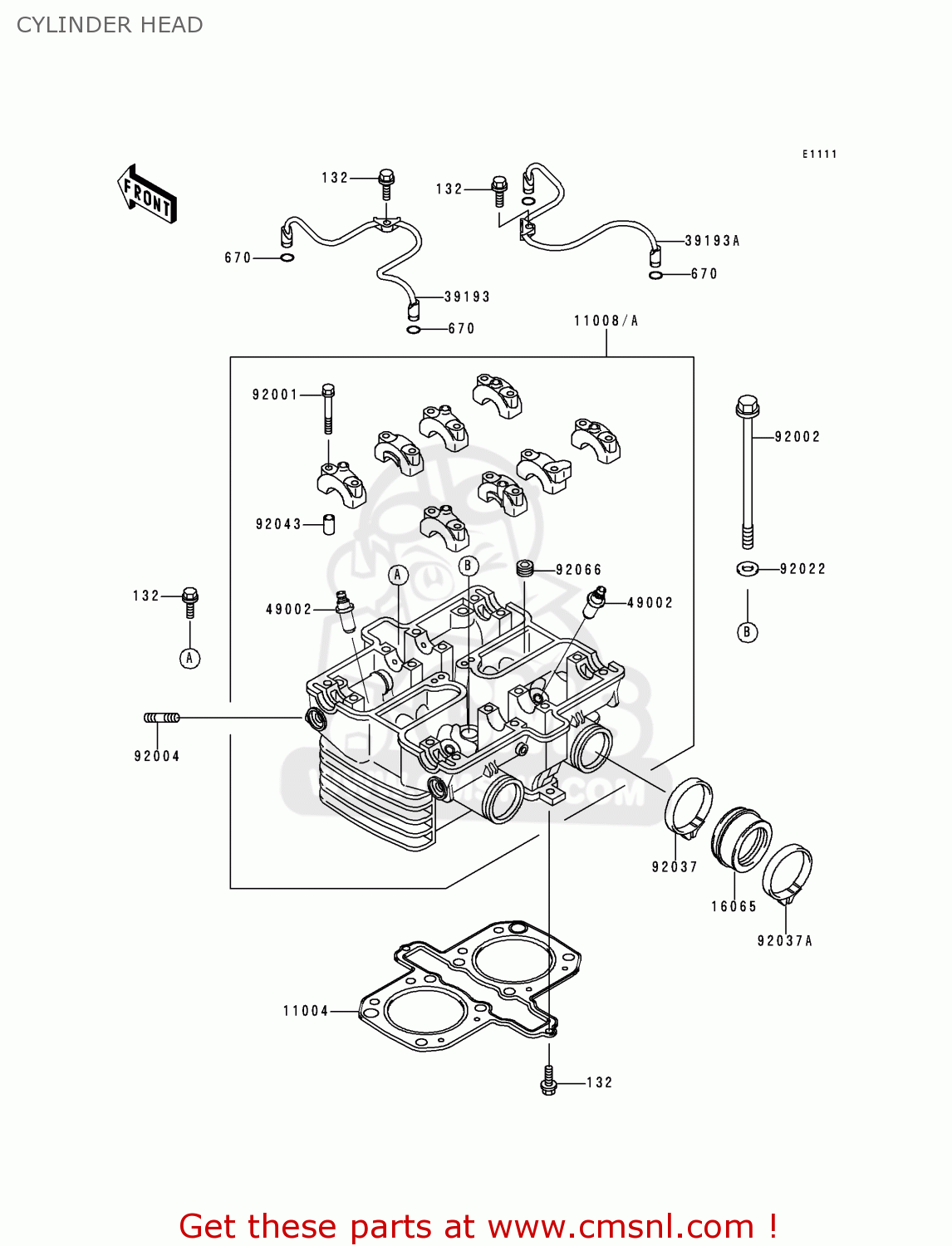

Cylinder head diagram EN500C2 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

670

670D1507
ref: 670

O RING,7MM

€ 1.00

11004

110041159
ref: 11004

GASKET-HEAD (NAS)

€ 61.00

11008

110081231
ref: 11008
ARFGST

HEAD-COMP-CYLINDER

€ 1,255.00

11008A

110081232
ref: 11008A
EUFRGRITNLNRSDSPUK

HEAD-COMP-CYLINDER

€ 1,317.50

16065

160651320
ref: 16065

HOLDER-CARBURETOR

€ 14.50

39193

391931038
ref: 39193

PIPE-OIL,LH

€ 44.00

39193A

391931039
ref: 39193A

PIPE-OIL,RH

€ 44.00

49002

490021052
ref: 49002

GUIDE-VALVE

€ 26.00

92001

920011872
ref: 92001

BOLT,6X46

€ 2.50

92002

920021943
ref: 92002

BOLT,10X164

€ 10.50

92004

920041214
ref: 92004

STUD

€ 3.50

92022

920221591
ref: 92022

WASHER,10.5X20X1.6

€ 3.00

92037

920371523
ref: 92037

CLAMP

€ 8.50

92037A

920371843
ref: 92037A

CLAMP

€ 5.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92066

920661253
ref: 92066

PLUG,PT1/2X12.5

€ 6.50
