TAILLIGHT(S)

EN500C10 VULCAN500LTD 2005 USA CALIFORNIA CANADA

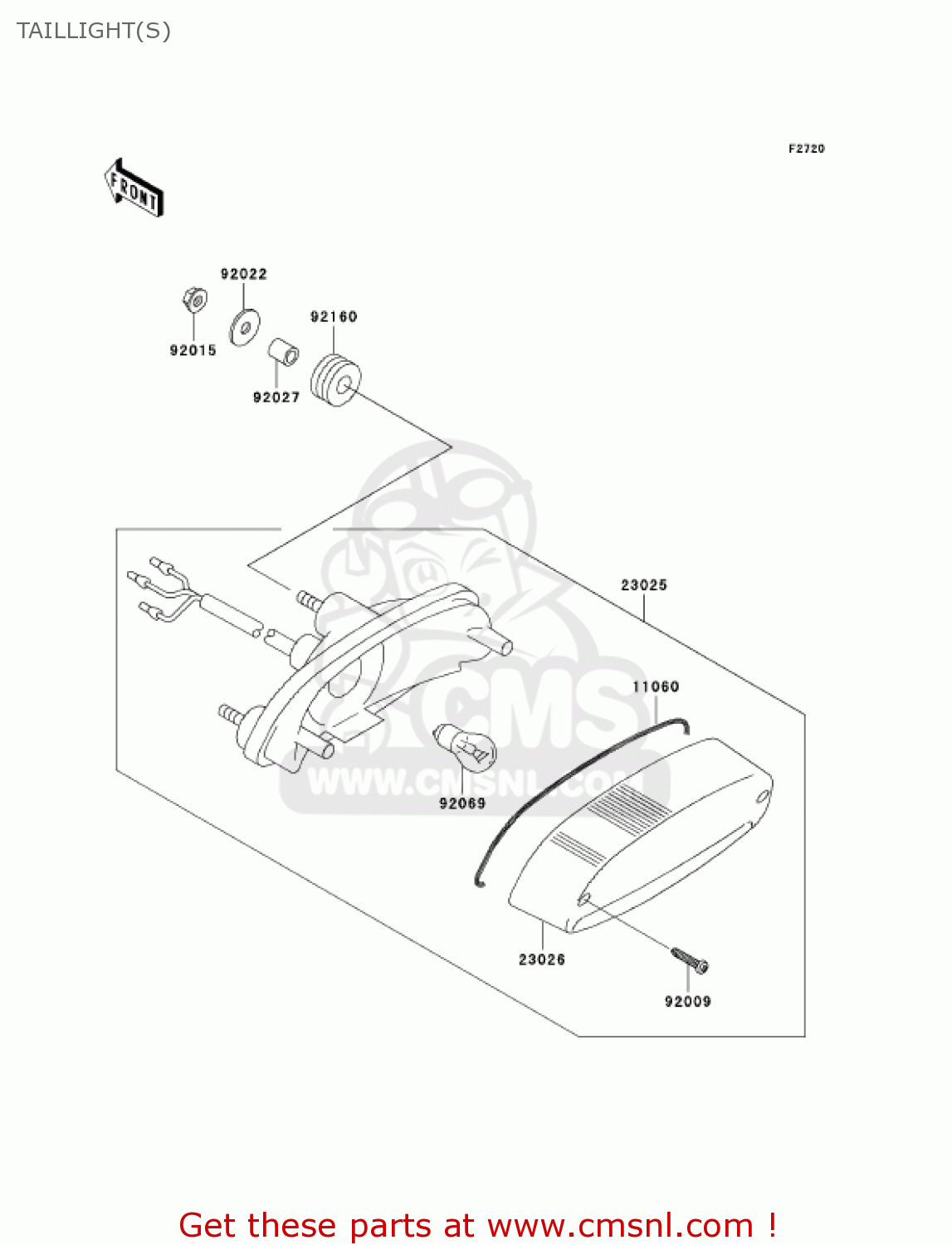

Taillight(s) diagram EN500C10 VULCAN500LTD 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11060

110601174
ref: 11060

GASKET,TAIL LAMP LENS (NAS)

€ 7.00

23025

230251312
ref: 23025

LAMP-TAIL

€ 164.00

23026

230261183
ref: 23026

LENS,TAIL LAMP

€ 39.00

92009

920091378
ref: 92009

SCREW,TAPPING,4X20

€ 2.50

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

920221557
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92160

921601162
ref: 92160

DAMPER

€ 3.00
