Genuine EN Kawasaki Parts delivered quickly!


CRANKCASE BOLT PATTERN

EN500C10 VULCAN500LTD 2005 USA CALIFORNIA CANADA

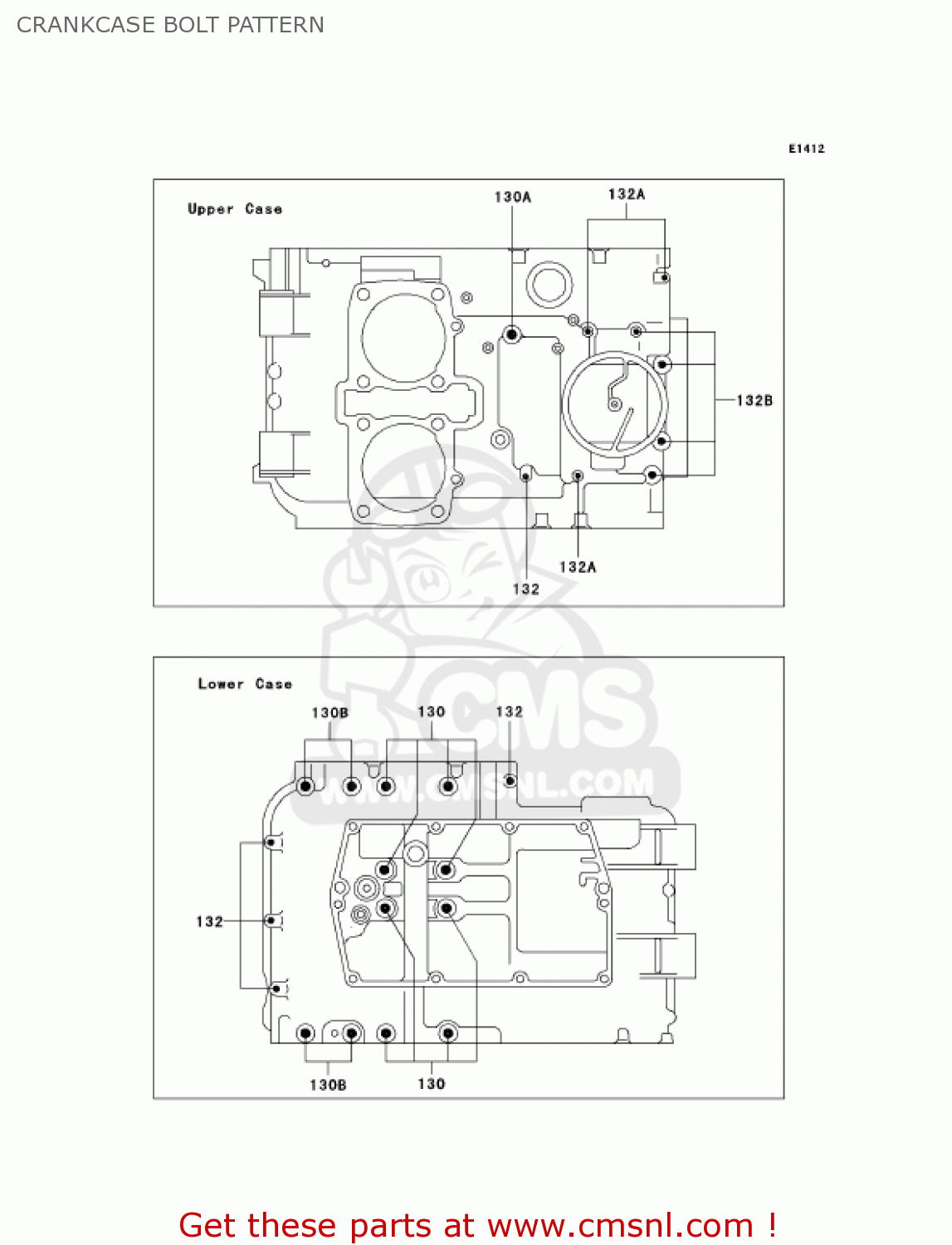

Crankcase bolt pattern diagram EN500C10 VULCAN500LTD 2005 USA CALIFORNIA CANADA

CRANKCASE BOLT PATTERN EN500C10 VULCAN500LTD 2005 USA CALIFORNIA CANADA
CRANKCASE BOLT PATTERN EN500C10 VULCAN500LTD 2005 USA CALIFORNIA CANADA
CRANKCASE BOLT PATTERN EN500C10 VULCAN500LTD 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130Z08100
ref: 130
BOLT-FLANGED
€ 7.50
130A
130Z0855
ref: 130A
BOLT-FLANGED
130Z0855
€ 3.50
130B
130Z0875
ref: 130B
BOLT-FLANGED
€ 6.00
132
132Y0640
ref: 132
BOLT-FLANGED-SMALL
132Y0640
€ 3.50
132A
132Y0660
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132Y0680
ref: 132B
BOLT-FLANGED-SMALL
€ 3.50
