RADIATOR

EN500C10 VULCAN500LTD 2005 USA CALIFORNIA CANADA

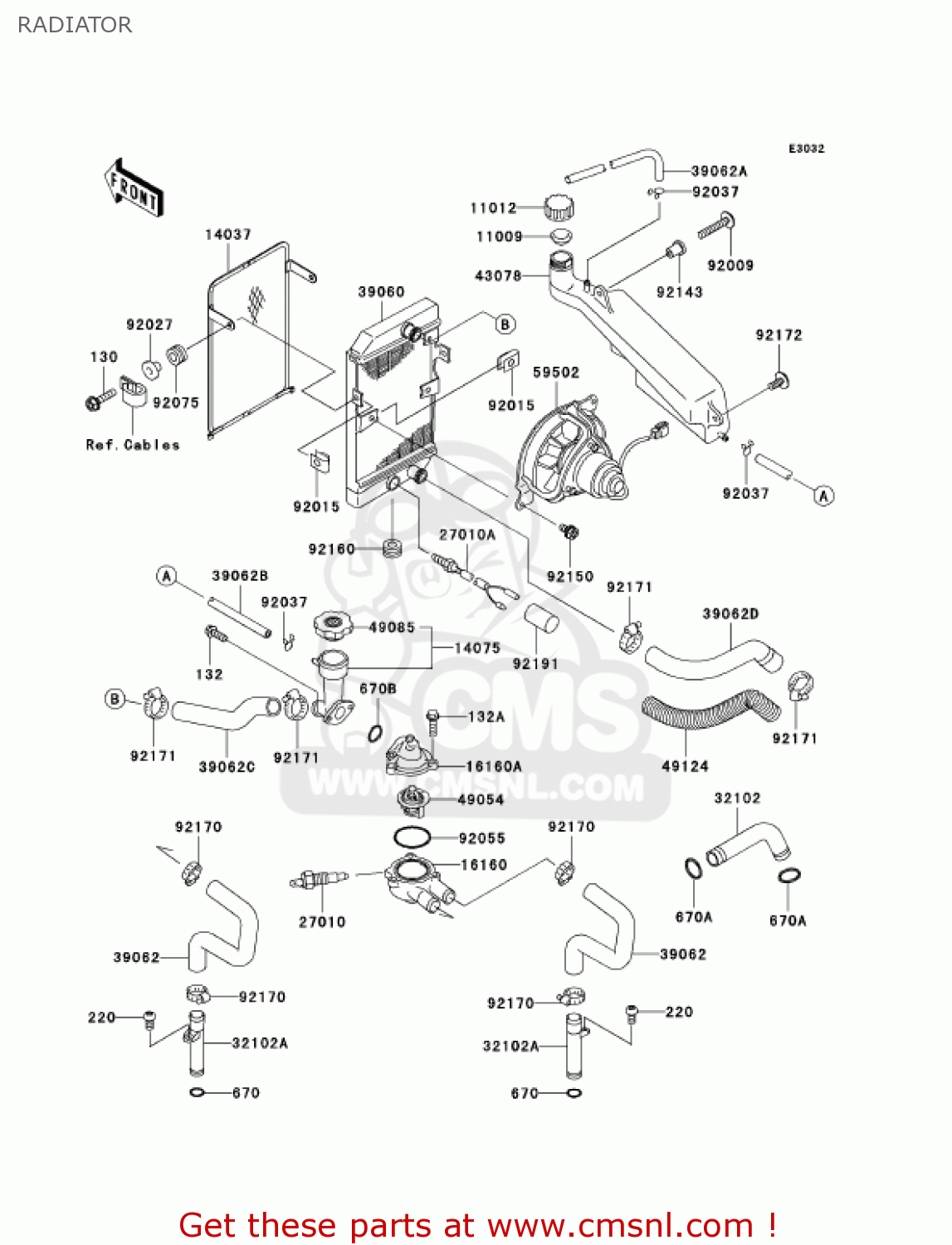

Radiator diagram EN500C10 VULCAN500LTD 2005 USA CALIFORNIA CANADA

RADIATOR EN500C10 VULCAN500LTD 2005 USA CALIFORNIA CANADA
RADIATOR EN500C10 VULCAN500LTD 2005 USA CALIFORNIA CANADA
RADIATOR EN500C10 VULCAN500LTD 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0625
ref: 130
BOLT-FLANGED,6X25
130J0625
€ 2.00
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
132G0616
€ 1.00
132A
132G0620
ref: 132A
BOLT-FLANGED-SMALL
132G0620
€ 1.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
670
670B2014
ref: 670
O RING,14MM
670B2014
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
670B2018
€ 1.00
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14037
140371220
ref: 14037
SCREEN,RADIATOR
€ 55.50
14075
140751102
ref: 14075
CAP-ASSY,RADIATOR
€ 173.50
16160
161601138
ref: 16160
BODY,THERMOSTAT,LWR
161601138
€ 24.50
16160A
161601170
ref: 16160A
BODY,THERMOSTAT,UPP
161601170
€ 49.00
27010
270101239
ref: 27010
SWITCH,SENSOR WATER
270101239
€ 104.50
27010A
270101307
ref: 27010A
SWITCH,FAN
270101307
€ 104.50
32102
321021014
ref: 32102
PIPE
321021014
€ 29.50
32102A
321021473
ref: 32102A
PIPE
321021473
€ 25.50
39060
390601136
ref: 39060
RADIATOR
390601136
€ 649.00
39062
390621667
ref: 39062
HOSE-COOLING,HEAD-THE
390621667
€ 22.00
39062A
390621668
ref: 39062A
HOSE-COOLING,OVERFLOW
390621668
€ 9.00
39062B
390621669
ref: 39062B
HOSE-COOLING,CAP-RESE
€ 9.00
39062C
390621670
ref: 39062C
HOSE-COOLING,THERMO-R
390621670
€ 15.00
39062D
390621673
ref: 39062D
HOSE-COOLING,PUMP-RAD
390621673
€ 17.00
43078
430781151
ref: 43078
RESERVOIR
430781151
€ 39.00
49054
490541055
ref: 49054
THERMOSTAT
490541055
€ 39.50
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
490851067
€ 39.50
49124
491241057
ref: 49124
SPRING-TUBE GUARD
491241057
€ 19.50
59502
595021116
ref: 59502
FAN-ASSY
€ 460.00
92009
920091672
ref: 92009
SCREW,6X35
920091672
€ 2.50
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92027
920271767
ref: 92027
COLLAR
920271767
€ 3.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
920551279
ref: 92055
RING-O,45MM
920551279
€ 4.50
92075
920751680
ref: 92075
DAMPER
920751680
€ 4.00
92143
921431700
ref: 92143
COLLAR
921431700
€ 4.50
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
92170
921701077
ref: 92170
CLAMP,COOLING HOSE
921701077
€ 6.50
92171
921710261
ref: 92171
CLAMP
921710261
€ 13.00
92172
921720004
ref: 92172
SCREW,6X14
921720004
€ 2.00
92191
921911080
ref: 92191
TUBE
€ 2.50
670B
670B2020
ref: 670B
O RING,20MM
670B2020
€ 1.00
