WATER PUMP

EN500B2 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

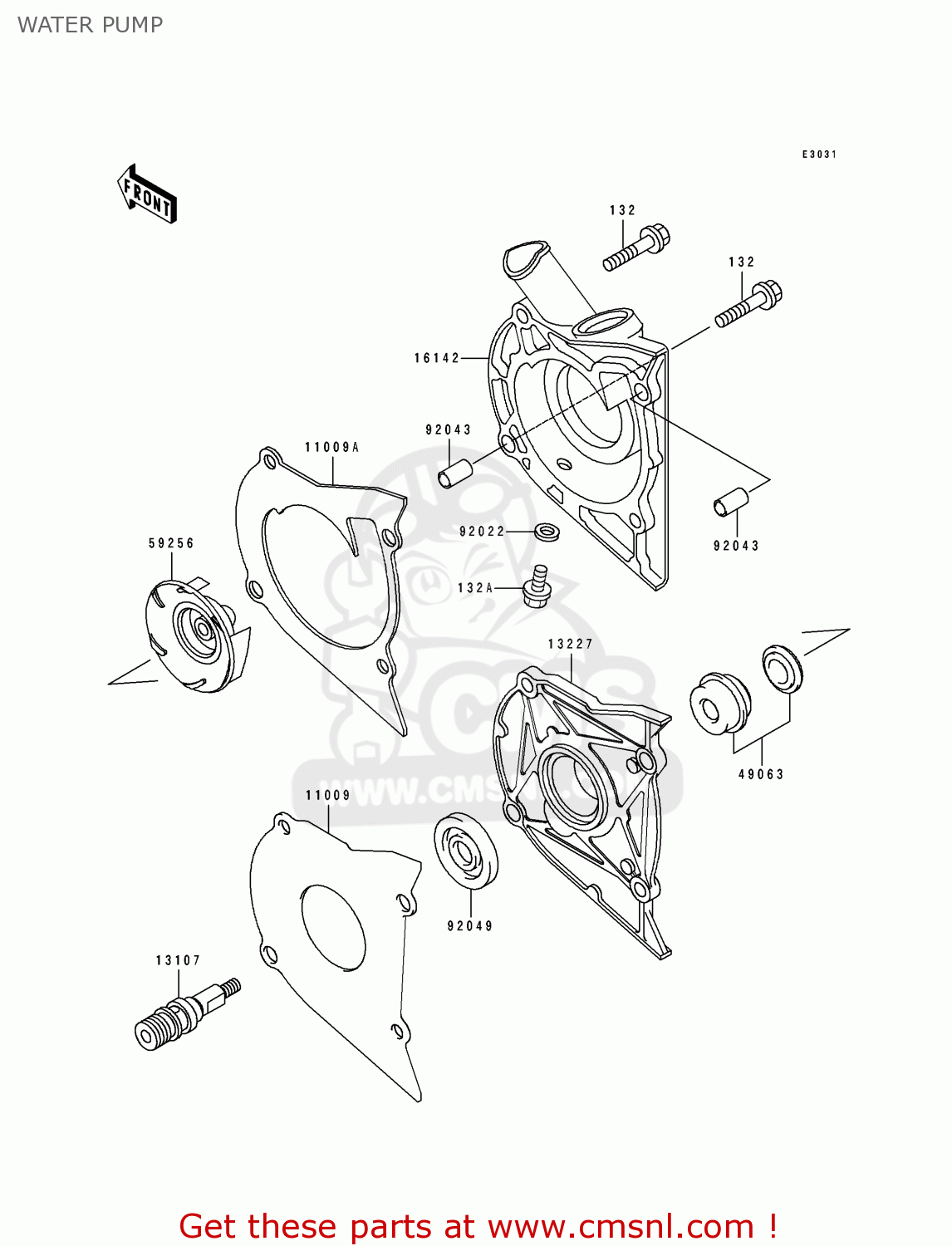

Water pump diagram EN500B2 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

132

132E0635
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

132A

132Y0612
ref: 132A

BOLT-FLANGED-SMALL

€ 1.50

11009

110091838
ref: 11009

GASKET, PUMP HOUSING (NAS)

€ 7.50

11009A

110091839
ref: 11009A

GASKET, PUMP COVER (NAS)

€ 9.50

13107

131071203
ref: 13107

SHAFT,IMPELLER

€ 38.50

13227

132271116
ref: 13227

HOUSING,WATER PUMP

€ 58.00

16142

161421130
ref: 16142

COVER-PUMP

€ 117.00

49063

490631054
ref: 49063

SEAL-MECHANICAL

€ 19.00

59256

592561060
ref: 59256

IMPELLER

€ 24.00

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92049

920491215
ref: 92049

SEAL-OIL

€ 10.00

WATER PUMP

all assemblies
