HANDLEBAR

EN500B2 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

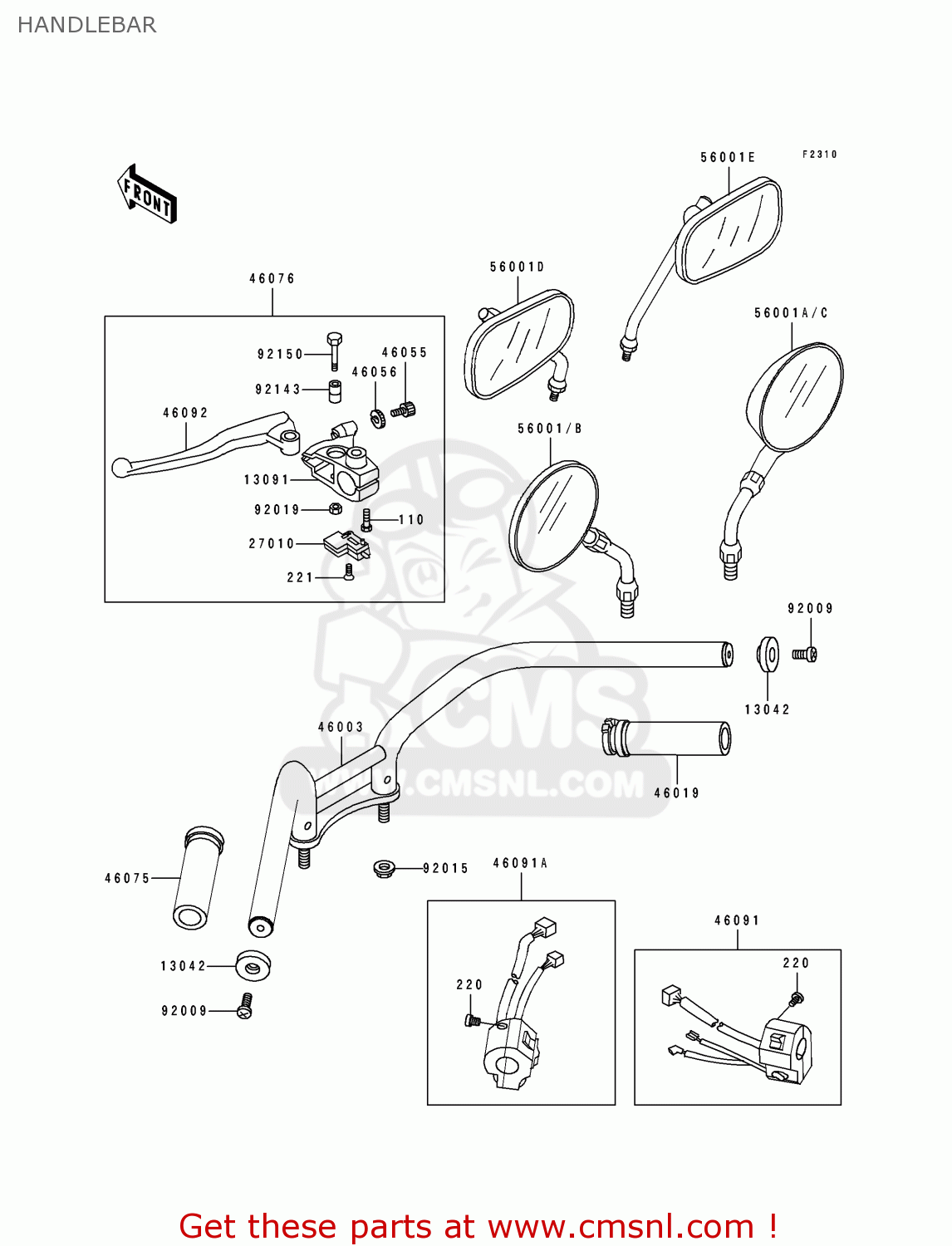

Handlebar diagram EN500B2 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

HANDLEBAR EN500B2 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
HANDLEBAR EN500B2 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
HANDLEBAR EN500B2 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
110
110G0620
ref: 110
BOLT-HEX HEAD,6X20
€ 1.00
220
220E0516
ref: 220
SCREW-PAN-CROS
220E0516
€ 2.50
221
221B0320
ref: 221
SCREW-CSK-CROS,3X20
221B0320
€ 3.50
13042
130421068
ref: 13042
WEIGHT,HANDLE
130421068
€ 19.50
13091
130911671
ref: 13091
HOLDER,CLUTCH LEVER
130911671
€ 41.50
27010
270101268
ref: 27010
SWITCH,CLUTCH
270101268
€ 20.50
46003
460031402
ref: 46003
HANDLE
460031402
€ 97.50
46019
460191065
ref: 46019
GRIP-ASSY,THROTTLE
460191065
€ 33.50
46055
46055003
ref: 46055
SCREW-CABLE ADJUST
46055003
€ 11.50
46056
46056005
ref: 46056
NUT-LOCK
46056005
€ 6.00
46075
460751074
ref: 46075
GRIP,LH
460751074
€ 20.50
46076
460761174
ref: 46076
LEVER-ASSY-GRIP,CLUTC
460761174
€ 99.00
46091
460911516
ref: 46091
HOUSING-ASSY-CONTROL,
460911516
€ 143.50
46091A
460911526
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 166.00
46092
460921164
ref: 46092
LEVER-GRIP,CLUTCH
460921164
€ 22.50
56001
560011264
ref: 56001
FGNRST
MIRROR-ASSY,LH
560011264
€ 75.00
56001A
560011265
ref: 56001A
FGNRST
MIRROR-ASSY,RH
560011265
€ 77.50
56001B
560011269
ref: 56001B
EUFRITNLSDSPUK
MIRROR-ASSY,LH
560011269
€ 71.50
56001C
560011270
ref: 56001C
EUFRITNLSDSPUK
MIRROR-ASSY,RH
560011270
€ 71.50
56001D
560011407
ref: 56001D
ARGR
MIRROR-ASSY,LH
560011407
€ 71.50
56001E
560011408
ref: 56001E
ARGR
MIRROR-ASSY,RH
560011408
€ 71.50
92009
920091484
ref: 92009
SCREW,8X20
920091484
€ 3.50
92015
920151502
ref: 92015
NUT,FLANGED,10MM
920151502
€ 7.00
92019
92019008
ref: 92019
NUT-LOCK,6MM
92019008
€ 3.00
92143
921431351
ref: 92143
COLLAR
921431351
€ 12.50
92150
921501330
ref: 92150
BOLT,LEVER SET
921501330
€ 9.00
