TAILLIGHT(S)

EN500B1 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST

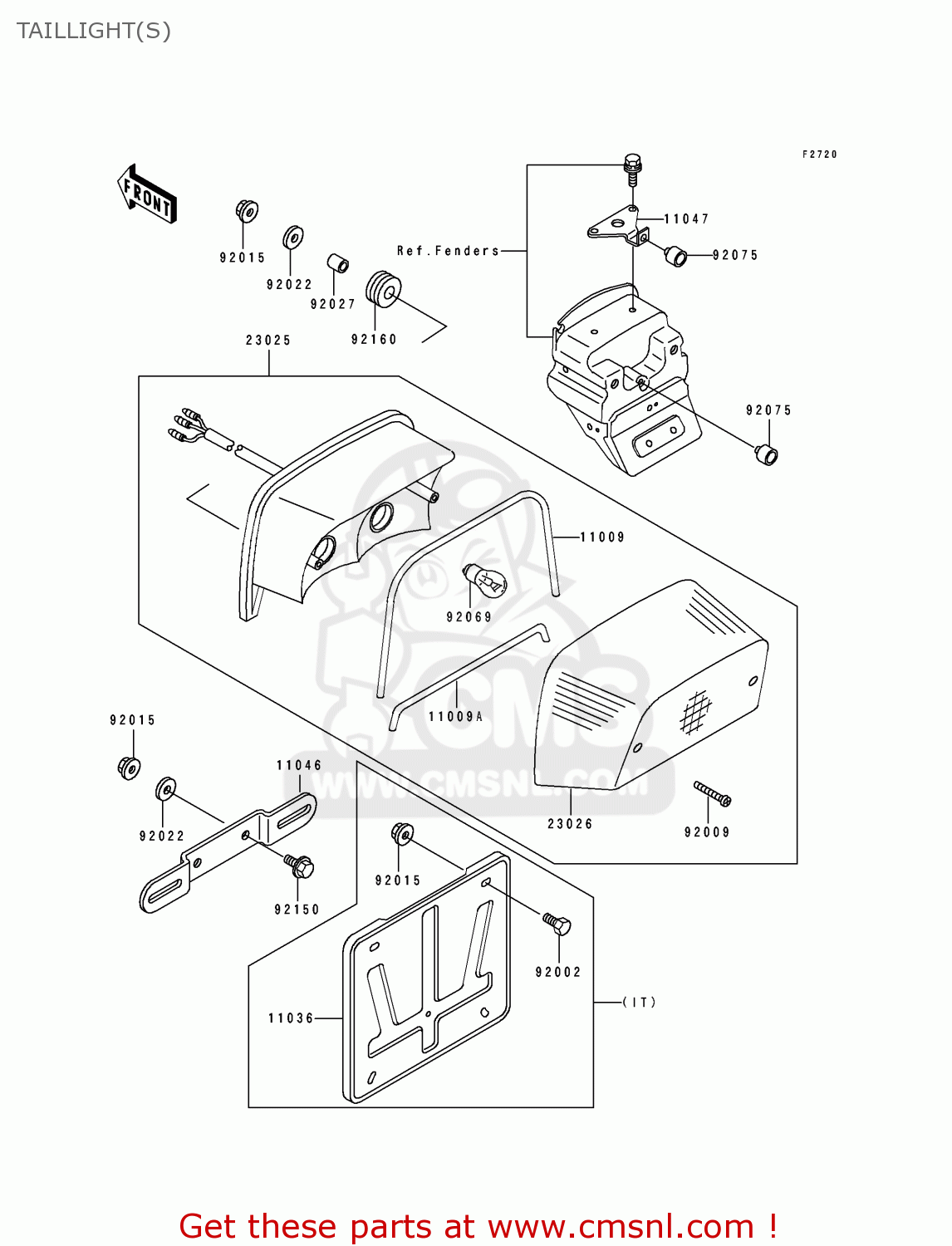

Taillight(s) diagram EN500B1 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

11009

110091811
ref: 11009

GASKET,TAIL LAMP LENS (NAS)

€ 6.00

11009A

110091812
ref: 11009A

GASKET,TAIL LAMP LENS (NAS)

€ 4.50

11036

110361820
ref: 11036
IT

BRACKET-A,LICENSE PLA

€ 13.50

11046

110461109
ref: 11046

BRACKET,LICENSE PLATE

€ 13.00

11047

110471074
ref: 11047

BRACKET,REAR FENDER

€ 11.00

23025

230251204
ref: 23025

LAMP-TAIL

€ 83.00

23026

230261122
ref: 23026

LENS,TAIL LAMP

€ 60.50

92002

920021132
ref: 92002
IT

BOLT,6X12

€ 2.50

92009

920091506
ref: 92009

SCREW,TAPPING,4X30

€ 2.50

92015

920151367
ref: 92015
AREUFGFRGRNLNRSDSPST

NUT,FLANGED,6MM

€ 0.50

92015

920151367
ref: 92015
IT

NUT,FLANGED,6MM

€ 0.50

92022

920221557
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92075

92075035
ref: 92075

DAMPER

€ 3.00

92150

921501909
ref: 92150

BOLT

€ 3.00

92160

921601162
ref: 92160

DAMPER

€ 3.00
