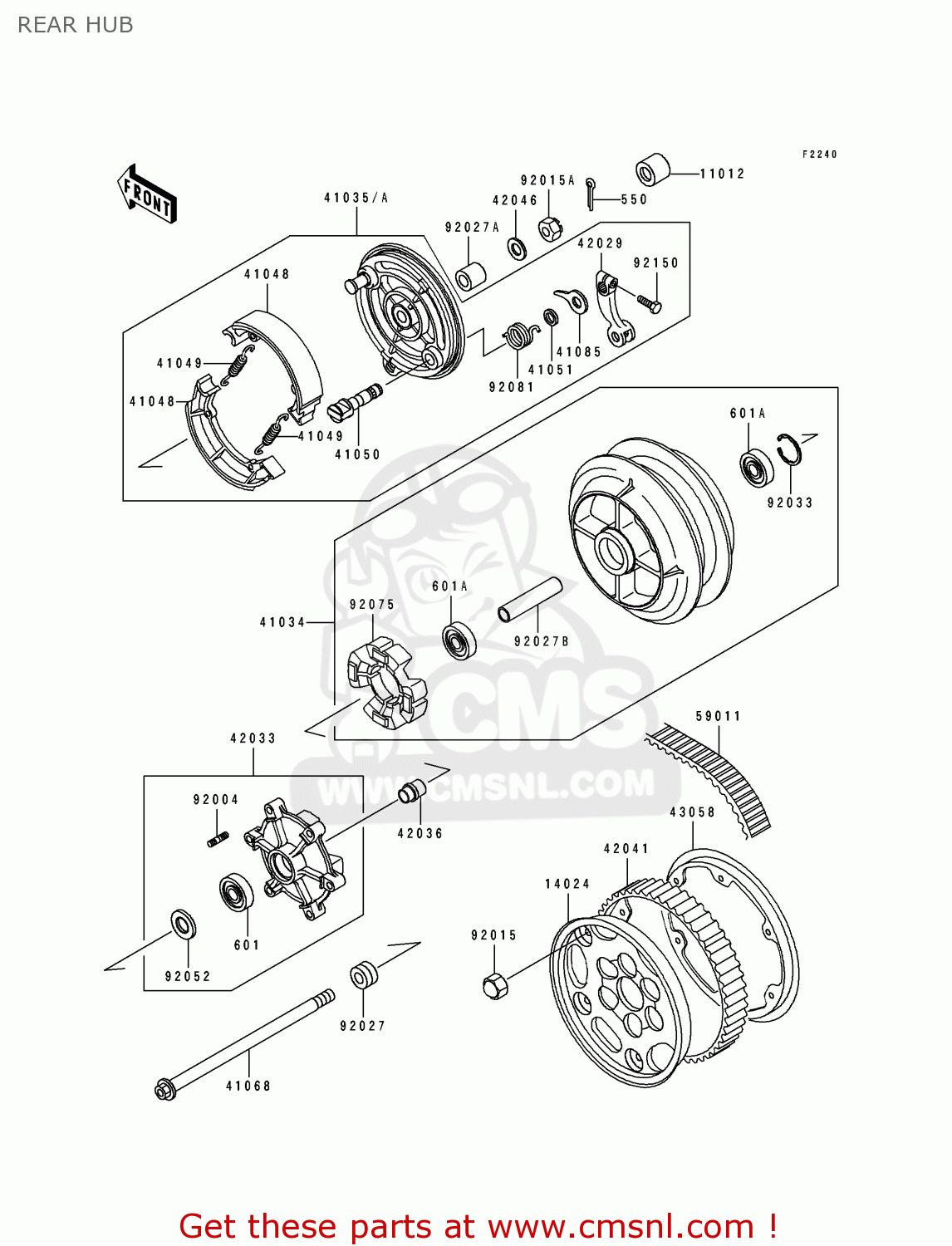

REAR HUB

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6205G
ref: 601

BEARING BALL

€ 14.00

601A

601B6303UU
ref: 601A

BEARING-BALL,6303LLUC

€ 30.50

11012

110121590
ref: 11012
FG

CAP,AXLE NUT

€ 3.50

14024

140241873
ref: 14024

COVER,HUB SPROCKET,OU

€ 36.00

41034

410341238
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 728.50

41035

410351277
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 337.50

41048

410481070
ref: 41048

SHOE-BRAKE (NAS)

€ 26.00

41049

41049012
ref: 41049

SPRING, BRKE SHOE

€ 6.00

41050

41050017
ref: 41050

CAM-BRAKE

€ 25.50

41051

41051003
ref: 41051

DUST SHIELD-BRAKE CAM

€ 2.50

41068

410681205
ref: 41068

AXLE,RR

€ 52.00

41085

410851054
ref: 41085

INDICATOR

€ 9.00

42029

42029039
ref: 42029

LEVER REAR BRAKE CAM

€ 37.00

42033

420331138
ref: 42033

COUPLING-ASSY,RR HUB

€ 206.00

42036

420361146
ref: 42036

SLEEVE,RR HUB,L=33

€ 34.00

42041

420411195
ref: 42041

SPROCKET-HUB,68T

€ 122.00

42046

42046009
ref: 42046

WASHER-SLEEVE

€ 5.00

43058

430581054
ref: 43058

RING,HUB SPROCKET

€ 52.50

59011

590111012
ref: 59011

BELT,DRIVE,137T

€ 537.00

92004

920041145
ref: 92004

STUD,10X27

€ 5.00

92015

920151685
ref: 92015

NUT,CAP,10MM

€ 8.50

92015A

920151951
ref: 92015A

NUT,CASTLE,16MM

€ 8.00

92027

920271368
ref: 92027

COLLAR,REAR AXLE,LH,L

€ 20.00

92027A

920271484
ref: 92027A

COLLAR,REAR AXLE,RH,L

€ 7.50

92027B

920271863
ref: 92027B

COLLAR,17.2X25X101

€ 19.50

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92052

92052006
ref: 92052

OIL SEAL WTC35527

€ 6.50

92075

920751687
ref: 92075

DAMPER,SHOCK,RR HUB

€ 54.50

92081

920811814
ref: 92081

SPRING,BRAKE CAM LEVE

€ 6.50

92150

921501797
ref: 92150

BOLT

€ 3.50
