FRONT FORK

EN500A3 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

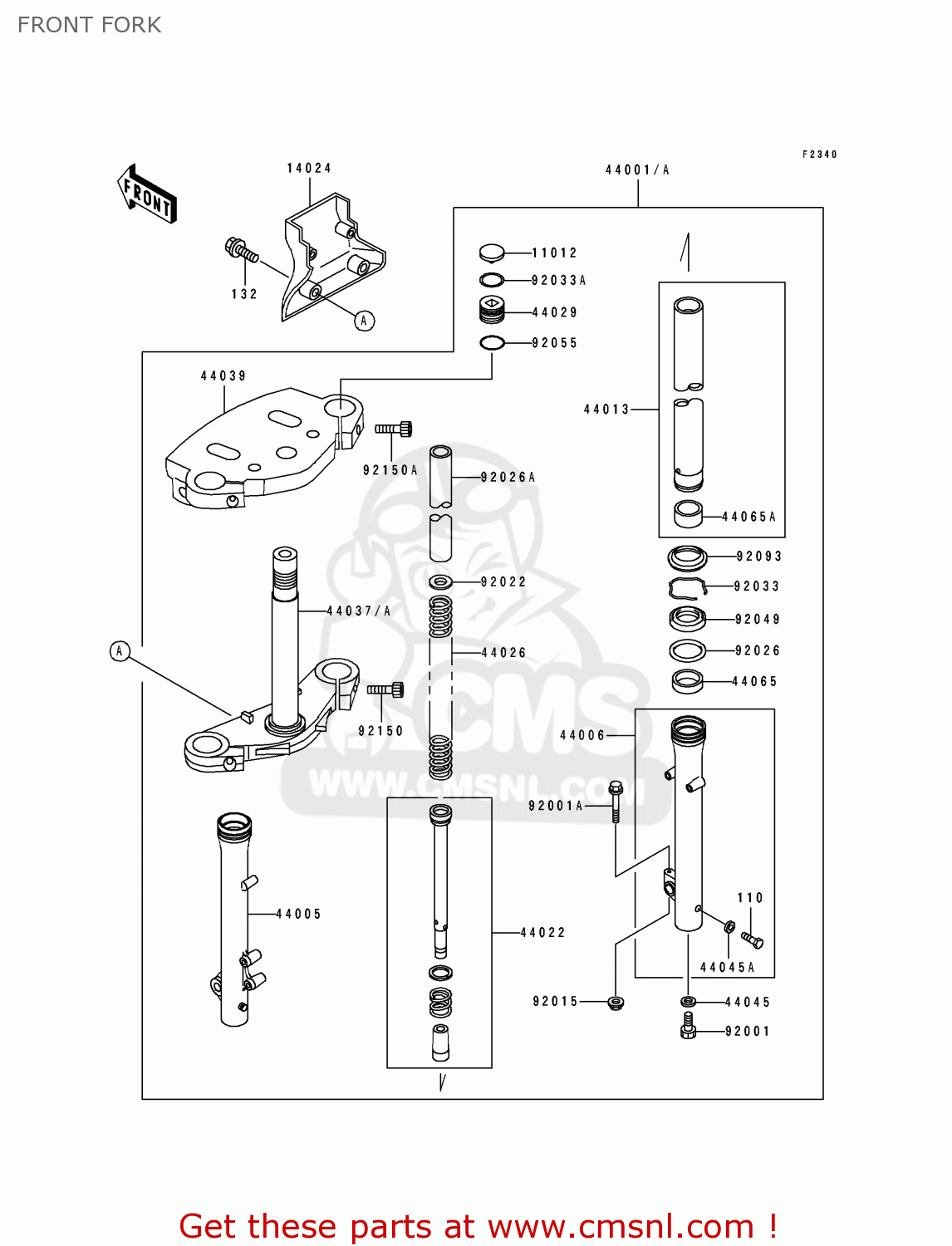

Front fork diagram EN500A3 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

FRONT FORK EN500A3 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
FRONT FORK EN500A3 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
FRONT FORK EN500A3 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
110
110B0608
ref: 110
BOLT-HEX HEAD,6X8
€ 0.50
132
132E0625
ref: 132
BOLT-FLANGED-SMALL
132E0625
€ 3.00
11012
110121689
ref: 11012
CAP,FORK TOP
110121689
€ 21.00
14024
140241900
ref: 14024
COVER
140241900
€ 20.00
44001
440011752
ref: 44001
AREUFRGRITSPSTUK
FORK-FRONT
440011752
€ 2,329.50
44001A
440011758
ref: 44001A
FGNRSD
FORK-FRONT
€ 1,616.00
44005
440051230
ref: 44005
PIPE-LEFT FORK OUTER
€ 282.00
44006
440061230
ref: 44006
PIPE-RIGHT FORK OUTER
€ 277.00
44013
440131286
ref: 44013
PIPE-FORK INNER
440131286
€ 154.00
44022
440221178
ref: 44022
CYLINDER-FORK
440221178
€ 78.50
44026
440261464
ref: 44026
SPRING-FRONT FORK
€ 29.50
44029
440291124
ref: 44029
SEAT-FORK SPRING
440291124
€ 29.50
44037
440371265
ref: 44037
AREUFRGRITSPSTUK
HOLDER-FORK UNDER
€ 195.50
44037A
440371268
ref: 44037A
FGNRSD
HOLDER-FORK UNDER
€ 213.00
44039
440391198
ref: 44039
HOLDER-FORK UPPER
440391198
€ 96.00
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
44045A
44045052
ref: 44045A
GASKET,DRAIN PLUG (NAS)
€ 6.00
44065
440651068
ref: 44065
BUSHING-FRONT FORK
440651068
€ 16.00
44065A
440651069
ref: 44065A
BUSHING-FRONT FORK,IN
440651069
€ 16.50
92001
920011464
ref: 92001
BOLT
920011464
€ 4.00
92001A
920011486
ref: 92001A
BOLT,FLANGED,8X50
920011486
€ 7.50
92015
920151055
ref: 92015
NUT,8M/M
€ 3.00
92022
920221702
ref: 92022
WASHER
920221702
€ 3.00
92026
920261038
ref: 92026
SPACER,FORK
920261038
€ 6.50
92026A
920261392
ref: 92026A
SPACER
€ 14.50
92033
920331193
ref: 92033
RING-SNAP,FORK
920331193
€ 4.00
92033A
920331220
ref: 92033A
RING-SNAP,FORK TOP
920331220
€ 6.00
92049
920491226
ref: 92049
SEAL-OIL,FORK
920491226
€ 14.50
92055
920551359
ref: 92055
RING-O,FORK SPRING SE
920551359
€ 6.00
92093
920931196
ref: 92093
SEAL,FORK
920931196
€ 15.50
92150
921501387
ref: 92150
BOLT,SOCKET,10X25
€ 3.50
92150A
921501407
ref: 92150A
BOLT
€ 2.00
