CARBURETOR

EN500A3 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

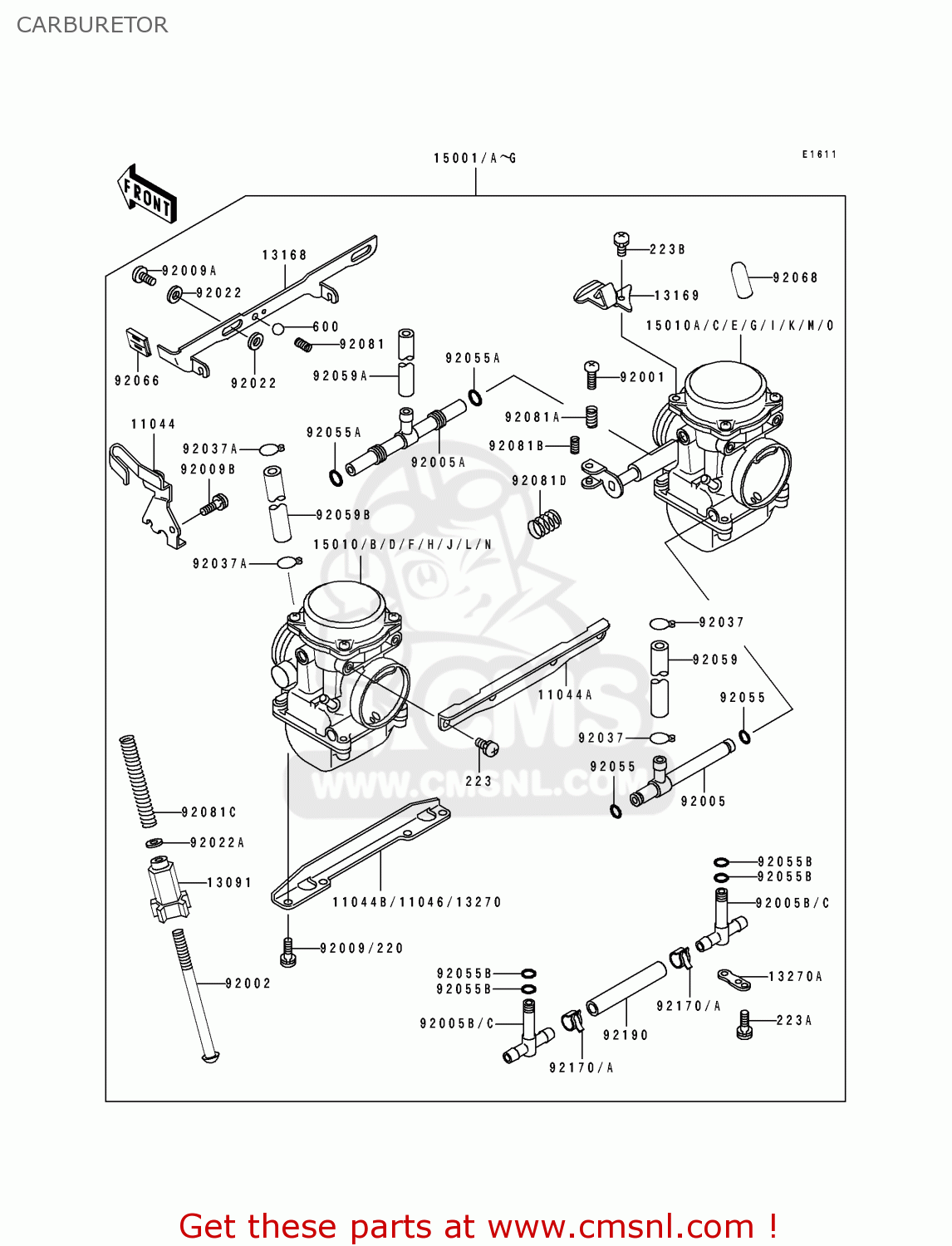

Carburetor diagram EN500A3 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

CARBURETOR EN500A3 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
CARBURETOR EN500A3 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
CARBURETOR EN500A3 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11044
110441312
ref: 11044
BRACKET,THROTTLE CABL
110441312
€ 38.50
11044A
110441313
ref: 11044A
BRACKET,CARBURETOR ST
€ 43.50
11044B
110441314
ref: 11044B
AREUFGFRGRITNRSDSPST
BRACKET,CARBURETOR ST
110441314
€ 45.50
11046
110461743
ref: 11046
UK
BRACKET,CARBURETOR ST
€ 45.00
13091
130911382
ref: 13091
HOLDER,THROTTLE STOP
130911382
€ 11.00
13168
131681444
ref: 13168
LEVER,STARTER
€ 65.00
13169
131691955
ref: 13169
ST
PLATE
€ 17.00
15001
150011573
ref: 15001
EUFRGRITNRSP
CARBURETOR-ASSY
€ 1,104.50
15001A
150011575
ref: 15001A
ST
CARBURETOR-ASSY
€ 1,125.50
15001B
150011589
ref: 15001B
FG
CARBURETOR-ASSY
€ 1,125.50
15001C
150011661
ref: 15001C
SD
CARBURETOR-ASSY
€ 1,125.50
15001D
150011671
ref: 15001D
AR
CARBURETOR-ASSY
150011671
€ 1,071.50
15001E
150011763
ref: 15001E
UK
CARBURETOR-ASSY
€ 1,120.00
15010
150101051
ref: 15010
FG
CARBURETOR,LH
€ 692.00
15010A
150101052
ref: 15010A
FG
CARBURETOR,RH
€ 692.00
15010B
150101053
ref: 15010B
EUFRGRITNRSP
CARBURETOR,LH
€ 679.00
15010C
150101054
ref: 15010C
EUFRGRITNRSP
CARBURETOR,RH
€ 762.50
15010D
150101057
ref: 15010D
ST
CARBURETOR,LH
150101057
€ 659.00
15010E
150101058
ref: 15010E
ST
CARBURETOR,RH
150101058
€ 659.00
15010F
150101059
ref: 15010F
SD
CARBURETOR,LH
€ 692.00
15010G
150101060
ref: 15010G
SD
CARBURETOR,RH
€ 692.00
15010H
150101111
ref: 15010H
AR
CARBURETOR,LH
€ 692.00
15010I
150101112
ref: 15010I
AR
CARBURETOR,RH
€ 692.00
15010J
150101339
ref: 15010J
UK
CARBURETOR,LH
€ 1,076.00
15010K
150101340
ref: 15010K
UK
CARBURETOR,RH
€ 1,076.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92002
920021552
ref: 92002
BOLT,THROTTLE STOP SC
920021552
€ 10.00
92005
920051133
ref: 92005
FITTING
920051133
€ 37.50
92005A
920051134
ref: 92005A
FITTING
920051134
€ 43.00
92005B
920051234
ref: 92005B
UK
FITTING
920051234
€ 8.00
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
920091262
€ 4.00
92009B
920091365
ref: 92009B
SCREW
920091365
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
920371075
€ 2.50
92037A
920371477
ref: 92037A
CLAMP,TUBE
920371477
€ 3.00
92055
920551004
ref: 92055
O RING
920551004
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
920551223
€ 3.50
92055B
920551427
ref: 92055B
UK
RING-O,4.5X1.5
920551427
€ 3.00
92059
920591597
ref: 92059
TUBE,7.3X12.5X180
920591597
€ 14.50
92059A
920591598
ref: 92059A
TUBE,6.5X9.5X260
€ 20.50
92059B
920591599
ref: 92059B
TUBE,5X9X75
€ 16.50
92066
920661157
ref: 92066
PLUG,STARTER LEVER
920661157
€ 10.50
92068
92068006
ref: 92068
EUFGFRGRITNRSDSPUK
RUBBER PLUG
92068006
€ 2.50
92081
920811619
ref: 92081
SPRING,SHAFT STOP
920811619
€ 4.50
223
223C0510
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223B
223D0410
ref: 223B
ST
SCREW-PAN-WS-CROS
223D0410
€ 2.50
600
600A0600
ref: 600
BALL-STEEL,3/16
600A0600
€ 0.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081C
920811875
ref: 92081C
SPRING,THROTTLE STOP
920811875
€ 5.50
92081D
920811876
ref: 92081D
SPRING
€ 6.00
92170A
921701328
ref: 92170A
UK
CLAMP
921701328
€ 4.00
92190
921901039
ref: 92190
UK
TUBE,L=105
€ 8.00
