IGNITION SYSTEM

EN500A1 1990 EUROPE UK FR AR FG IT NR SD SP ST

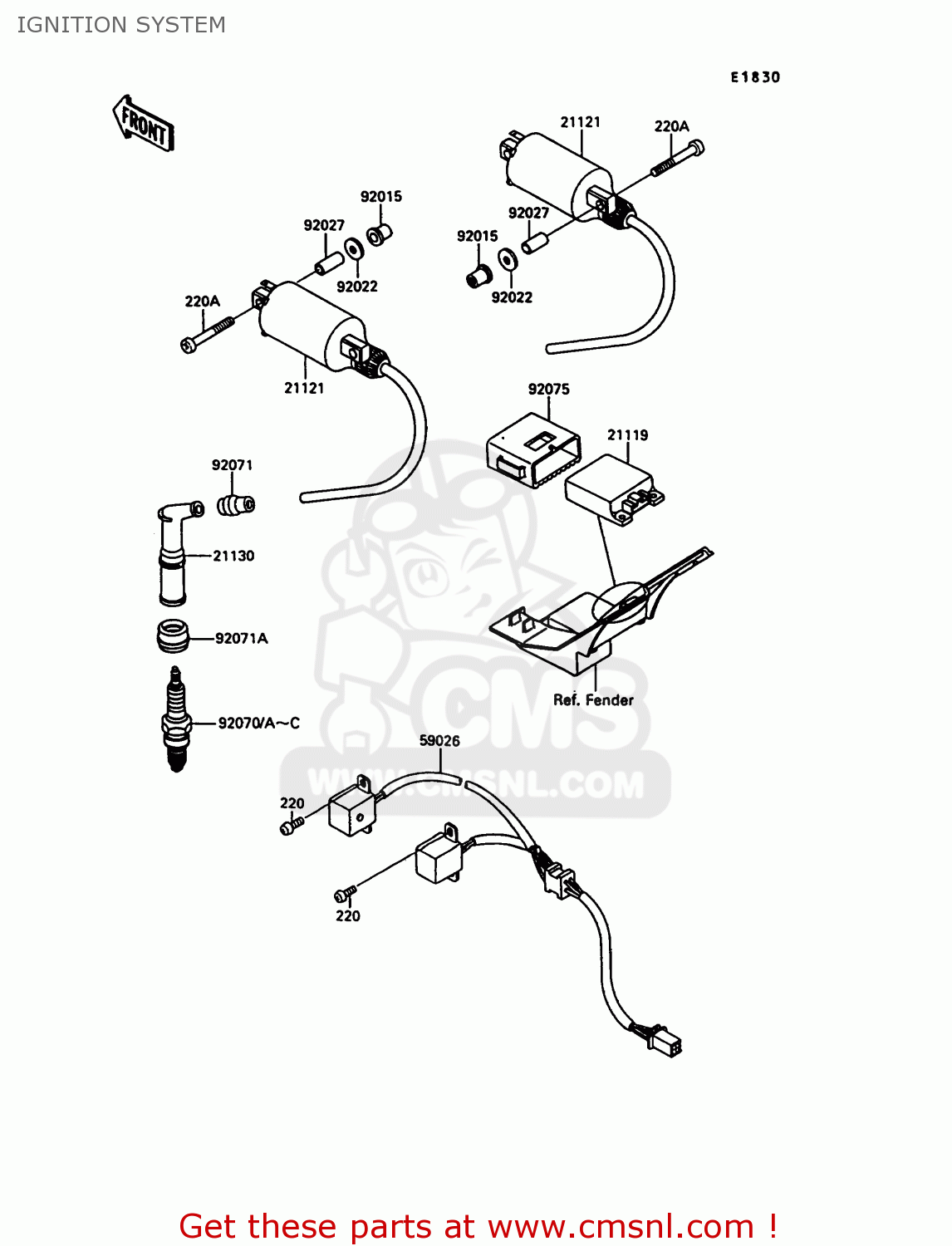

Ignition system diagram EN500A1 1990 EUROPE UK FR AR FG IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

220A

220B0650
ref: 220A

SCREW-PAN HEAD,6X50

€ 2.00

21119

211191219
ref: 21119

IGNITER

€ 479.50

21121

211211189
ref: 21121

COIL-IGNITION

€ 163.50

21130

211301057
ref: 21130

CAP-SPARK PLUG

€ 28.00

59026

590261066
ref: 59026

COIL-PULSING

€ 141.50

92015

920151700A
ref: 92015

NUT

€ 5.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

920271870
ref: 92027

COLLAR,6.8X10X23

€ 4.50

92070

ref: 92070

92070A

920701019
ref: 92070A

DR8ES (NGK SPARKPLUG)

€ 4.00

92070B

ref: 92070B

92070C

920701116
ref: 92070C

DR8ES-L (NGK SPARKPLU

€ 4.00

92071

21131005
ref: 92071

GROMMET,TENSION,ITALY

€ 4.00

92071A

920711146
ref: 92071A

GROMMET,PLUG CAP

€ 6.50

92075

920751504
ref: 92075

DAMPER,IGNITER

€ 23.50
