CARBURETOR PARTS

EN500A1 1990 EUROPE UK FR AR FG IT NR SD SP ST

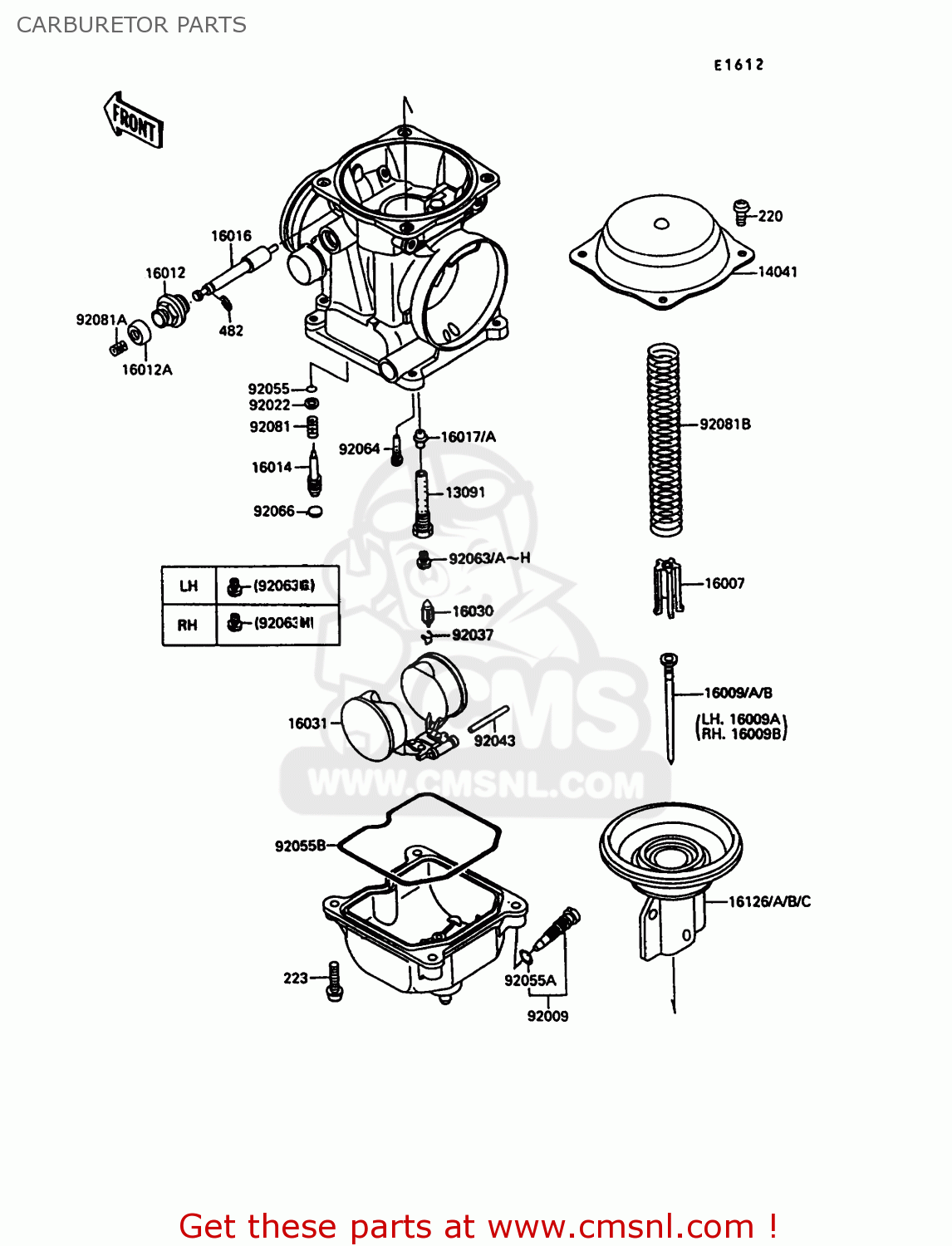

Carburetor parts diagram EN500A1 1990 EUROPE UK FR AR FG IT NR SD SP ST

CARBURETOR PARTS EN500A1 1990 EUROPE UK FR AR FG IT NR SD SP ST
CARBURETOR PARTS EN500A1 1990 EUROPE UK FR AR FG IT NR SD SP ST
CARBURETOR PARTS EN500A1 1990 EUROPE UK FR AR FG IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
13091
130911425
ref: 13091
HOLDER,NEEDLE JET
130911425
€ 19.50
14041
140411065
ref: 14041
COVER-COMP,MIXING CHA
140411065
€ 47.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091615
ref: 16009
AR
NEEDLE-JET,N60Q
160091615
€ 19.00
16009
160091615
ref: 16009
ST
NEEDLE-JET,N60Q
160091615
€ 19.00
16009A
160091616
ref: 16009A
EUFGFRITNRSDSPUK
NEEDLE-JET,N60T
€ 19.00
16009B
160091617
ref: 16009B
AREUFGFRITNRSDSPUK
NEEDLE-JET,N60S
€ 20.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
160141054
€ 15.50
16016
160161077
ref: 16016
PLUNGER,STARTER
€ 30.50
16017
160171059
ref: 16017
ST
JET-NEEDLE
160171059
€ 33.00
16017A
160171208
ref: 16017A
AREUFGFRITNRSDSPUK
JET-NEEDLE,#6
€ 37.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311056
ref: 16031
FLOAT
160311056
€ 39.00
16126
161261173
ref: 16126
EUFRITNRSPUK
VALVE,VACUUM
161261173
€ 159.50
16126A
161261190
ref: 16126A
SD
VALVE,VACUUM
€ 119.00
16126B
161261240
ref: 16126B
FG
VALVE,VACUUM
161261240
€ 82.50
16126C
161261251
ref: 16126C
ARST
VALVE,VACUUM
€ 128.50
92009
920091095
ref: 92009
SCREW,DRAIN
920091095
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92037
160141054
ref: 92037
SCREW-PILOT AIR
160141054
€ 15.50
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92063
920631008
ref: 92063
AREUFGFRITNRSDSPUK
JET-MAIN,#100
920631008
€ 9.00
92063A
920631009
ref: 92063A
AREUFGFRITNRSDSPUK
JET-MAIN,#105
920631009
€ 10.00
220
220B0408
ref: 220
ST
SCREW-PAN-CROS
220B0408
€ 0.50
220
220B0408
ref: 220
EUFGFRITNRSDSPUK
SCREW-PAN-CROS
220B0408
€ 0.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
223C0416
€ 2.50
482
482L4000
ref: 482
CIRCLIP-TYPE-E,4MM
482L4000
€ 0.50
92063B
920631071
ref: 92063B
ST
JET-MAIN,#118
920631071
€ 9.50
92063C
920631072
ref: 92063C
ST
MAIN JET 2ND #120
920631072
€ 9.50
92063D
920631114
ref: 92063D
JET-MAIN,#110
920631114
€ 9.50
92063E
920631115
ref: 92063E
AREUFGFRITNRSDSPUK
JET-MAIN,#102
920631115
€ 10.00
92063F
920631116
ref: 92063F
JET-MAIN,#108
920631116
€ 9.50
92063G
920631117
ref: 92063G
ST
JET-MAIN,#112
920631117
€ 9.50
92063H
920631118
ref: 92063H
ST
JET-MAIN,#115
920631118
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 11.50
92066
920661051
ref: 92066
ST
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
92081A
920811618
ref: 92081A
SPRING,STARTER PLUNGE
920811618
€ 4.50
92081B
920811874
ref: 92081B
SPRING,VACUUM VALVE
920811874
€ 17.50
