Genuine EN Kawasaki Parts delivered quickly!


HANDLEBAR

EN500A1 1990 EUROPE UK FR AR FG IT NR SD SP ST

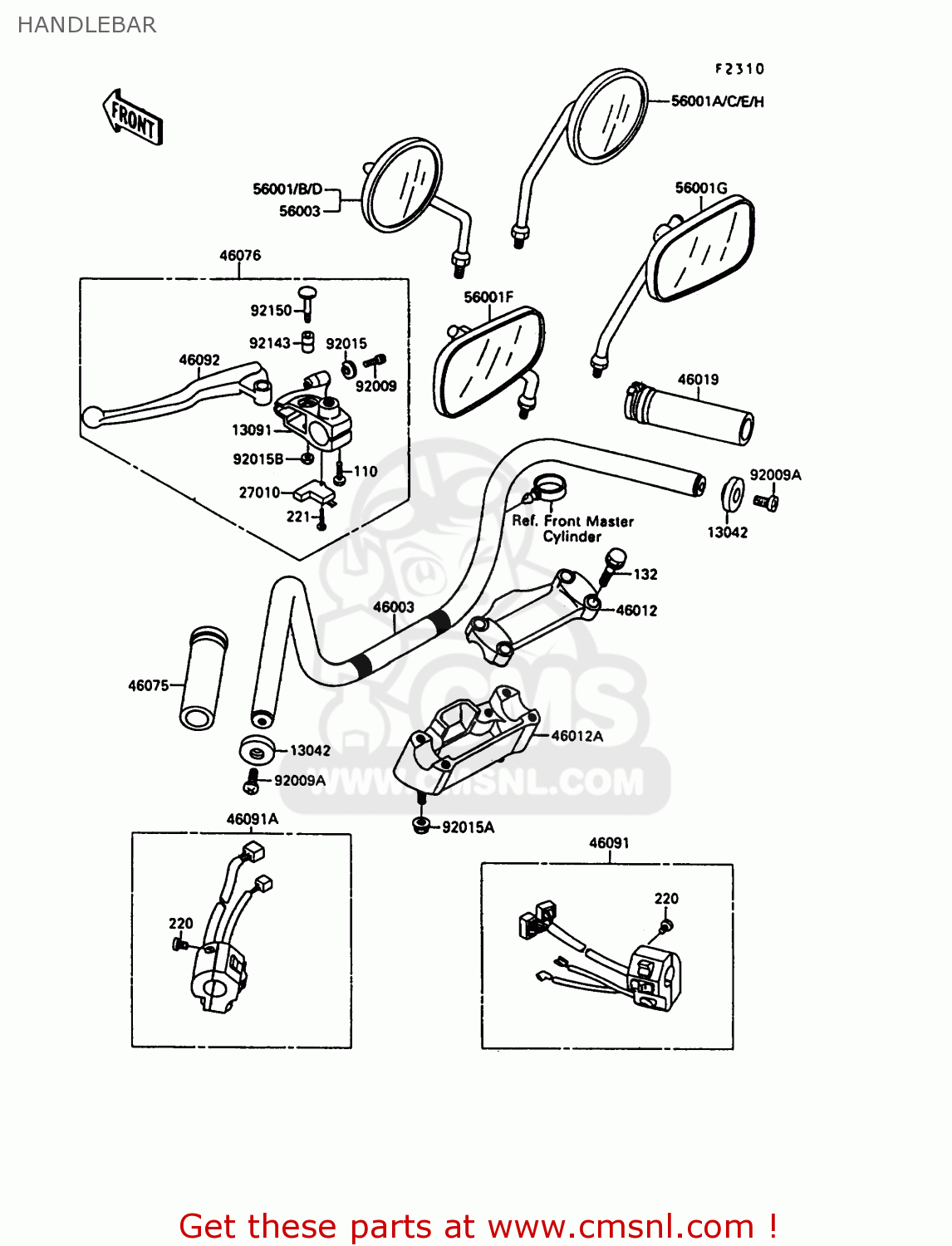

Handlebar diagram EN500A1 1990 EUROPE UK FR AR FG IT NR SD SP ST

HANDLEBAR EN500A1 1990 EUROPE UK FR AR FG IT NR SD SP ST
HANDLEBAR EN500A1 1990 EUROPE UK FR AR FG IT NR SD SP ST
HANDLEBAR EN500A1 1990 EUROPE UK FR AR FG IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
110
110G0620
ref: 110
BOLT-HEX HEAD,6X20
€ 1.00
132
132E0835
ref: 132
BOLT-FLANGED-SMALL
132E0835
€ 3.00
13042
130421068
ref: 13042
WEIGHT,HANDLE
130421068
€ 19.50
13091
130911671
ref: 13091
HOLDER,CLUTCH LEVER
130911671
€ 41.50
27010
270101268
ref: 27010
SWITCH,CLUTCH
270101268
€ 20.50
46003
460031315
ref: 46003
HANDLE
€ 88.50
46012
460121217
ref: 46012
HOLDER-HANDLE,UPP
460121217
€ 15.50
46012A
460121218
ref: 46012A
HOLDER-HANDLE,LWR
€ 71.50
46019
460191065
ref: 46019
GRIP-ASSY,THROTTLE
460191065
€ 33.50
46075
460751074
ref: 46075
GRIP,LH
460751074
€ 20.50
46076
460761174
ref: 46076
LEVER-ASSY-GRIP,CLUTC
460761174
€ 99.00
46091
460911516
ref: 46091
HOUSING-ASSY-CONTROL,
460911516
€ 143.50
46091A
460911526
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 166.00
46092
460921164
ref: 46092
LEVER-GRIP,CLUTCH
460921164
€ 22.50
56001
560011007
ref: 56001
ST
MIRROR-ASSY,LH
560011007
€ 36.50
56001A
560011008
ref: 56001A
ST
MIRROR-ASSY,RH
560011008
€ 36.50
56001B
560011021
ref: 56001B
EUITSDSPUK
MIRROR-ASSY,LH
560011021
€ 62.50
56001C
560011022
ref: 56001C
EUITSDSPUK
MIRROR-ASSY,RH
560011022
€ 58.50
56001D
560011023
ref: 56001D
FGNR
MIRROR-ASSY,LH
560011023
€ 78.50
56001E
560011024
ref: 56001E
FGNR
MIRROR-ASSY,RH
560011024
€ 71.50
56001F
560011407
ref: 56001F
AR
MIRROR-ASSY,LH
560011407
€ 71.50
56001G
560011408
ref: 56001G
AR
MIRROR-ASSY,RH
560011408
€ 71.50
56001H
56002022
ref: 56001H
FR
MIRROR-ASSY,RH
56002022
€ 64.00
56003
56003014
ref: 56003
FR
MIRROR-ASSY,LH
56003014
€ 43.50
92009
46055003
ref: 92009
SCREW-CABLE ADJUST
46055003
€ 11.50
92009A
920091484
ref: 92009A
SCREW,8X20
920091484
€ 3.50
92015
46056005
ref: 92015
NUT-LOCK
46056005
€ 6.00
92015A
920151720
ref: 92015A
NUT,10MM
920151720
€ 3.50
92015B
92019008
ref: 92015B
NUT-LOCK,6MM
92019008
€ 3.00
92143
921431351
ref: 92143
COLLAR
921431351
€ 12.50
92150
921501330
ref: 92150
BOLT,LEVER SET
921501330
€ 9.00
220
220E0516
ref: 220
SCREW-PAN-CROS
220E0516
€ 2.50
221
221B0320
ref: 221
SCREW-CSK-CROS,3X20
221B0320
€ 3.50
