TAILLIGHT(S)

EL250F2 ELIMINATOR 1996 FRANCE NL AR FG IT

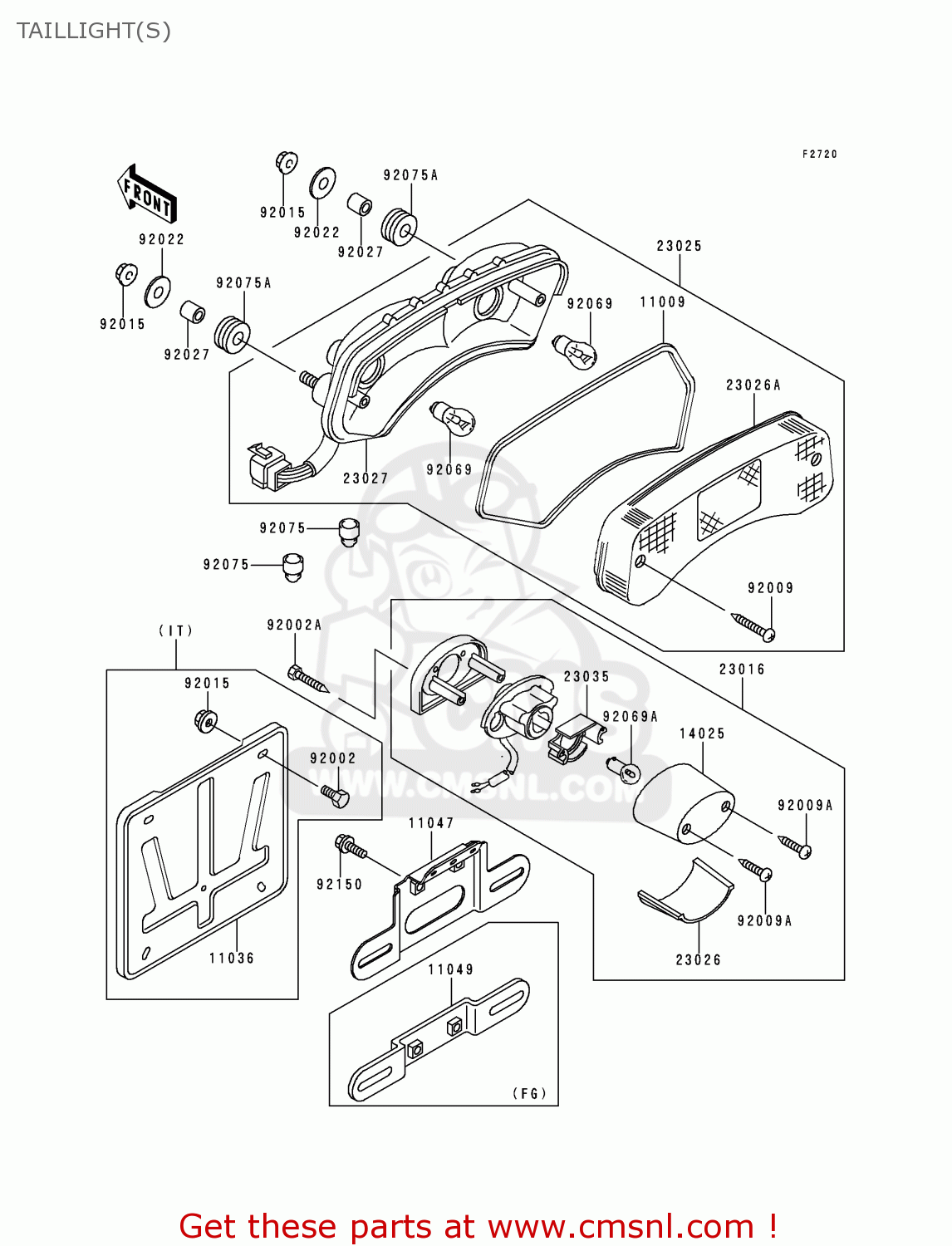

Taillight(s) diagram EL250F2 ELIMINATOR 1996 FRANCE NL AR FG IT

TAILLIGHT(S) EL250F2 ELIMINATOR 1996 FRANCE NL AR FG IT
TAILLIGHT(S) EL250F2 ELIMINATOR 1996 FRANCE NL AR FG IT
TAILLIGHT(S) EL250F2 ELIMINATOR 1996 FRANCE NL AR FG IT
prices are in EUR
ref
part #
description
quantity
11009
110091524
ref: 11009
GASKET,TAIL LAMP LENS (NAS)
110091524
€ 4.00
11036
110361820
ref: 11036
IT
BRACKET-A,LICENSE PLA
110361820
€ 13.50
11047
110471506
ref: 11047
ARFRITNL
BRACKET,LICENSE PLATE
€ 17.50
11049
110491194
ref: 11049
FG
BRACKET,LICENSE
110491194
€ 12.00
14025
140251725
ref: 14025
COVER,LICENSE LAMP
140251725
€ 12.50
23016
230161072
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 47.00
23025
230251152
ref: 23025
LAMP-TAIL
230251152
€ 159.50
23026
230261064
ref: 23026
LENS,LICENSE LAMP
230261064
€ 24.00
23026A
230261082
ref: 23026A
LENS,TAIL LAMP
230261082
€ 25.50
23027
230271077
ref: 23027
BODY-COMP-TAIL LAMP
€ 71.50
23035
230351066
ref: 23035
REFLECTOR-LAMP,LICENS
230351066
€ 13.00
92002
920021132
ref: 92002
IT
BOLT,6X12
€ 2.50
92002A
920021472
ref: 92002A
BOLT,TAPPING,5X16
€ 2.00
92009
920091056
ref: 92009
SCREW,TAPPING
920091056
€ 2.50
92009A
920091378
ref: 92009A
SCREW,TAPPING,4X20
920091378
€ 2.50
92015
920151367
ref: 92015
ARFGFRNL
NUT,FLANGED,6MM
920151367
€ 0.50
92015
920151367
ref: 92015
IT
NUT,FLANGED,6MM
920151367
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
920221557
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92069
92069063
ref: 92069
BULB 12V 21/5W
92069063
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
920691055
€ 4.00
92075
92075035
ref: 92075
DAMPER
92075035
€ 3.00
92075A
920751690
ref: 92075A
DAMPER,10X24X12
920751690
€ 3.00
92150
921501909
ref: 92150
BOLT
921501909
€ 3.00
