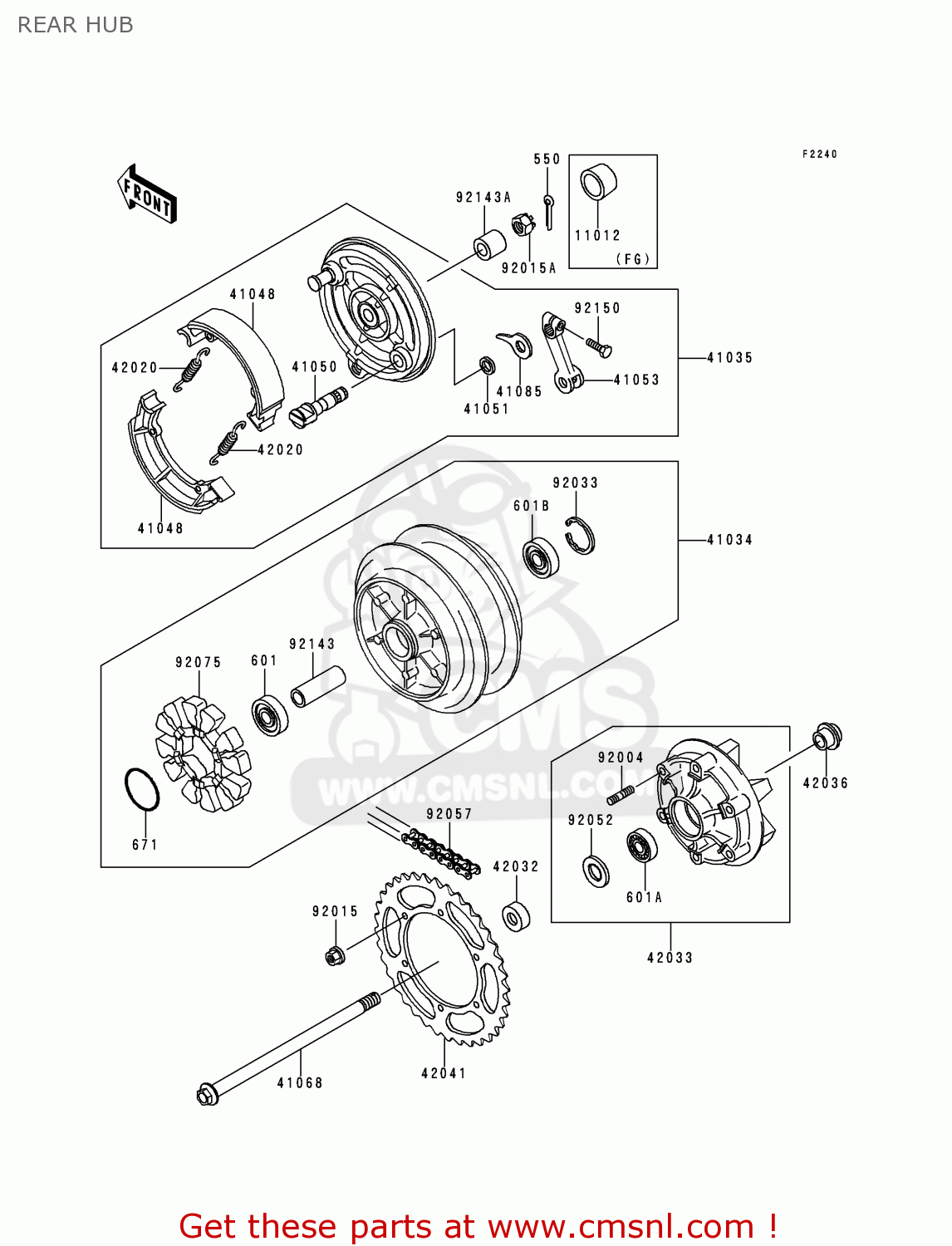

REAR HUB

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6203UU
ref: 601

BEARING-BALL,#6203UUC

€ 25.00

601A

601B6205G
ref: 601A

BEARING BALL

€ 14.00

601B

601B6303UU
ref: 601B

BEARING-BALL,6303LLUC

€ 30.50

671

671B2550
ref: 671

O RING,50MM

€ 1.50

11012

110121592
ref: 11012
FG

CAP,AXLE NUT

€ 5.00

41034

410341189
ref: 41034

DRUM-ASSY,RR BRAKE

€ 887.00

41035

410351451
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 366.00

41048

410481069
ref: 41048

SHOE-BRAKE (NAS)

€ 26.00

41050

410501065
ref: 41050

CAM-BRAKE

€ 29.00

41051

41051003
ref: 41051

DUST SHIELD-BRAKE CAM

€ 2.50

41053

410531068
ref: 41053

LEVER-BRAKE CAM

€ 49.00

41068

410681192
ref: 41068

AXLE,RR

€ 65.50

41085

410851060
ref: 41085

INDICATOR

€ 9.00

42020

42020004
ref: 42020

SPRING-BRAKE SHOE

€ 5.50

42032

42032068
ref: 42032

COLLAR,17X35X17.5

€ 18.00

42033

420331107
ref: 42033

COUPLING-ASSY,RR HUB

€ 222.50

42036

420361055
ref: 42036

SLEEVE,L=25

€ 19.00

42041

420411288
ref: 42041

SPROCKET-HUB,40T

€ 29.50

92004

920041111
ref: 92004

STUD,10X21

€ 6.50

92015

920151720
ref: 92015

NUT,10MM

€ 3.50

92015A

920151947
ref: 92015A

NUT

€ 6.50

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92052

92052006
ref: 92052

OIL SEAL WTC35527

€ 6.50

92057

920571366
ref: 92057

CHAIN,DRIVE,EK520SR-O

€ 123.50

92075

920751436
ref: 92075

DAMPER,RR HUB SHOCK

€ 65.00

92143

921431124
ref: 92143

COLLAR,17.2X25X105

€ 14.00

92143A

921431125
ref: 92143A

COLLAR,17.2X30X23.5

€ 7.50

92150

921501797
ref: 92150

BOLT

€ 3.50
