RADIATOR

EL250F2 ELIMINATOR 1996 FRANCE NL AR FG IT

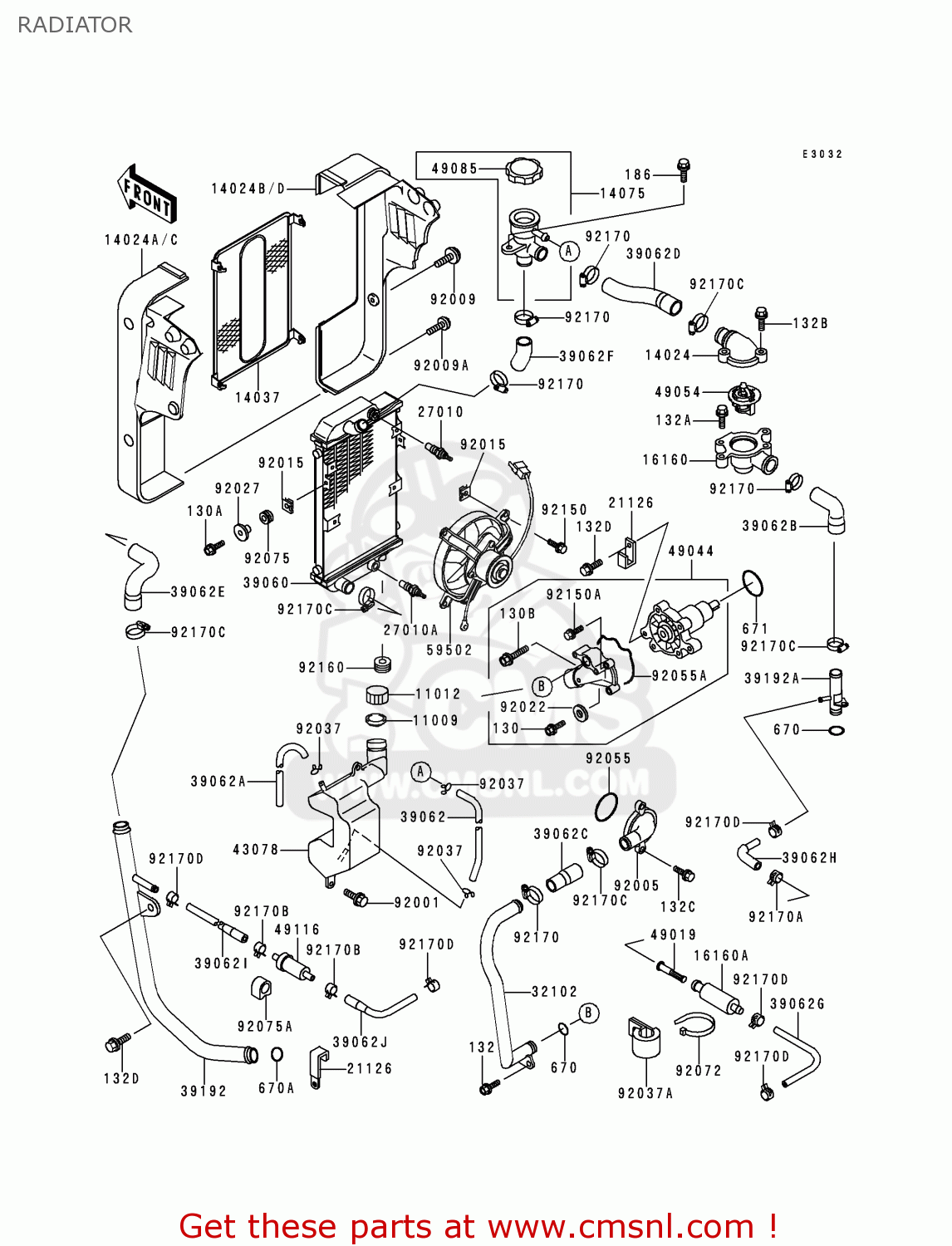

Radiator diagram EL250F2 ELIMINATOR 1996 FRANCE NL AR FG IT

RADIATOR EL250F2 ELIMINATOR 1996 FRANCE NL AR FG IT
RADIATOR EL250F2 ELIMINATOR 1996 FRANCE NL AR FG IT
RADIATOR EL250F2 ELIMINATOR 1996 FRANCE NL AR FG IT
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14024
140241232
ref: 14024
COVER,THERMOSTAT UPP
140241232
€ 43.00
14024A
140241750
ref: 14024A
FGFRITNL
COVER,RADIATOR,LH
€ 26.50
14024B
140241751
ref: 14024B
FGFRITNL
COVER,RADIATOR,RH
140241751
€ 25.00
14024C
140241755
ref: 14024C
AR
COVER,RADIATOR,LH
€ 20.00
14024D
140241756
ref: 14024D
AR
COVER,RADIATOR,RH
140241756
€ 10.00
14037
140371234
ref: 14037
SCREEN,RADIATOR
140371234
€ 42.00
14075
140751072
ref: 14075
CAP-ASSY,RADIATOR
€ 124.00
16160
161601139
ref: 16160
BODY,THERMOSTAT
€ 21.00
16160A
161601151
ref: 16160A
BODY,FILTER
161601151
€ 6.50
21126
21126008
ref: 21126
CLAMP,WIRING HARNESS
21126008
€ 3.00
27010
270101173
ref: 27010
SWITCH
270101173
€ 84.00
27010A
270101304
ref: 27010A
SWITCH,THERMOSTAT
270101304
€ 63.00
32102
321021624
ref: 32102
PIPE,PUMP-CYLINDER
321021624
€ 41.50
39060
390601142
ref: 39060
RADIATOR
€ 698.50
39062
390621069
ref: 39062
HOSE-COOLING,5.5X10.5
€ 25.00
39062A
390621110
ref: 39062A
HOSE-COOLING,5.5X10.5
€ 25.00
39062B
390621170
ref: 39062B
HOSE-COOLING,HEAD-THE
390621170
€ 14.00
39062C
390621246
ref: 39062C
HOSE-COOLING,PUMP-CYL
390621246
€ 7.50
39062D
390621247
ref: 39062D
HOSE-COOLING,THERMOST
€ 12.50
39062E
390621248
ref: 39062E
HOSE-COOLING,RADIATOR
390621248
€ 14.50
39062F
390621249
ref: 39062F
HOSE-COOLING,CAP-RADI
€ 7.00
39062G
390621293
ref: 39062G
HOSE-COOLING
€ 5.50
39062H
390621314
ref: 39062H
HOSE-COOLING
390621314
€ 7.50
39062I
390621420
ref: 39062I
HOSE-COOLING,VALVE-PU
€ 6.00
39062J
390621571
ref: 39062J
HOSE-COOLING
390621571
€ 6.00
39192
391921023
ref: 39192
PIPE-WATER
€ 33.00
39192A
391921038
ref: 39192A
PIPE-WATER
391921038
€ 18.50
43078
430781088
ref: 43078
RESERVOIR
430781088
€ 24.50
49019
490191068
ref: 49019
FILTER-FUEL
490191068
€ 4.00
49044
490441064
ref: 49044
PUMP-WATER
490441064
€ 244.00
49054
490541058
ref: 49054
THERMOSTAT
490541058
€ 41.00
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
490851067
€ 39.50
49116
491161081
ref: 49116
VALVE-ASSY
491161081
€ 85.00
59502
595021119
ref: 59502
FAN-ASSY
€ 443.00
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
130A
130J0620
ref: 130A
BOLT-FLANGED,6X20
130J0620
€ 2.50
130B
130J0635
ref: 130B
BOLT-FLANGED,6X35
130J0635
€ 3.00
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
132E0612
€ 3.50
132A
132G0612
ref: 132A
BOLT-FLANGED-SMALL
132G0612
€ 1.50
132B
132G0625
ref: 132B
BOLT-FLANGED-SMALL
132G0625
€ 3.00
132C
132J0616
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
132D
132J0630
ref: 132D
BOLT-FLANGED-SMALL
132J0630
€ 2.50
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
670B2018
€ 1.00
671
671D2535
ref: 671
O RING
671D2535
€ 4.00
92001
920011516
ref: 92001
BOLT,W/WASHER,6X12
920011516
€ 3.00
92005
920051145
ref: 92005
FITTING,CYLINDER
920051145
€ 22.50
92009
920091402
ref: 92009
SCREW,6X10
920091402
€ 1.50
92009A
920091488
ref: 92009A
SCREW
920091488
€ 3.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
920221976
€ 4.00
92027
920271767
ref: 92027
COLLAR
920271767
€ 3.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92037A
920371608
ref: 92037A
CLAMP
920371608
€ 5.50
92055
92055091
ref: 92055
0 RING
92055091
€ 4.00
92055A
920551432
ref: 92055A
RING-O
920551432
€ 7.50
92072
92072031
ref: 92072
BAND,MIDDLE
92072031
€ 3.00
92075
920751680
ref: 92075
DAMPER
920751680
€ 4.00
92075A
920751728
ref: 92075A
DAMPER,CARRIER
920751728
€ 5.00
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92150A
921501562
ref: 92150A
BOLT, FLANGED 6X18
€ 2.50
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
92170
921701033
ref: 92170
CLAMP,COOLING HOSE
921701033
€ 10.50
92170A
921701118
ref: 92170A
CLAMP
921701118
€ 5.00
92170B
921701201
ref: 92170B
CLAMP
921701201
€ 3.50
92170C
921701286
ref: 92170C
CLAMP
921701286
€ 13.00
92170D
921702042
ref: 92170D
CLAMP
921702042
€ 1.00
