HANDLEBAR
EL250B2 ELIMINATOR 1988 FG

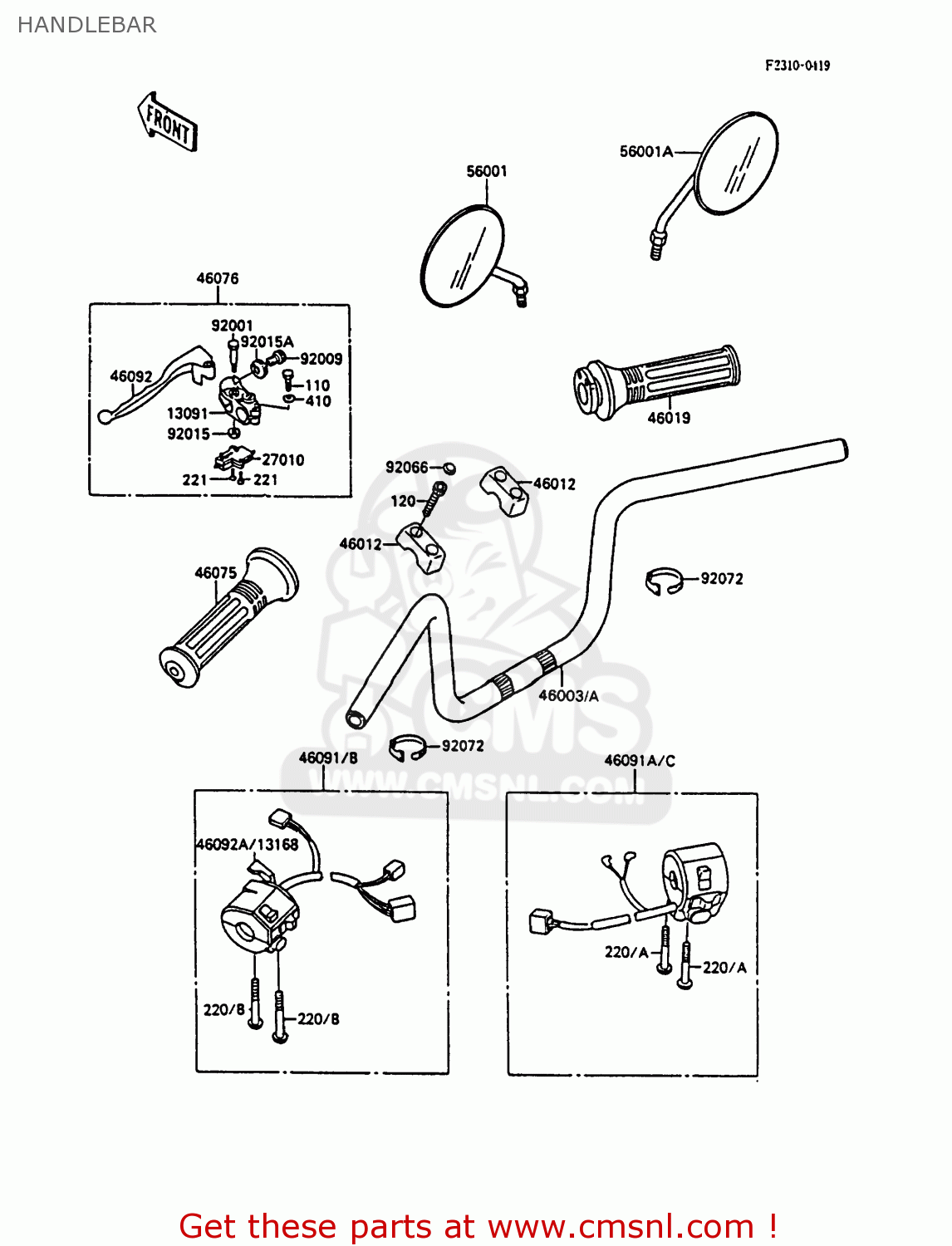

Handlebar diagram EL250B2 ELIMINATOR 1988 FG
HANDLEBAR EL250B2 ELIMINATOR 1988 FG
×
prices are in EUR
ref
part #
description
quantity
110
110C0622
ref: 110
BOLT,6X22,BLACK
€ 3.00
120
120S0830
ref: 120
BOLT-SOCKET,8X30,BLAC
€ 3.00
220A
220C0540
ref: 220A
SCREW-PAN-CROS
€ 1.50
220B
220C0545
ref: 220B
SCREW-PAN-CROS
€ 1.50
221
221C0316
ref: 221
SCREW-CSK-CROS
€ 2.50
410
410F0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
13091
130911272
ref: 13091
HOLDER,CLUTCH LEVER
€ 33.00
27010
270101094
ref: 27010
SWITCH,CLUTCH
€ 20.50
46003
460031257
ref: 46003
HANDLE
€ 72.50
46012
460121137
ref: 46012
HOLDER-HANDLE
€ 21.00
46019
460191061
ref: 46019
GRIP-ASSY,THROTTLE
€ 29.50
46075
460751060
ref: 46075
GRIP,LH
€ 10.00
46076
460761105
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 61.00
46091
460911409
ref: 46091
HOUSING-ASSY-CONTROL,
€ 143.50
46091A
460911453
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 97.00
46092
460921103
ref: 46092
LEVER-GRIP,CLUTCH
€ 14.00
46092A
460921124
ref: 46092A
LEVER-GRIP,CHOKE
€ 4.50
56001
560011023
ref: 56001
MIRROR-ASSY,LH
€ 78.50
56001A
560011024
ref: 56001A
MIRROR-ASSY,RH
€ 71.50
92001
920011548
ref: 92001
BOLT,CLUTCH LEVER,BLA
€ 5.50
92009
920091134
ref: 92009
SCREW,CBL ADJUST,8MM
€ 10.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92015A
920151197
ref: 92015A
NUT,CABLE ADJUST LOCK
€ 6.50
92066
920661281
ref: 92066
PLUG
€ 3.00
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
