CARBURETOR
EL250B2 ELIMINATOR 1988 FG

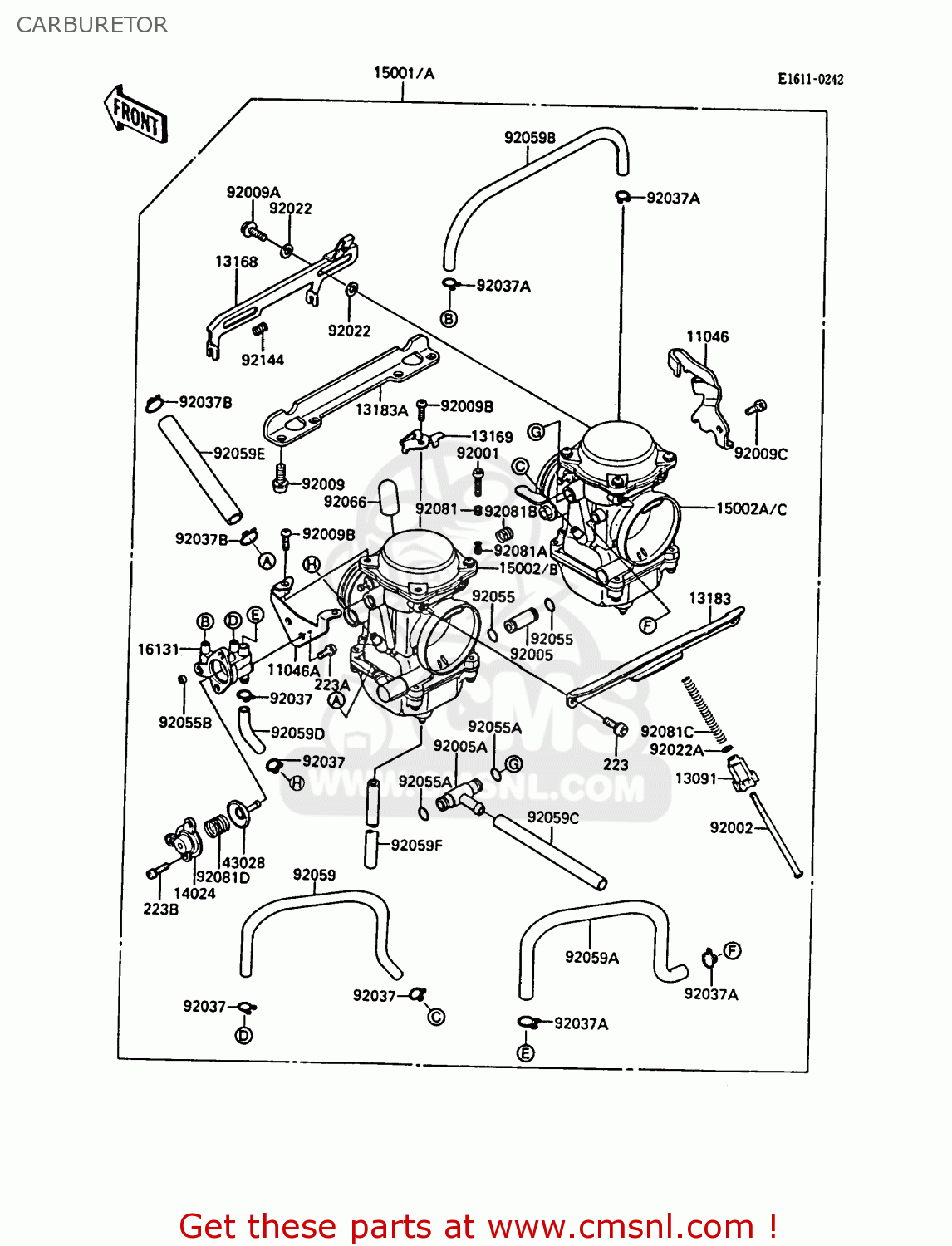

Carburetor diagram EL250B2 ELIMINATOR 1988 FG
CARBURETOR EL250B2 ELIMINATOR 1988 FG
×
prices are in EUR
ref
part #
description
quantity
11046
110461081
ref: 11046
BRACKET,THROTTLE CABL
€ 26.00
11046A
110461082
ref: 11046A
BRACKET,AIR CUT VALVE
€ 27.00
13091
130911382
ref: 13091
HOLDER,THROTTLE STOP
€ 11.00
13168
131681330
ref: 13168
LEVER,STARTER
€ 59.50
13169
131691965
ref: 13169
PLATE,STARTER CABLE
€ 26.50
13183
131831029
ref: 13183
PLATE,CARBURETOR STAY
€ 49.00
13183A
131831030
ref: 13183A
PLATE
€ 21.50
14024
140241327
ref: 14024
COVER,AIR CUT VALVE
€ 43.00
15001
150011452
ref: 15001
CARBURETOR-ASSY
€ 684.00
15002
150021656
ref: 15002
CARBURETOR,LH
€ 457.00
15002A
150021657
ref: 15002A
CARBURETOR,RH
€ 457.00
16131
161311062
ref: 16131
BODY-VALVE,DIAPHRAGM
€ 51.50
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
€ 62.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92002
920021552
ref: 92002
BOLT,THROTTLE STOP SC
€ 10.00
92005
920051109
ref: 92005
FITTING,FUEL,I-TYPE
€ 25.00
92005A
920051125
ref: 92005A
FITTING,T-TYPE
€ 18.00
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
€ 4.00
92009B
920091446
ref: 92009B
SCREW,4X18
€ 4.00
92009C
920091510
ref: 92009C
SCREW
€ 3.00
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371142
ref: 92037
CLAMP,TUBE
€ 2.50
92037A
920371477
ref: 92037A
CLAMP,TUBE
€ 3.00
92037B
920371531
ref: 92037B
CLAMP,TUBE
€ 3.50
92055
920551004
ref: 92055
O RING
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
€ 3.50
92055B
920551245
ref: 92055B
RING-O
€ 3.50
92059
920591140
ref: 92059
TUBE,3.5X6.5X180
€ 17.50
92059A
920591201
ref: 92059A
TUBE,5X9X160
€ 14.50
92059B
920591377
ref: 92059B
TUBE,5X9X180
€ 16.50
92059C
920591465
ref: 92059C
TUBE,6.5X9.5X500
€ 20.50
92059D
920591722
ref: 92059D
TUBE
€ 15.50
92059E
920591892
ref: 92059E
TUBE,6.5X11.5X320
€ 22.00
92059F
920591893
ref: 92059F
TUBE,3.5X6.5X390
€ 15.50
92066
92068006
ref: 92066
RUBBER PLUG
€ 2.50
223
223C0510
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223D0408
ref: 223A
SCREW-PAN-WS-CROS
€ 1.00
223B
223D0410
ref: 223B
SCREW-PAN-WS-CROS
€ 2.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
€ 6.50
92081C
920811875
ref: 92081C
SPRING,THROTTLE STOP
€ 5.50
92081D
920811891
ref: 92081D
SPRING,AIR CUT VALVE
€ 8.50
92144
921441048
ref: 92144
SPRING,STARTER LEVER
€ 7.00
