CAMSHAFT(S)/TENSIONER
EL250B2 ELIMINATOR 1988 FG

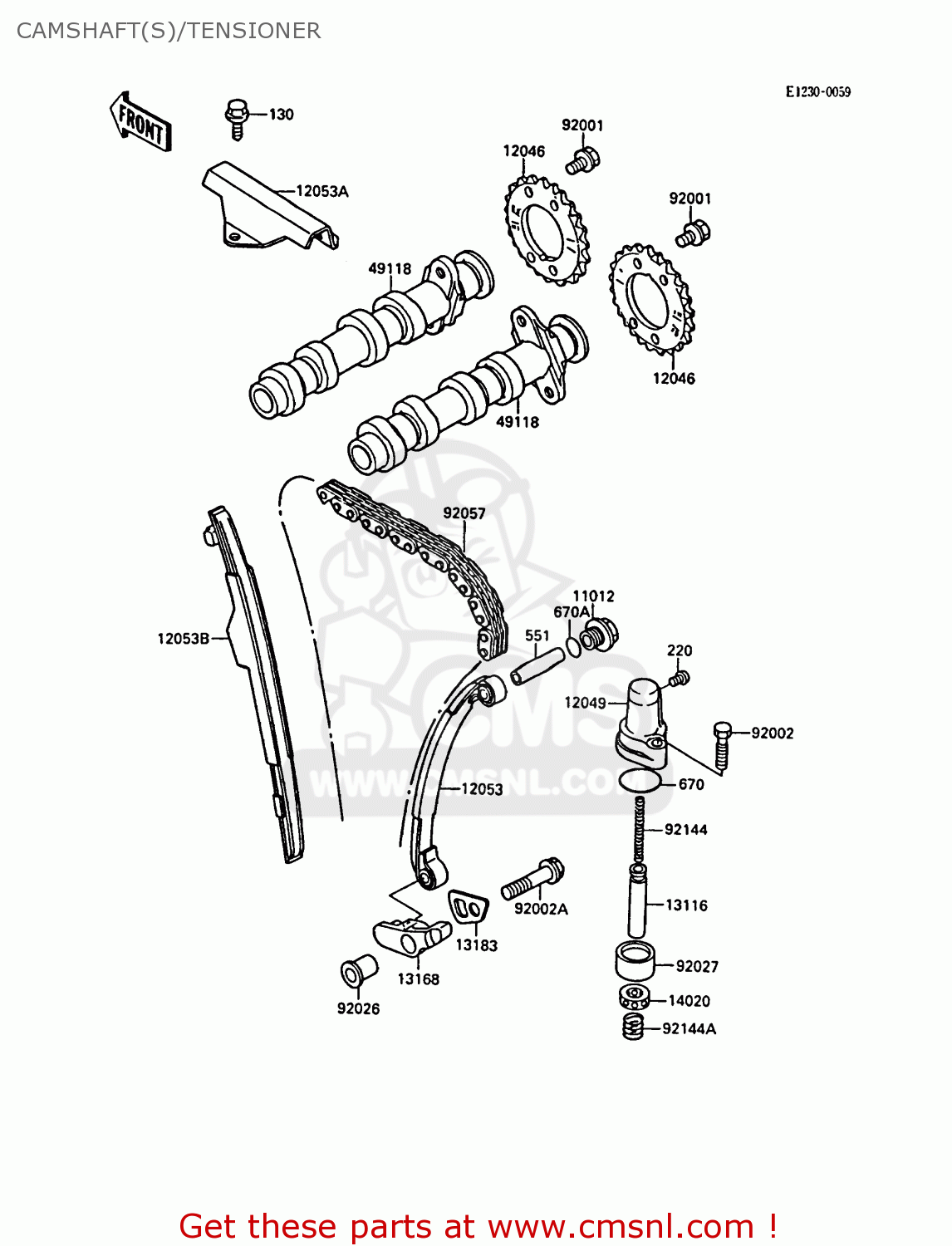

Camshaft(s)/tensioner diagram EL250B2 ELIMINATOR 1988 FG
CAMSHAFT(S)/TENSIONER EL250B2 ELIMINATOR 1988 FG
×
prices are in EUR
ref
part #
description
quantity
130
130P0614
ref: 130
BOLT-FLANGED,6X14
€ 2.00
220
220C0508
ref: 220
SCREW-PAN-CROS
€ 1.00
551
551A0835
ref: 551
PIN-DOWEL
€ 2.50
670
670B2021
ref: 670
O RING,21MM
€ 3.00
670A
670D2014
ref: 670A
O RING,14MM
€ 3.50
11012
110121677
ref: 11012
CAP,BOLT
€ 9.50
12046
120461085
ref: 12046
SPROCKET,CAMSHAFT,38T
€ 38.50
12049
120491053
ref: 12049
TENSIONER,F.BLACK
€ 19.00
12053
120531191
ref: 12053
GUIDE-CHAIN,RR
€ 37.50
12053A
120531192
ref: 12053A
GUIDE-CHAIN,UPP
€ 31.00
12053B
120531205
ref: 12053B
GUIDE-CHAIN,FR
€ 39.50
13116
131161122
ref: 13116
ROD-PUSH,TENSIONER
€ 10.50
13168
131681313
ref: 13168
LEVER,TENSIONER
€ 18.00
13183
131691661
ref: 13183
PLATE,CHAIN GUIDE
€ 3.00
14020
140201002
ref: 14020
RETAINER,TENSIONER
€ 10.50
49118
491181054
ref: 49118
CAMSHAFT-COMP
€ 257.00
92001
92003208
ref: 92001
BOLT,SPROCKET FITTING
€ 2.50
92002
920021344
ref: 92002
BOLT,6X25
€ 1.50
92002A
920021824
ref: 92002A
BOLT
€ 3.00
92026
920261266
ref: 92026
SPACER
€ 5.50
92027
920271240
ref: 92027
COLLAR,TENSIONER
€ 10.00
92057
920571210
ref: 92057
CHAIN,CAMSHAFT
€ 25.50
92144
920811984
ref: 92144
SPRING,TENSIONER
€ 4.00
92144A
921441059
ref: 92144A
SPRING,TENSIONER
€ 2.00
