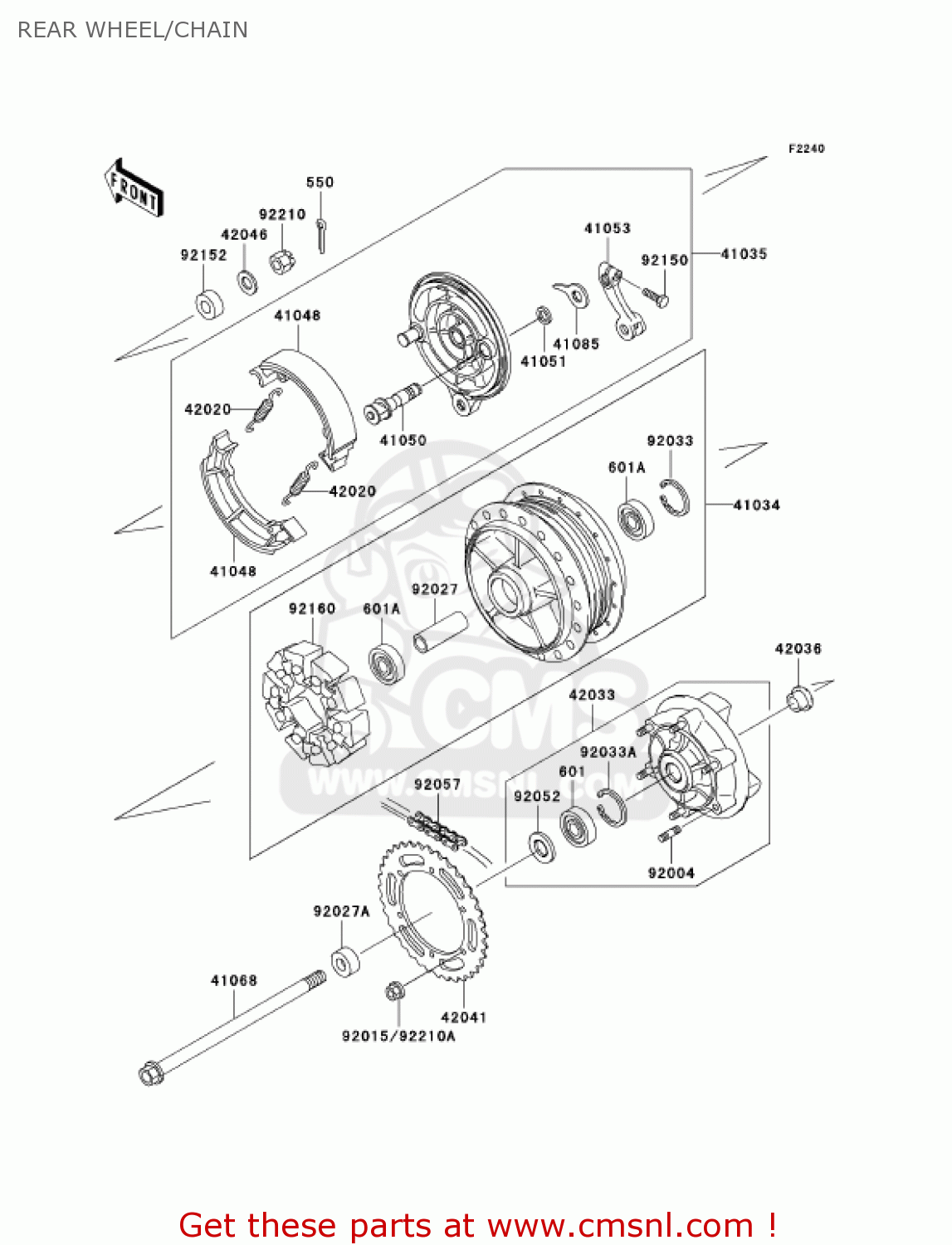

REAR WHEEL/CHAIN

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6205G
ref: 601

BEARING BALL

€ 14.00

601A

601B6303UU
ref: 601A

BEARING-BALL,6303LLUC

€ 30.50

41034

410341298
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 710.50

41035

410351509
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 479.00

41048

410481130
ref: 41048

SHOE-BRAKE (NAS)

€ 17.50

41050

410501065
ref: 41050

CAM-BRAKE

€ 29.00

41051

41051003
ref: 41051

DUST SHIELD-BRAKE CAM

€ 2.50

41053

410531093
ref: 41053

LEVER-BRAKE CAM

€ 54.00

41068

410681413
ref: 41068

AXLE,RR

€ 60.00

41085

410851060
ref: 41085

INDICATOR

€ 9.00

42020

42020004
ref: 42020

SPRING-BRAKE SHOE

€ 5.50

42033

420331207
ref: 42033

COUPLING-ASSY,RR HUB

€ 288.00

42036

420361233
ref: 42036

SLEEVE,RR AXLE,L=22

€ 17.00

42041

420411371
ref: 42041

SPROCKET-HUB,39T

€ 42.00

42046

42046009
ref: 42046

WASHER-SLEEVE

€ 5.00

92004

920041275
ref: 92004

STUD

€ 6.50

92015

920151335
ref: 92015

NUT,FLANGED,10MM

€ 1.50

92027

920271714
ref: 92027

COLLAR,L=104

€ 14.50

92027A

920271784
ref: 92027A

COLLAR,RR HUB

€ 16.00

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331043
ref: 92033A

RING,SNAP,56.2M/M

€ 6.00

92052

92052006
ref: 92052

OIL SEAL WTC35527

€ 6.50

92057

920571474
ref: 92057

CHAIN,DRIVE,EK525MV-O

€ 146.50

92150

921501797
ref: 92150

BOLT

€ 3.50

92152

921521155
ref: 92152

COLLAR,RR AXLE,RH,L=1

€ 6.00

92160

921601524
ref: 92160

DAMPER,SHOCK,RR HUB

€ 52.00

92210

922101171
ref: 92210

NUT,CASTLE,16MM

€ 8.00
