HEADLIGHT(S)
EJ650A3 W650 2001 USA CALIFORNIA CANADA

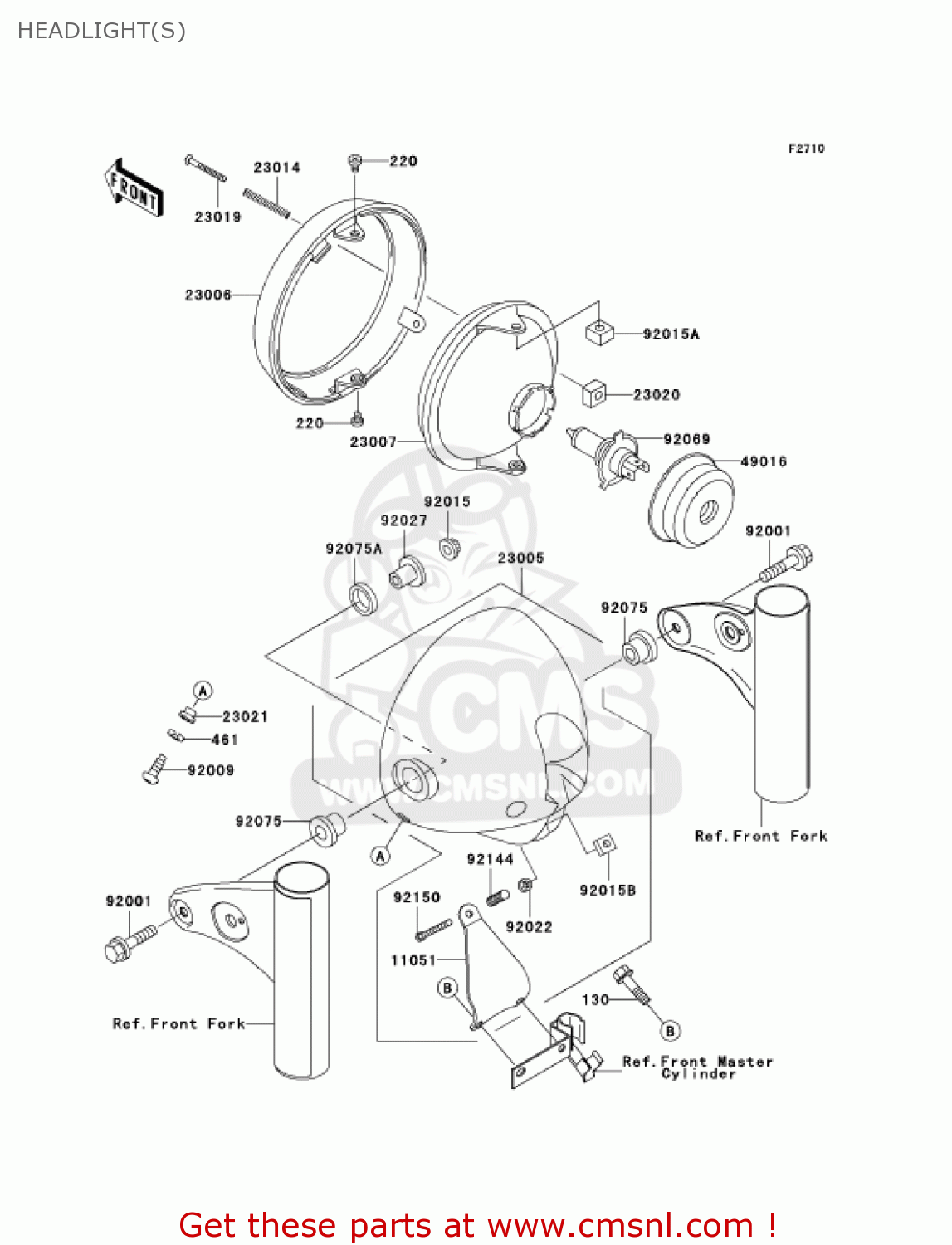

Headlight(s) diagram EJ650A3 W650 2001 USA CALIFORNIA CANADA
HEADLIGHT(S) EJ650A3 W650 2001 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
€ 1.50
220
220D0510
ref: 220
SCREW-PAN-CROS
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
11051
110511473
ref: 11051
BRACKET
€ 10.00
23005
230051177
ref: 23005
BODY-COMP-HEAD LAMP
€ 247.50
23006
230061080
ref: 23006
RIM-LAMP
€ 71.50
23007
230071361
ref: 23007
LENS-COMP,HEAD LAMP
€ 87.00
23014
23014005
ref: 23014
SPRING-FOCUS ADJUST
€ 2.50
23019
23019021
ref: 23019
SCREW-FORCUS ADJUST
€ 3.00
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
€ 3.00
23021
23021010
ref: 23021
WASHER
€ 2.50
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
€ 7.50
92001
920011910
ref: 92001
BOLT,FLANGED,8X35
€ 4.50
92009
920091947
ref: 92009
SCREW,5MM
€ 2.00
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92015A
920151157
ref: 92015A
NUT,5MM
€ 3.50
92015B
920151799
ref: 92015B
NUT,5MM,FOCUS ADJUST
€ 3.00
92022
920221380
ref: 92022
WASHER,5.2X13X1
€ 2.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92069
920691002
ref: 92069
BULB,12V-60155W
€ 15.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 3.00
92144
921441417
ref: 92144
SPRING
€ 3.00
92150
921501590
ref: 92150
BOLT,ADJUST,5X45
€ 4.50
