CRANKCASE
EJ650A3 W650 2001 USA CALIFORNIA CANADA

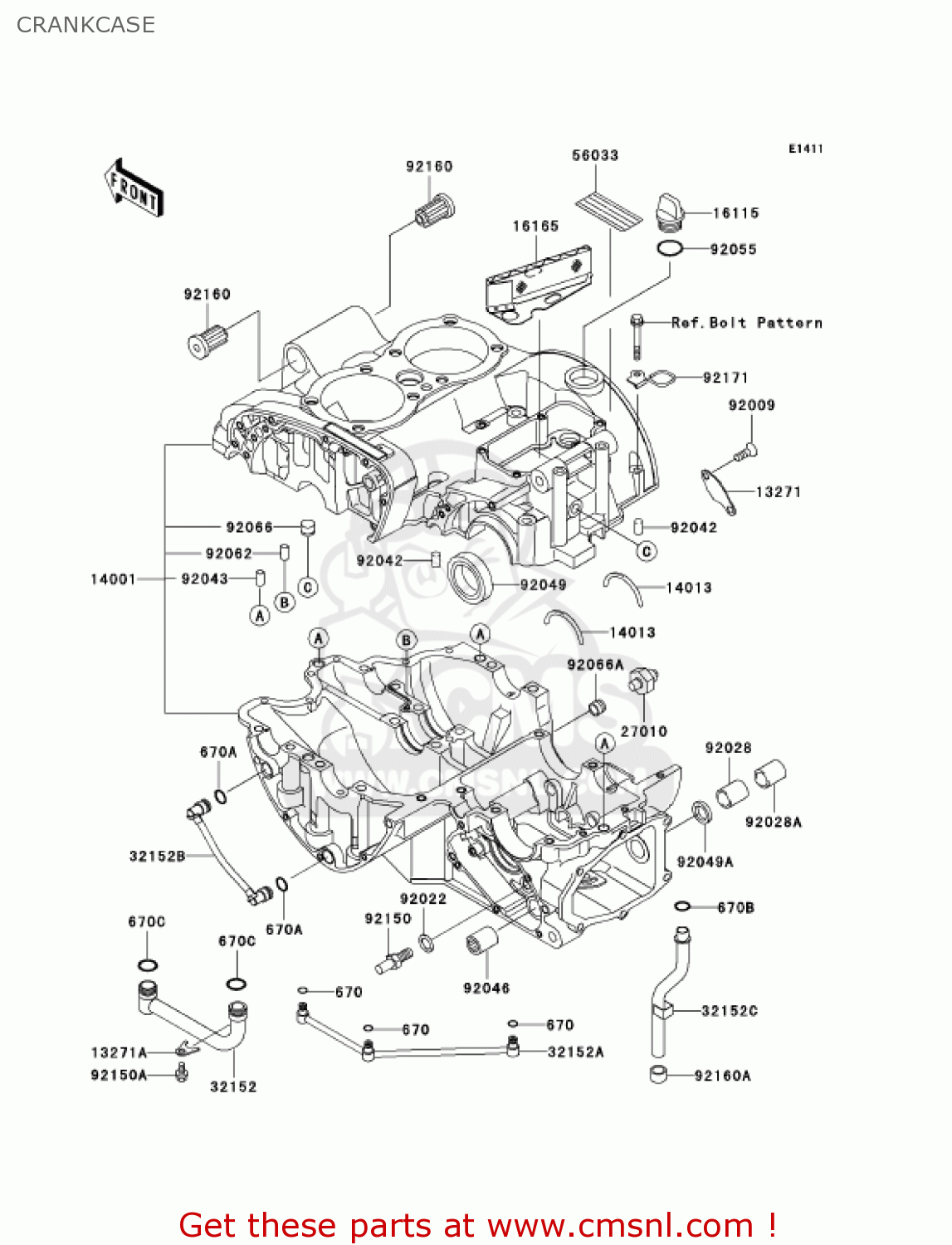

Crankcase diagram EJ650A3 W650 2001 USA CALIFORNIA CANADA
CRANKCASE EJ650A3 W650 2001 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
670
670D1505
ref: 670
O RING
€ 2.50
670A
670D2010
ref: 670A
O RING,10MM
€ 1.00
670B
670D2012
ref: 670B
O RING,12MM
€ 1.50
670C
670D2014
ref: 670C
O RING,14MM
€ 3.50
13271
132711186
ref: 13271
PLATE,BREATHER
€ 2.50
13271A
132711187
ref: 13271A
PLATE,OIL PIPE
€ 1.50
14001
140011260
ref: 14001
SET-CRANKCASE
€ 1,376.50
14013
140131004
ref: 14013
RING-POSITION,CRANK
€ 3.00
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
16165
161651068
ref: 16165
SEPARATOR,BREATHER
€ 24.50
27010
270101313
ref: 27010
SWITCH,OIL PRESSURE
€ 28.00
32152
321521902
ref: 32152
PIPE,MAIN OIL
€ 31.50
32152A
321521903
ref: 32152A
PIPE,TRANSMISSION OIL
€ 43.50
32152B
321521904
ref: 32152B
PIPE,BALANCER OIL
€ 43.50
32152C
321521905
ref: 32152C
PIPE,BREATHER OIL
€ 12.50
56033
560331155
ref: 56033
LABEL-MANUAL,OIL CAPA
€ 3.50
92009
920091880
ref: 92009
SCREW,6X12
€ 0.50
92022
920221973
ref: 92022
WASHER
€ 3.00
92028
920281899
ref: 92028
BUSHING,KICK LEVER,IN
€ 5.50
92028A
920281900
ref: 92028A
BUSHING,KICK LEVER,OU
€ 5.50
92042
92042016
ref: 92042
PIN,DOWEL,6X16
€ 3.50
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
€ 0.50
92046
920461148
ref: 92046
BEARING-NEEDLE,HK1312
€ 19.50
92049
920491501
ref: 92049
SEAL-OIL,HTC40628
€ 7.50
92049A
920491523
ref: 92049A
SEAL-OIL,KICK PEDAL
€ 9.00
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92062
920621079
ref: 92062
NOZZLE
€ 5.50
92066
920661355
ref: 92066
PLUG,10.5MM
€ 3.50
92066A
920661530
ref: 92066A
PLUG,MAIN GALLERY
€ 8.50
92150
921501803
ref: 92150
BOLT,RETURN SPRING
€ 6.50
92150A
921501826
ref: 92150A
BOLT,6X12
€ 2.50
92160
921601483
ref: 92160
DAMPER,ENGINE MOUNT
€ 21.50
92160A
921601986
ref: 92160A
DAMPER,BREATHER PIPE
€ 2.50
92171
921711124
ref: 92171
CLAMP,DRAIN TUBE
€ 10.00
