EJ650A2 W650 2000 USA CALIFORNIA CANADA

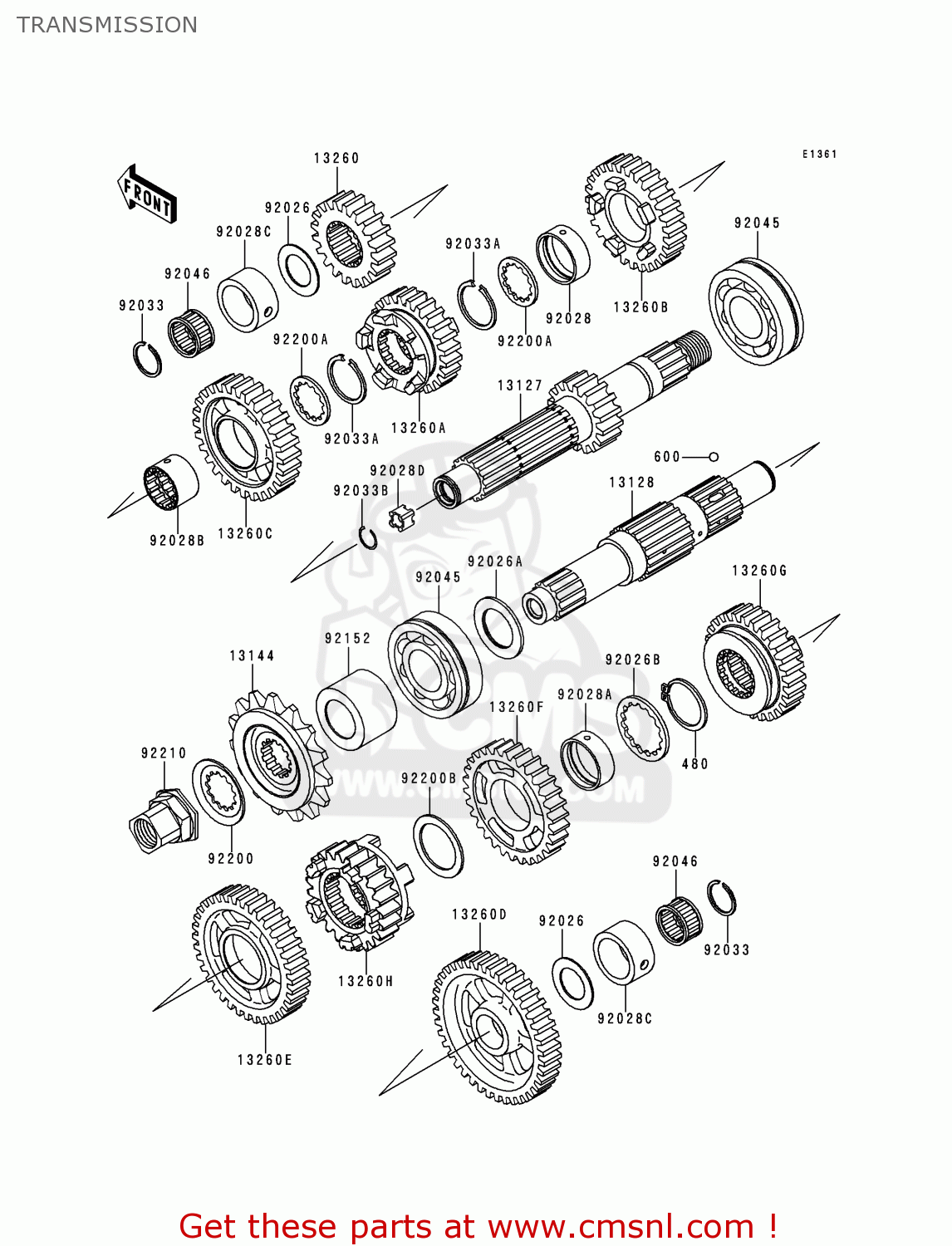

Transmission diagram EJ650A2 W650 2000 USA CALIFORNIA CANADA
TRANSMISSION EJ650A2 W650 2000 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
480
480J2900
ref: 480
CIRCLIP
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13127
131271270
ref: 13127
SHAFT-TRANSMISSION IN
€ 191.50
13128
131281234
ref: 13128
SHAFT-TRANSMISSION OU
€ 188.50
13144
131441305
ref: 13144
SPROCKET-OUTPUT,15T
€ 32.00
13260
132601783
ref: 13260
GEAR,INPUT 2ND,22T
€ 111.00
13260A
132601784
ref: 13260A
GEAR,INPUT 3RD,25T
€ 154.00
13260B
132601785
ref: 13260B
GEAR,INPUT 4TH,28T
€ 111.00
13260C
132601786
ref: 13260C
GEAR,INPUT TOP,27T
€ 115.50
13260D
132601787
ref: 13260D
GEAR,OUTPUT LOW,39T
€ 113.50
13260E
132601788
ref: 13260E
GEAR,OUTPUT 2ND,35T
€ 111.00
13260F
132601789
ref: 13260F
GEAR,OUTPUT 3RD,31T
€ 111.00
13260G
132601790
ref: 13260G
GEAR,OUTPUT 4TH,28T
€ 121.50
13260H
132601791
ref: 13260H
GEAR,OUTPUT TOP,23T
€ 121.50
92026
920261528
ref: 92026
SPACER,20.5X33X1.0
€ 3.00
92026A
920261529
ref: 92026A
SPACER,25.3X39X2.0
€ 7.50
92026B
920261530
ref: 92026B
SPACER,TOOTHED,28X30X
€ 7.50
92028
920281449
ref: 92028
BUSHING,INPUT 5TH GEA
€ 17.50
92028A
920281707
ref: 92028A
BUSHING
€ 21.50
92028B
920281752
ref: 92028B
BUSHING,INPUT TOP GEA
€ 26.00
92028C
92028180
ref: 92028C
BUSHING,OUTPUT SFT
€ 21.50
92028D
920281901
ref: 92028D
BUSHING,INPUT SHAFT
€ 9.50
92033
92033015
ref: 92033
CIRCLIP
€ 2.50
92033A
920331037
ref: 92033A
SNAP RING,25.9X1.2T
€ 3.00
92033B
920331072
ref: 92033B
RING-SNAP
€ 2.50
92045
920451224
ref: 92045
BEARING-BALL,6305N2SH
€ 40.00
92046
920461185
ref: 92046
BEARING-NEEDLE,KMJ20X
€ 17.50
92152
921521148
ref: 92152
COLLAR,SPROCKET
€ 25.00
92200
922001065
ref: 92200
WASHER
€ 4.50
92200A
922001240
ref: 92200A
WASHER,2ND,3RD,4TH
€ 7.00
92200B
922001278
ref: 92200B
WASHER,29.9X40X1.5
€ 8.00
92210
922101098
ref: 92210
NUT,SPROCKET
€ 24.50
