FUEL TANK
EJ650A2 W650 2000 USA CALIFORNIA CANADA

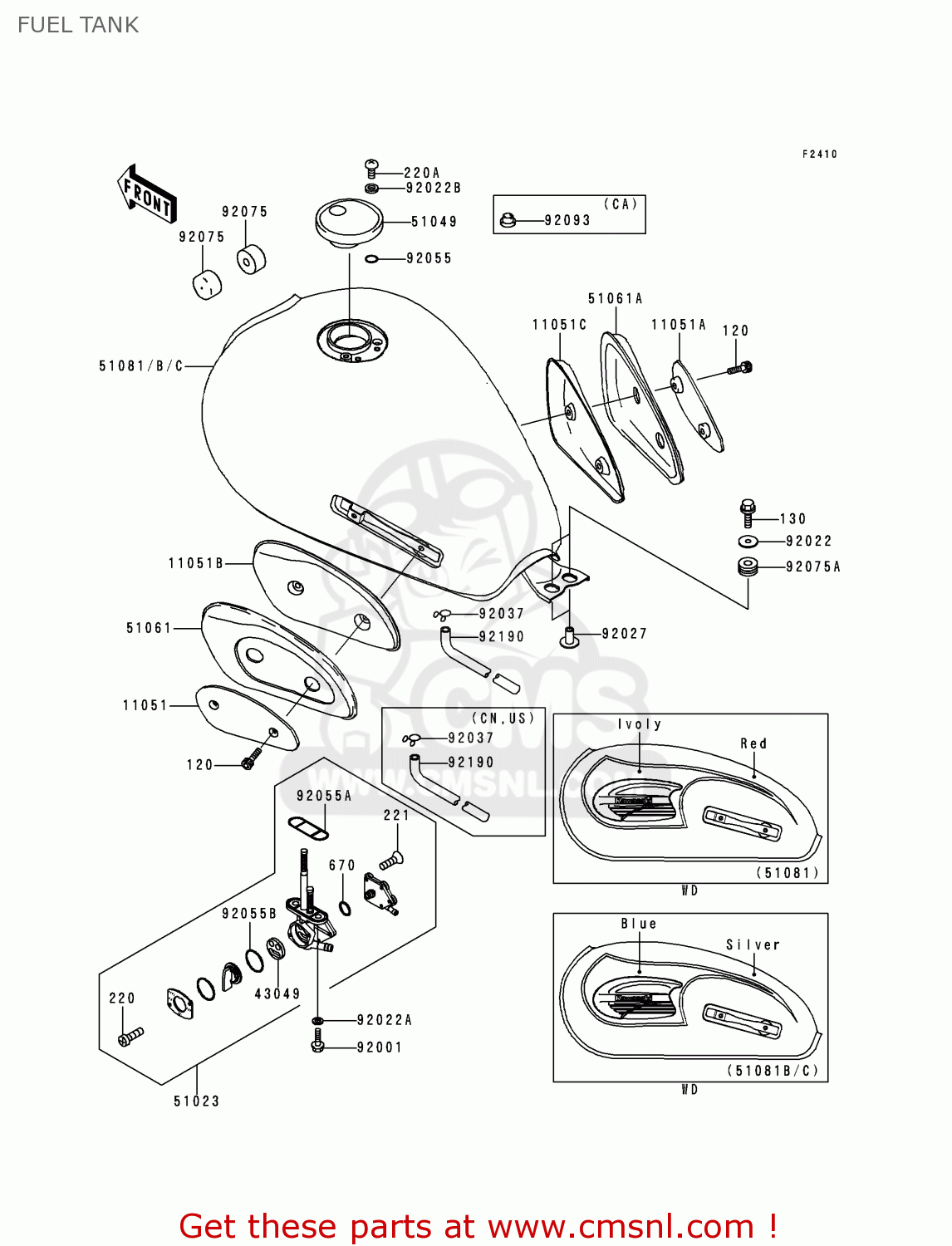

Fuel tank diagram EJ650A2 W650 2000 USA CALIFORNIA CANADA
FUEL TANK EJ650A2 W650 2000 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120R0612
ref: 120
BOLT-SOCKET
€ 1.00
130
130H0625
ref: 130
BOLT-FLANGED,6X25
€ 0.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220D0510
ref: 220A
SCREW-PAN-CROS
€ 0.50
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
11051
110511533
ref: 11051
BRACKET,KNEE PAD,LH,O
€ 32.00
11051A
110511534
ref: 11051A
BRACKET,KNEE PAD,RH,O
€ 32.00
11051B
110511563
ref: 11051B
BRACKET,KNEE PAD,LH,I
€ 23.50
11051C
110511564
ref: 11051C
BRACKET,KNEE PAD,RH,I
€ 27.00
43049
430491066
ref: 43049
PACKING,TAP VALVE (NAS)
€ 5.00
51023
510231251
ref: 51023
TAP-ASSY,FUEL
€ 94.00
51049
510491103
ref: 51049
CAP-TANK,FUEL
€ 91.00
51061
510611055
ref: 51061
PAD-KNEE,LH
€ 37.50
51061A
510611056
ref: 51061A
PAD-KNEE,RH
€ 36.50
51081
5108153058A
ref: 51081
CN
TANK-COMP-FUEL,RED/IV
€ 900.00
51081B
510815306L8
ref: 51081B
CNUS
TANK-COMP-FUEL,BLUE/S
€ 857.50
51081C
510815160L8
ref: 51081C
CA
TANK-COMP-FUEL,BLUE/S
€ 610.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92022
920221690
ref: 92022
WASHER
€ 2.50
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
€ 2.50
92022B
920221977
ref: 92022B
WASHER,5.1X10X1.0
€ 2.50
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92037
92037147
ref: 92037
CNUS
CLAMP,CHAIN OILER
€ 4.50
92037
92037147
ref: 92037
CA
CLAMP,CHAIN OILER
€ 4.50
92055
920551023
ref: 92055
ORING
€ 2.50
92055A
920551112
ref: 92055A
RING-/,FUEL TAP PACKI
€ 3.00
92055B
920551419
ref: 92055B
RING-O,TAP LEVER
€ 3.00
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
€ 4.00
92075A
920751690
ref: 92075A
DAMPER,10X24X12
€ 3.00
92093
920931030
ref: 92093
CA
OIL SEAL,FUEL TANK CA
€ 5.00
92190
921901453
ref: 92190
CNUS
TUBE,DRAIN
€ 14.50
92190
921901453
ref: 92190
CA
TUBE,DRAIN
€ 14.50
