Genuine EJ Kawasaki Parts delivered quickly!


HEADLIGHT(S)

EJ650A2 W650 2000 USA CALIFORNIA CANADA

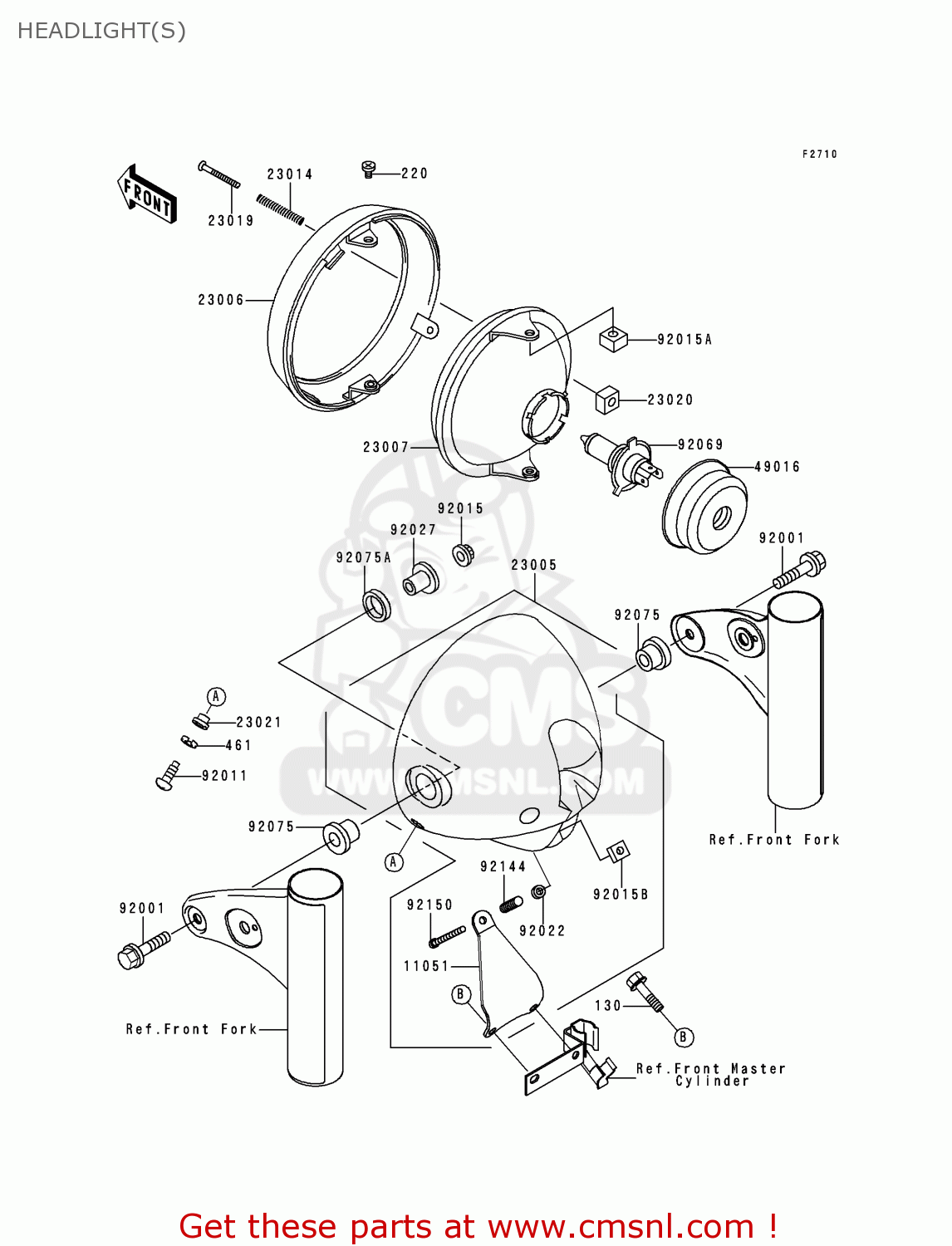

Headlight(s) diagram EJ650A2 W650 2000 USA CALIFORNIA CANADA

HEADLIGHT(S) EJ650A2 W650 2000 USA CALIFORNIA CANADA
HEADLIGHT(S) EJ650A2 W650 2000 USA CALIFORNIA CANADA
HEADLIGHT(S) EJ650A2 W650 2000 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
220
220D0510
ref: 220
SCREW-PAN-CROS
220D0510
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
11051
110511473
ref: 11051
BRACKET
€ 10.00
23005
230051177
ref: 23005
BODY-COMP-HEAD LAMP
230051177
€ 247.50
23006
230061080
ref: 23006
RIM-LAMP
€ 71.50
23007
230071361
ref: 23007
LENS-COMP,HEAD LAMP
€ 87.00
23014
23014005
ref: 23014
SPRING-FOCUS ADJUST
23014005
€ 2.50
23019
23019021
ref: 23019
SCREW-FORCUS ADJUST
23019021
€ 3.00
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
23021
23021010
ref: 23021
WASHER
23021010
€ 2.50
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
490161046
€ 7.50
92001
920011910
ref: 92001
BOLT,FLANGED,8X35
920011910
€ 4.50
92011
92011024
ref: 92011
SCREW-PAN HEAD,5MM
92011024
€ 2.00
92015
920151014
ref: 92015
NUT,8MM
920151014
€ 0.50
92015A
920151157
ref: 92015A
NUT,5MM
920151157
€ 3.50
92015B
920151799
ref: 92015B
NUT,5MM,FOCUS ADJUST
920151799
€ 3.00
92022
920221380
ref: 92022
WASHER,5.2X13X1
920221380
€ 2.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
920271131
€ 6.00
92069
920691002
ref: 92069
BULB,12V-60155W
920691002
€ 15.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
920751109
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
920751110
€ 3.00
92144
921441417
ref: 92144
SPRING
921441417
€ 3.00
92150
921501590
ref: 92150
BOLT,ADJUST,5X45
921501590
€ 4.50
