GEAR CHANGE DRUM/SHIFT FORK(S)

BN125A5 ELIMINATOR 2002 USA CALIFORNIA CANADA

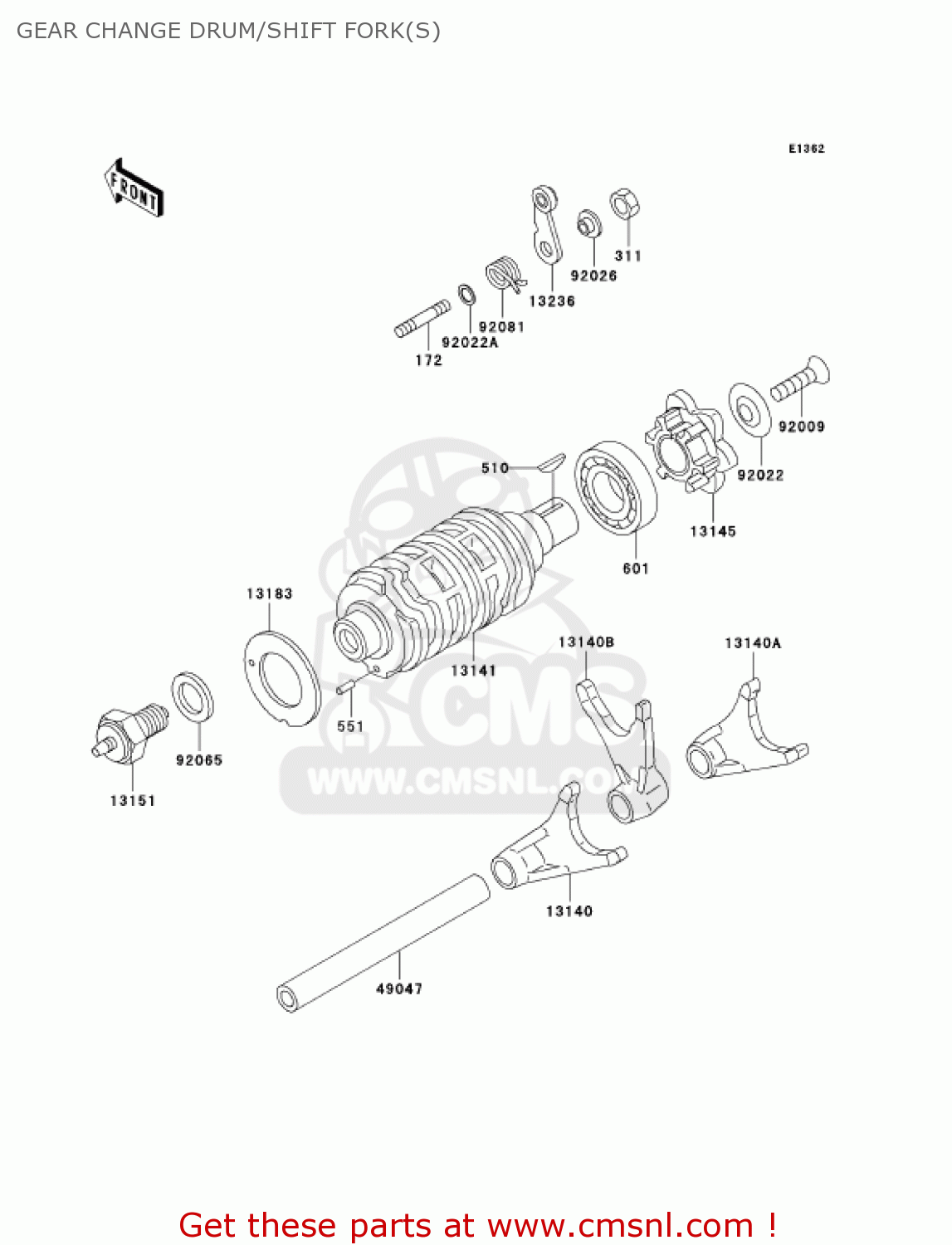

Gear change drum/shift fork(s) diagram BN125A5 ELIMINATOR 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

172

172G0612
ref: 172

BOLT-STUD,6X12

€ 1.00

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

510

510A3200
ref: 510

KEY-WOODRUFF

€ 1.50

551

551A0306
ref: 551

PIN,DOWEL,3X6

€ 1.00

601

601B6003
ref: 601

BEARING-BALL

€ 17.00

13140

131401247
ref: 13140

FORK-SHIFT

€ 68.50

13140A

131401264
ref: 13140A

FORK-SHIFT,LOW-3RD

€ 70.00

13140B

131401265
ref: 13140B

FORK-SHIFT, 5TH-TOP

€ 70.50

13141

131411210
ref: 13141

DRUM-CHANGE

€ 92.50

13145

131451084
ref: 13145

CAM-CHANGE DRUM

€ 32.50

13151

131511080
ref: 13151

SWITCH-COMP,NEUTRAL

€ 9.00

13183

131831066
ref: 13183

PLATE

€ 11.50

13236

132361192
ref: 13236

LEVER-COMP,DRUM POSIT

€ 6.50

49047

490471068
ref: 49047

ROD-SHIFT

€ 13.00

92009

920091360
ref: 92009

SCREW,6X16

€ 2.50

92022

920221792
ref: 92022

WASHER

€ 3.00

92022A

920221827
ref: 92022A

WASHER,6X12.8X1.2

€ 3.00

92026

920261217
ref: 92026

SPACER

€ 3.50

92065

92065058
ref: 92065

GASKET, 10,5X16X1 (NAS)

€ 2.50

92081

920811993
ref: 92081

SPRING,POSITION LEVER

€ 4.00

GEAR CHANGE DRUM/SHIFT FORK(S)

all assemblies
