FRONT FORK

BN125A5 ELIMINATOR 2002 USA CALIFORNIA CANADA

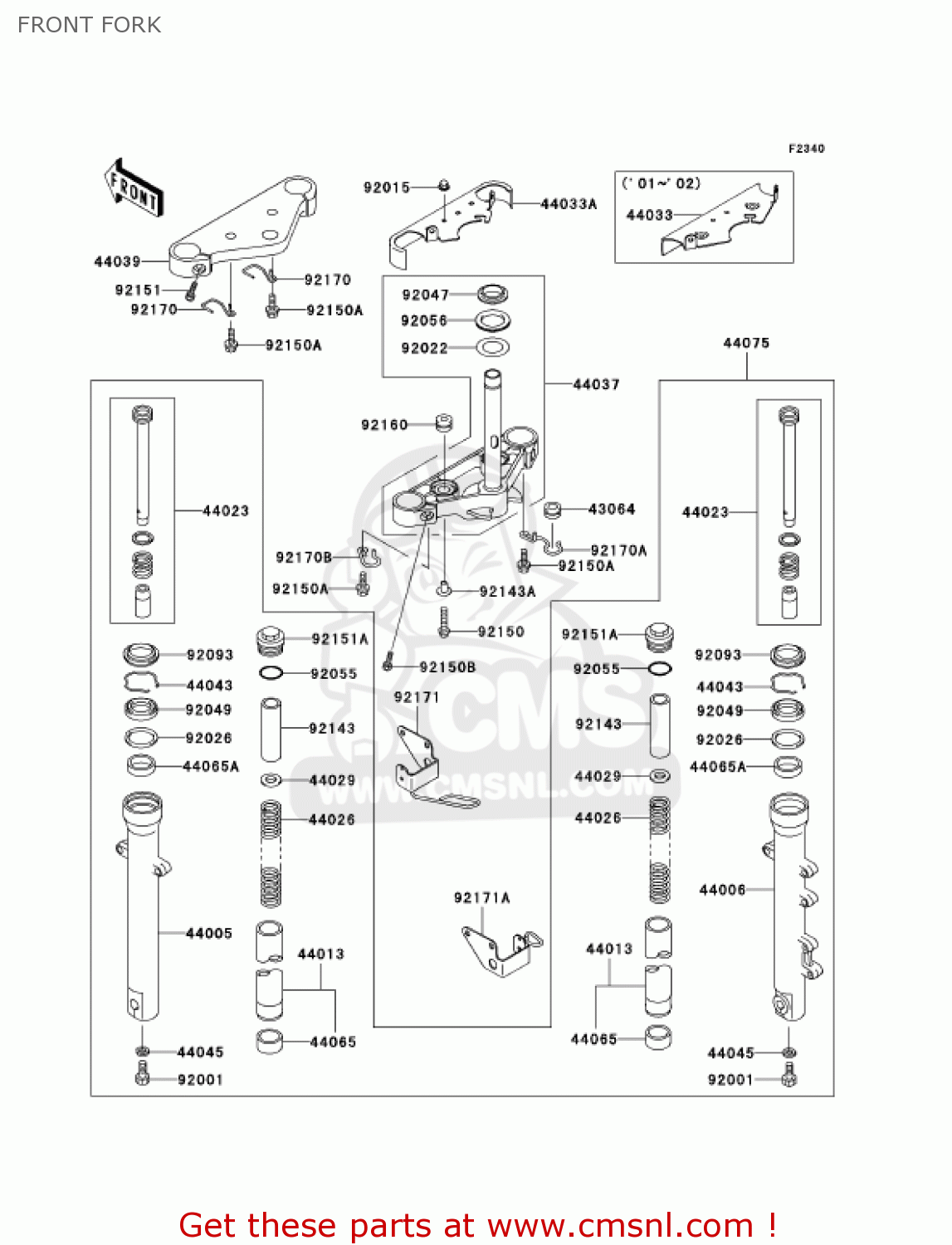

Front fork diagram BN125A5 ELIMINATOR 2002 USA CALIFORNIA CANADA

FRONT FORK BN125A5 ELIMINATOR 2002 USA CALIFORNIA CANADA
FRONT FORK BN125A5 ELIMINATOR 2002 USA CALIFORNIA CANADA
FRONT FORK BN125A5 ELIMINATOR 2002 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
43064
43064007
ref: 43064
43064007
44005
440051391
ref: 44005
PIPE-LEFT FORK OUTER
440051391
€ 244.00
44006
440061390
ref: 44006
PIPE-RIGHT FORK OUTER
€ 244.00
44013
440131444
ref: 44013
PIPE-FORK INNER
440131444
€ 149.00
44023
440231128
ref: 44023
CYLINDER-SET-FORK
€ 36.00
44026
440261680
ref: 44026
SPRING-FRONT FORK
€ 25.00
44029
440291136
ref: 44029
SEAT-FORK SPRING
440291136
€ 13.50
44033
440331226
ref: 44033
COVER-FORK
€ 21.50
44037
440371361
ref: 44037
HOLDER-FORK UNDER
440371361
€ 285.50
44039
440391275
ref: 44039
HOLDER-FORK UPPER
€ 201.00
44043
44043057
ref: 44043
RING,OIL SEAL STOPER
44043057
€ 4.00
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
44065
440651123
ref: 44065
BUSHING-FRONT FORK,IN
440651123
€ 12.50
44065A
440651124
ref: 44065A
BUSHING-FRONT FORK,OU
440651124
€ 10.00
44075
440751076
ref: 44075
DAMPER-SET-FORK
€ 1,186.00
92001
920011464
ref: 92001
BOLT
920011464
€ 4.00
92015
920151385
ref: 92015
NUT,CAP,6MM
920151385
€ 2.50
92022
92022231
ref: 92022
WASHER,PLAIN
92022231
€ 3.00
92026
920261365
ref: 92026
SPACER
920261365
€ 6.50
92047
92047012
ref: 92047
CONE-STRNG STM BRNG
92047012
€ 14.50
92049
920491340
ref: 92049
SEAL-OIL FORK OUT TUB
920491340
€ 13.50
92055
920551367
ref: 92055
RING-O,FORK TOP
€ 3.00
92056
92056003
ref: 92056
OIL SEAL,STEERING STM
92056003
€ 6.00
92093
920931280
ref: 92093
SEAL,FORK OUTER TUBE
920931280
€ 13.50
92143
921431311
ref: 92143
COLLAR,FORK
921431311
€ 7.50
92143A
921431683
ref: 92143A
COLLAR,L=12
921431683
€ 4.00
92150
921501124
ref: 92150
BOLT
921501124
€ 3.00
92150A
921501340
ref: 92150A
BOLT,6X14
921501340
€ 3.00
92150B
921501387
ref: 92150B
BOLT,SOCKET,10X25
€ 3.50
92151
921511261
ref: 92151
BOLT
€ 3.00
92151A
921511262
ref: 92151A
BOLT,FORK TOP
921511262
€ 30.00
92160
921601167
ref: 92160
DAMPER,10X20X12
921601167
€ 3.00
92170
921701769
ref: 92170
CLAMP,CABLE
921701769
€ 5.50
92170A
921701840
ref: 92170A
CLAMP,HOSE
921701840
€ 10.00
92170B
921701841
ref: 92170B
CLAMP,CABLE
921701841
€ 6.00
92171
921711294
ref: 92171
CLAMP,CABLE
€ 4.00
92171A
921711295
ref: 92171A
CLAMP,BRAKE HOSE
€ 4.00
