CARBURETOR

BN125A5 ELIMINATOR 2002 USA CALIFORNIA CANADA

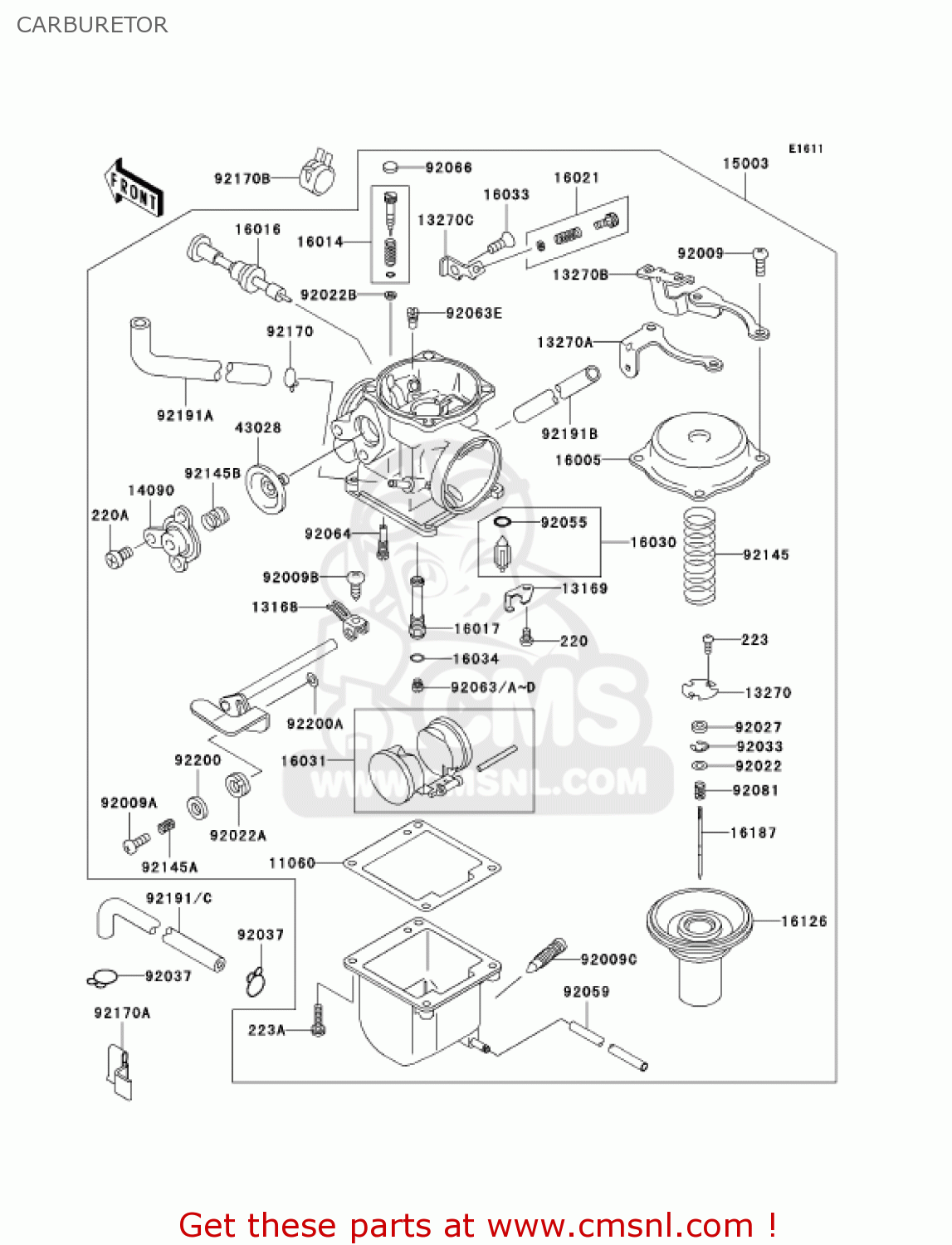

Carburetor diagram BN125A5 ELIMINATOR 2002 USA CALIFORNIA CANADA

CARBURETOR BN125A5 ELIMINATOR 2002 USA CALIFORNIA CANADA
CARBURETOR BN125A5 ELIMINATOR 2002 USA CALIFORNIA CANADA
CARBURETOR BN125A5 ELIMINATOR 2002 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11060
110601849
ref: 11060
GASKET,FLOAT CHAMBER (NAS)
110601849
€ 5.50
13168
131681642
ref: 13168
LEVER,STARTER
€ 26.00
13169
131691482
ref: 13169
PLATE,FLOAT VALVE
131691482
€ 4.00
13270
132701981
ref: 13270
PLATE,VACUUM VALVE
€ 5.00
13270A
132701982
ref: 13270A
PLATE,LH
€ 12.50
13270B
132701983
ref: 13270B
PLATE,RH
€ 12.50
13270C
132701984
ref: 13270C
PLATE,THROTTLE STOP S
€ 10.50
14090
140901931
ref: 14090
COVER,AIR CUT VALVE
€ 8.50
15003
150031627
ref: 15003
CARBURETOR-ASSY
€ 197.50
16005
160051087
ref: 16005
TOP-CHAMBER
€ 35.50
16014
160141117
ref: 16014
SCREW-PILOT AIR
160141117
€ 17.00
16016
160161106
ref: 16016
PLUNGER
€ 30.00
16017
160171432
ref: 16017
JET-NEEDLE,0-8M
€ 25.50
16021
160211217
ref: 16021
SCREW-THROTTLE STOP
€ 14.00
16030
160301086
ref: 16030
VALVE-FLOAT
160301086
€ 41.50
16031
160311094
ref: 16031
FLOAT
160311094
€ 37.50
16033
16033024
ref: 16033
SCREW,5X8
16033024
€ 3.50
16034
16034001
ref: 16034
WASHER-MAIN JET
16034001
€ 2.50
16126
161261352
ref: 16126
VALVE,VACUUM
161261352
€ 113.00
16187
161871188
ref: 16187
NEEDLE-JET,4C17
€ 21.00
43028
430281026
ref: 43028
DIAPHGRAM,COASTING RC
430281026
€ 124.50
92009
920091126
ref: 92009
SCREW,5X10,BLACK
€ 0.50
92009A
920091823
ref: 92009A
SCREW,STARTER LEVER
€ 7.00
92009B
920091824
ref: 92009B
SCREW,STARTER
€ 2.00
92009C
920091826
ref: 92009C
SCREW,DRAIN
920091826
€ 6.00
92022
920221123
ref: 92022
WASHER,JET NEEDLE
920221123
€ 5.50
92022A
920221147
ref: 92022A
WASHER,PLAIN,DURACON
920221147
€ 5.00
92022B
920221187
ref: 92022B
WASHER,ADJUST SCREW
920221187
€ 4.00
92027
920271103
ref: 92027
RING,JET NEEDLE
920271103
€ 4.50
92033
920331290
ref: 92033
RING-SNAP
920331290
€ 3.00
92037
920371610
ref: 92037
CLAMP
920371610
€ 1.50
92055
920551105
ref: 92055
RING-0
920551105
€ 3.00
92059
920591243
ref: 92059
TUBE,3X5X220,OVRFLOW
920591243
€ 5.00
92063
920631100
ref: 92063
(OPTION)
JET-MAIN,#A127.5
920631100
€ 9.50
92063A
920631101
ref: 92063A
(OPTION)
JET-MAIN,#A122.5
920631101
€ 9.50
92063B
920631102
ref: 92063B
JET-MAIN,#A125
920631102
€ 9.50
92063C
920631103
ref: 92063C
(OPTION)
JET-MAIN,#A130
920631103
€ 9.50
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
220B0406
€ 2.50
220A
220D0410
ref: 220A
SCREW-PAN-CROS
220D0410
€ 2.00
223
223B0307
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223B0414
ref: 223A
SCREW PAN-WS-CROS
€ 2.50
92063D
920631106
ref: 92063D
(OPTION)
JET-MAIN,#A120
920631106
€ 11.50
92063E
920632059
ref: 92063E
JET-MAIN,#70
920632059
€ 12.00
92064
920641230
ref: 92064
JET-PILOT,#32.5
920641230
€ 12.50
92066
920661501
ref: 92066
PLUG,PILOT AIR SCREW
920661501
€ 2.50
92081
920811126
ref: 92081
SPRING,JET NEEDLE
920811126
€ 4.00
92145
921451124
ref: 92145
SPRING,VACUUM VALVE
€ 6.50
92145A
921451125
ref: 92145A
SPRING,STARTER LEVER
€ 2.50
92145B
921451127
ref: 92145B
SPRING,AIR CUT VALVE
€ 7.50
92170
921701818
ref: 92170
CLAMP
€ 3.50
92170A
921701936
ref: 92170A
CLAMP
€ 3.00
92170B
921702043
ref: 92170B
CLAMP
921702043
€ 1.00
92191
921911210
ref: 92191
[CN,US
TUBE,L=115
€ 2.50
92191A
921911244
ref: 92191A
TUBE
€ 6.50
92191B
921911245
ref: 92191B
TUBE,5X8X300
€ 13.50
92191C
921911623
ref: 92191C
[CA]
TUBE,L=66.8
€ 0.00
92200
922001397
ref: 92200
WASHER,STARTER LEVER
€ 2.00
92200A
922001398
ref: 92200A
WASHER,STARTER LEVER
€ 2.00
