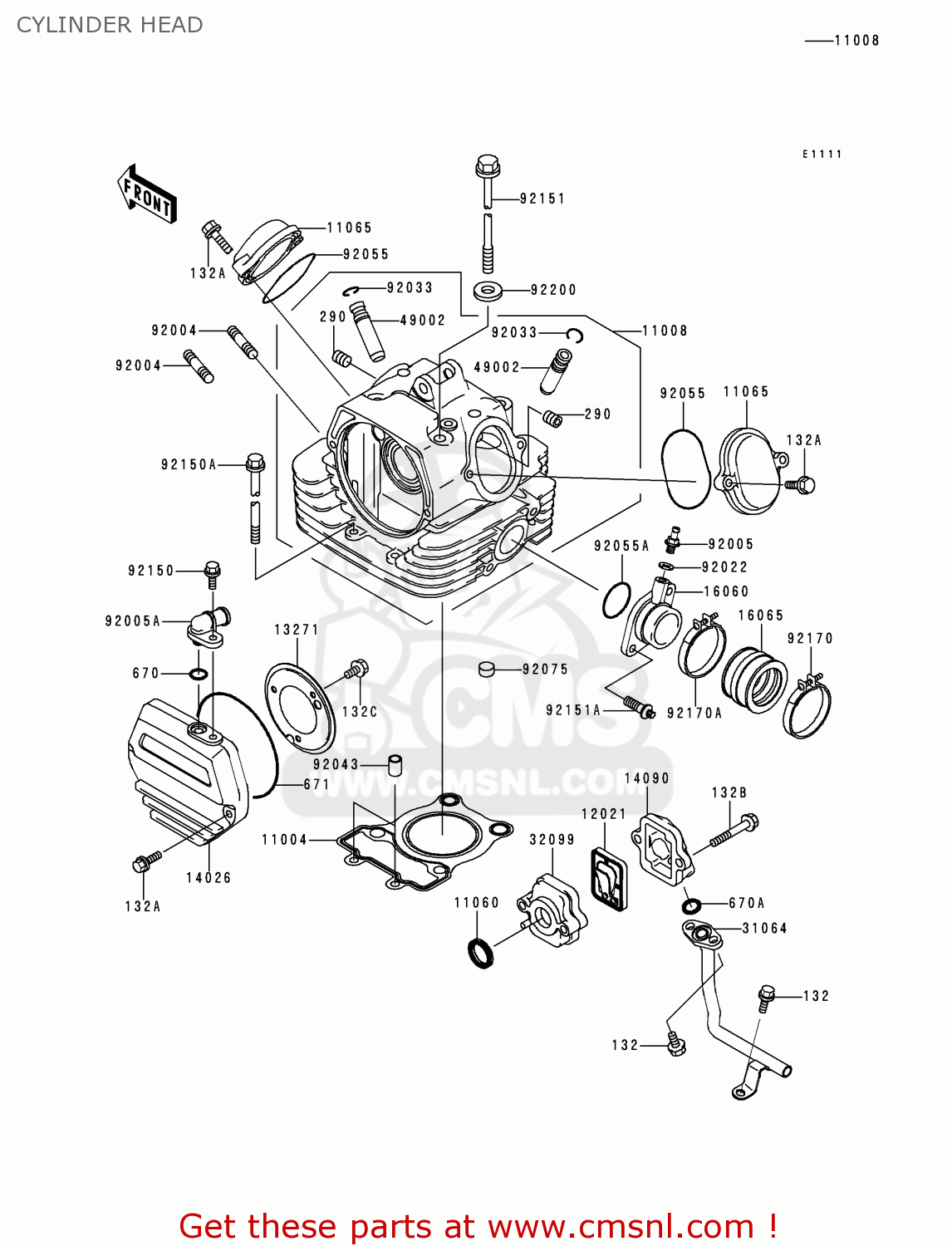

CYLINDER HEAD

ref

part #

description

quantity

132

132V0616
ref: 132

BOLT-FLANGED-SMALL,6X

€ 1.00

132A

132V0625
ref: 132A

BOLT-FLANGED-SMALL,6X

€ 2.00

132B

132V0640
ref: 132B

BOLT-FLANGED-SMALL,6X

€ 2.50

132C

132Y0612
ref: 132C

BOLT-FLANGED-SMALL

€ 1.50

290

290Q0606
ref: 290

SCREW,6X6

€ 3.00

670

670B1510
ref: 670

O RING,9.8X1.9

€ 2.50

670A

670B2010
ref: 670A

O RING,10MM

€ 1.00

671

671B2595
ref: 671

O RING,95MM

€ 4.50

11004

110041335
ref: 11004

GASKET-HEAD (NAS)

€ 18.50

11008

110081384
ref: 11008

HEAD-COMP-CYLINDER

€ 475.00

11060

110601815
ref: 11060

GASKET,REED VALVE (NAS)

€ 5.00

11065

110651071
ref: 11065

CAP,ROCKER CASE

€ 10.50

12021

120211102
ref: 12021

VALVE-ASSY-REED

€ 58.00

13271

132711109
ref: 13271

PLATE,BREATHER

€ 7.50

14026

140261256
ref: 14026

COVER-CHAIN,CAM SPROC

€ 23.00

14090

140901852
ref: 14090

COVER,REED VALVE

€ 16.00

16060

160601084
ref: 16060

PIPE-INTAKE

€ 45.50

16065

160651335
ref: 16065

HOLDER-CARBURETOR

€ 15.00

31064

310641205
ref: 31064

PIPE-COMP

€ 76.00

32099

320991187
ref: 32099

CASE,REED VALVE

€ 21.00

49002

490021116
ref: 49002

GUIDE-VALVE

€ 23.00

92004

920041121
ref: 92004

STUD,8X30

€ 3.50

92005

920051337
ref: 92005

FITTING

€ 17.50

92005A

920051342
ref: 92005A

FITTING,BREATHER

€ 27.00

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92033

920331247
ref: 92033

RING-SNAP

€ 2.00

92043

920434009
ref: 92043

PIN,10.1X12X14

€ 4.00

92055

92055112
ref: 92055

O RING, 53.5 M/M

€ 4.00

92055A

920551256
ref: 92055A

RING-O,32MM

€ 9.00

92075

920751089
ref: 92075

DAMPER

€ 4.50

92150

921501394
ref: 92150

BOLT,6X16

€ 2.00

92150A

921501986
ref: 92150A

BOLT,6X110

€ 2.50

92151

921511092
ref: 92151

BOLT,9X228.5

€ 7.50

92151A

921511726
ref: 92151A

BOLT,6X18

€ 3.00

92170

921701094
ref: 92170

CLAMP,CARBURETOR HOLD

€ 8.50

92170A

921701527
ref: 92170A

CLAMP,43MM

€ 12.00

92200

922001037
ref: 92200

WASHER,9.5X18X1.2

€ 2.00
