CARBURETOR
BN125A3 ELIMINATOR 2000 EUROPE UK FR NR

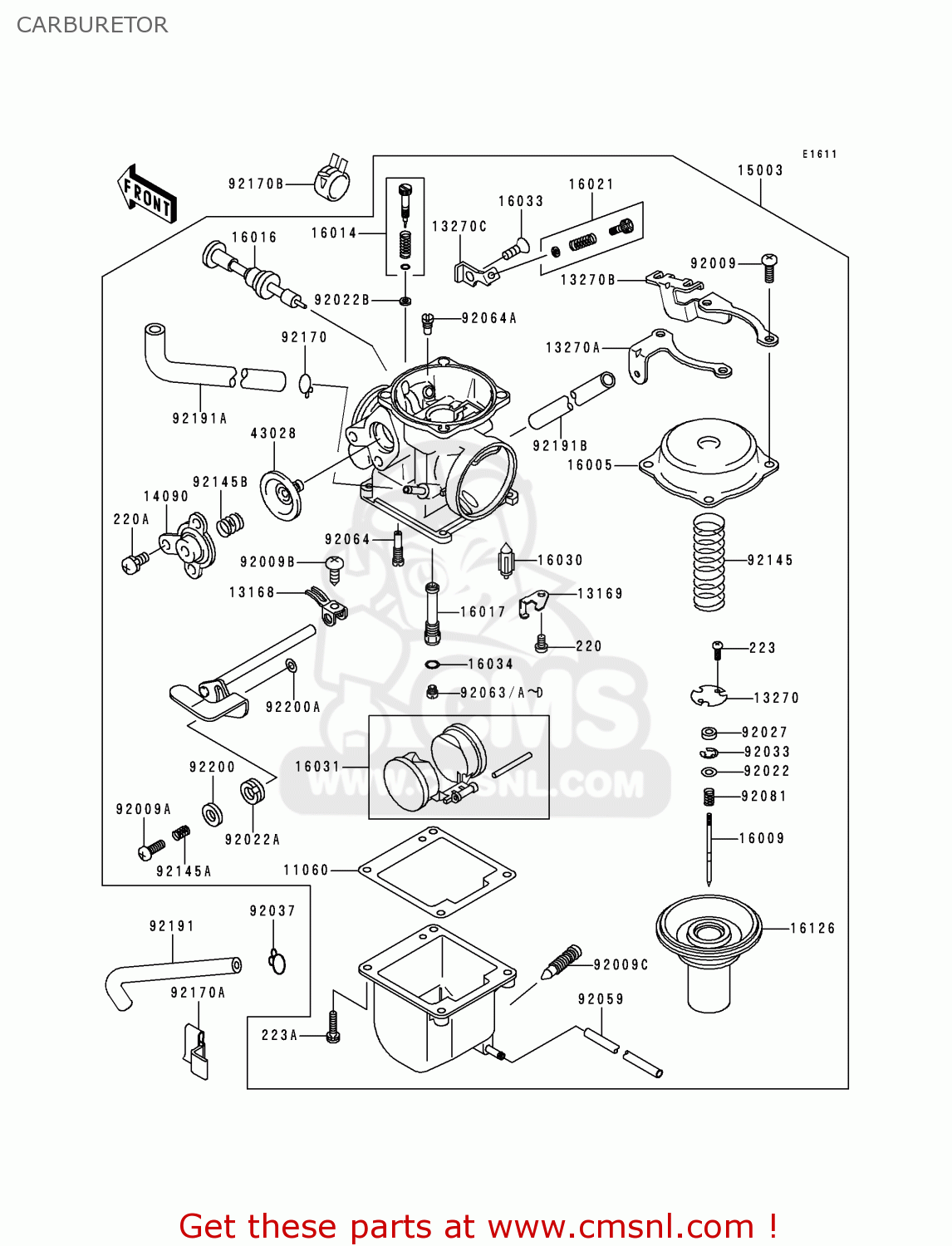

Carburetor diagram BN125A3 ELIMINATOR 2000 EUROPE UK FR NR
CARBURETOR BN125A3 ELIMINATOR 2000 EUROPE UK FR NR
×
prices are in EUR
ref
part #
description
quantity
11060
110601849
ref: 11060
GASKET,FLOAT CHAMBER (NAS)
€ 5.50
13168
131681642
ref: 13168
LEVER,STARTER
€ 26.00
13169
131691482
ref: 13169
PLATE,FLOAT VALVE
€ 4.00
13270
132701981
ref: 13270
PLATE,VACUUM VALVE
€ 5.00
13270A
132701982
ref: 13270A
PLATE,LH
€ 12.50
13270B
132701983
ref: 13270B
PLATE,RH
€ 12.50
13270C
132701984
ref: 13270C
PLATE,THROTTLE STOP S
€ 10.50
14090
140901931
ref: 14090
COVER,AIR CUT VALVE
€ 8.50
15003
150031585
ref: 15003
CARBURETOR-ASSY
€ 325.50
16005
160051087
ref: 16005
TOP-CHAMBER
€ 35.50
16009
160091970
ref: 16009
NEEDLE-JET,4DH24
€ 27.50
16014
160141098
ref: 16014
SCREW-PILOT AIR
€ 17.50
16016
160161106
ref: 16016
PLUNGER
€ 30.00
16017
160171391
ref: 16017
JET-NEEDLE,0-8
€ 34.50
16021
160211217
ref: 16021
SCREW-THROTTLE STOP
€ 14.00
16030
160301086
ref: 16030
VALVE-FLOAT
€ 41.50
16031
160311094
ref: 16031
FLOAT
€ 37.50
16033
16033024
ref: 16033
SCREW,5X8
€ 3.50
16034
16034001
ref: 16034
WASHER-MAIN JET
€ 2.50
16126
161261352
ref: 16126
VALVE,VACUUM
€ 113.00
43028
430281026
ref: 43028
DIAPHGRAM,COASTING RC
€ 124.50
92009
920091126
ref: 92009
SCREW,5X10,BLACK
€ 0.50
92009A
920091823
ref: 92009A
SCREW,STARTER LEVER
€ 7.00
92009B
920091824
ref: 92009B
SCREW,STARTER
€ 2.00
92009C
920091826
ref: 92009C
SCREW,DRAIN
€ 6.00
92022
920221123
ref: 92022
WASHER,JET NEEDLE
€ 5.50
92022A
920221147
ref: 92022A
WASHER,PLAIN,DURACON
€ 5.00
92022B
920221187
ref: 92022B
WASHER,ADJUST SCREW
€ 4.00
92027
920271103
ref: 92027
RING,JET NEEDLE
€ 4.50
92033
920331290
ref: 92033
RING-SNAP
€ 3.00
92037
920371610
ref: 92037
CLAMP
€ 1.50
92059
920591243
ref: 92059
TUBE,3X5X220,OVRFLOW
€ 5.00
92063
920631033
ref: 92063
JET-MAIN,#A100R
€ 17.00
92063A
920631034
ref: 92063A
JET-MAIN,#A102.5R
€ 9.50
92063B
920631038
ref: 92063B
JET-MAIN,#A110
€ 10.50
92063C
920631041
ref: 92063C
JET-MAIN,#A107.5R
€ 8.00
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
€ 2.50
220A
220D0410
ref: 220A
SCREW-PAN-CROS
€ 2.00
223
223B0307
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223B0414
ref: 223A
SCREW PAN-WS-CROS
€ 2.50
92063D
920631042
ref: 92063D
JET-MAIN,#A105R
€ 10.50
92064
920641187
ref: 92064
JET-PILOT,#A30
€ 14.00
92064A
920641189
ref: 92064A
JET-PILOT,#95
€ 11.50
92081
920811126
ref: 92081
SPRING,JET NEEDLE
€ 4.00
92145
921451124
ref: 92145
SPRING,VACUUM VALVE
€ 6.50
92145A
921451125
ref: 92145A
SPRING,STARTER LEVER
€ 2.50
92145B
921451127
ref: 92145B
SPRING,AIR CUT VALVE
€ 7.50
92170
921701818
ref: 92170
CLAMP
€ 3.50
92170A
921701936
ref: 92170A
CLAMP
€ 3.00
92170B
921702043
ref: 92170B
CLAMP
€ 1.00
92191
921911210
ref: 92191
TUBE,L=115
€ 2.50
92191A
921911244
ref: 92191A
TUBE
€ 6.50
92191B
921911245
ref: 92191B
TUBE,5X8X300
€ 13.50
92200
922001397
ref: 92200
WASHER,STARTER LEVER
€ 2.00
92200A
922001398
ref: 92200A
WASHER,STARTER LEVER
€ 2.00
