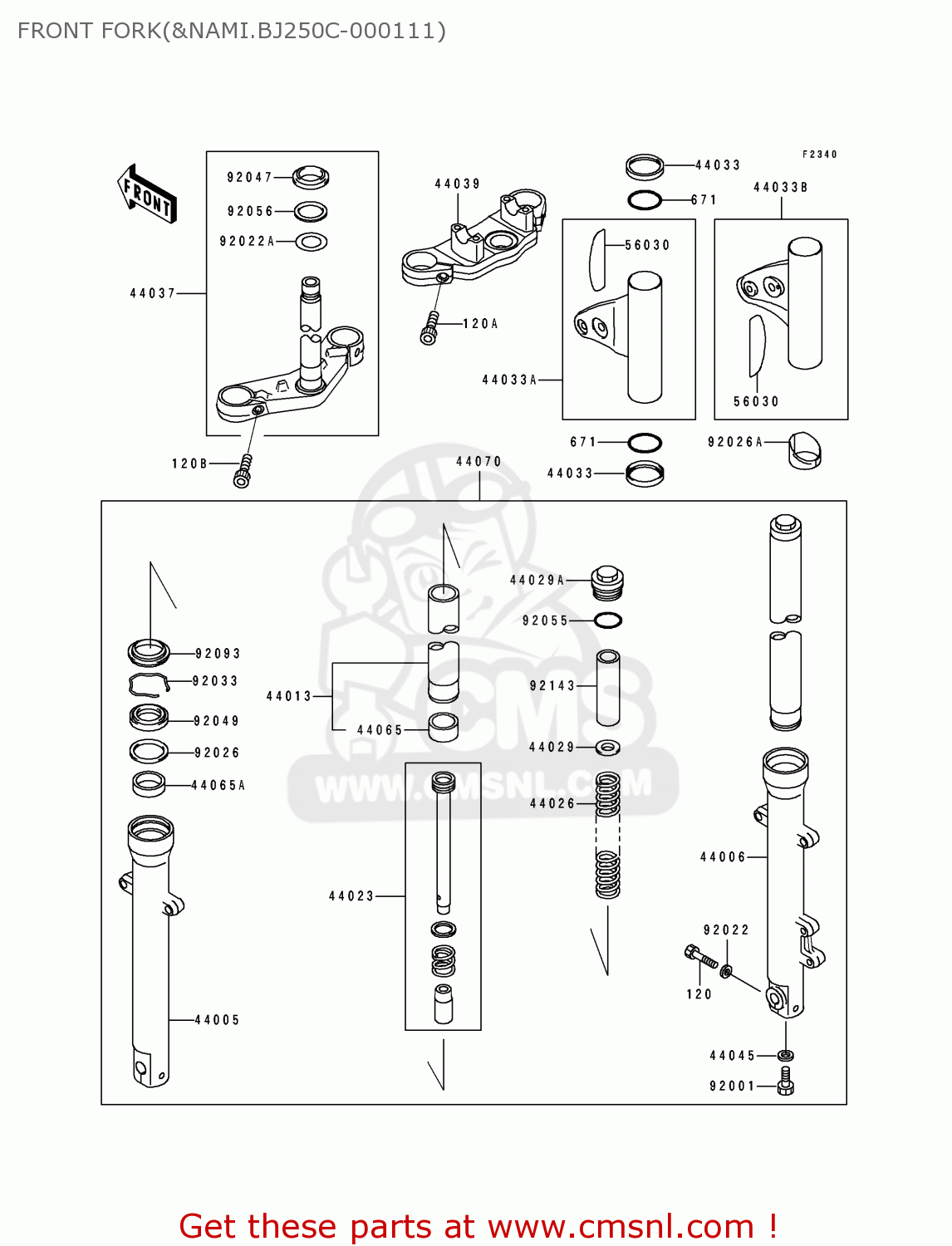

FRONT FORK(&NAMI.BJ250C-000111)

ref

part #

description

quantity

44005

440051317
ref: 44005
FG

PIPE-LEFT FORK OUTER

€ 326.00

44006

440061314
ref: 44006
FG

PIPE-RIGHT FORK OUTER

€ 319.50

44013

440131371
ref: 44013
FG

PIPE-FORK INNER

€ 143.50

44023

440231088
ref: 44023
FG

CYLINDER-COMP-FORK

€ 79.50

44026

440261518
ref: 44026
FG

SPRING-FRONT FORK

€ 25.50

44029

440291150
ref: 44029
FG

SEAT-FORK SPRING

€ 7.00

44029A

440291151
ref: 44029A
FG

SEAT-FORK SPRING

€ 33.00

44033

440331197
ref: 44033
FG

COVER-FORK

€ 15.50

44033A

440331207
ref: 44033A
FG

COVER-FORK,LH

€ 92.00

44033B

440331208
ref: 44033B
FG

COVER-FORK,RH

€ 92.00

44037

440371305
ref: 44037
FG

HOLDER-FORK UNDER

€ 251.50

44039

440391261
ref: 44039
FG

HOLDER-FORK UPPER

€ 230.50

44045

44045051
ref: 44045
FG

GASKET,FORK CYLINDER (NAS)

€ 4.00

44065

440651103
ref: 44065
FG

BUSHING-FRONT FORK,IN

€ 23.00

44065A

440651104
ref: 44065A
FG

BUSHING-FRONT FORK

€ 15.00

44070

440705050
ref: 44070
FG

DAMPER-ASSY

€ 1,171.50

56030

560301152
ref: 56030
FG

LABEL,FORK COVER

€ 9.50

92001

920011464
ref: 92001
FG

BOLT

€ 4.00

92022

920221969
ref: 92022
FG

WASHER

€ 3.00

92022A

92022231
ref: 92022A
FG

WASHER,PLAIN

€ 3.00

92026

920261406
ref: 92026
FG

SPACER,FORK

€ 6.00

92026A

920261432
ref: 92026A
FG

SPACER,FORK COVER

€ 4.00

120

120P0840
ref: 120
FG

BOLT-SOCKET,8X40

€ 2.00

120A

120S0830
ref: 120A
FG

BOLT-SOCKET,8X30,BLAC

€ 3.00

120B

120S1025
ref: 120B
FG

BOLT-SOCKET,10X25

€ 3.00

671

671B2540
ref: 671
FG

O RING,40MM

€ 4.00

92033

920331278
ref: 92033
FG

RING-SNAP

€ 4.00

92047

92047012
ref: 92047
FG

CONE-STRNG STM BRNG

€ 14.50

92049

920491391
ref: 92049
FG

SEAL-OIL,FORK OUTER T

€ 13.00

92055

920551500
ref: 92055
FG

RING-O,FORK TOP

€ 4.00

92056

92056003
ref: 92056
FG

OIL SEAL,STEERING STM

€ 6.00

92093

920931329
ref: 92093
FG

SEAL,FORK OUTER TUBE

€ 9.50

92143

921431587
ref: 92143
FG

COLLAR,FORK,L=200

€ 12.00

all assemblies
