CRANKCASE
BJ250C2 ESTRELLA 1996 FRANCE NL AR FG

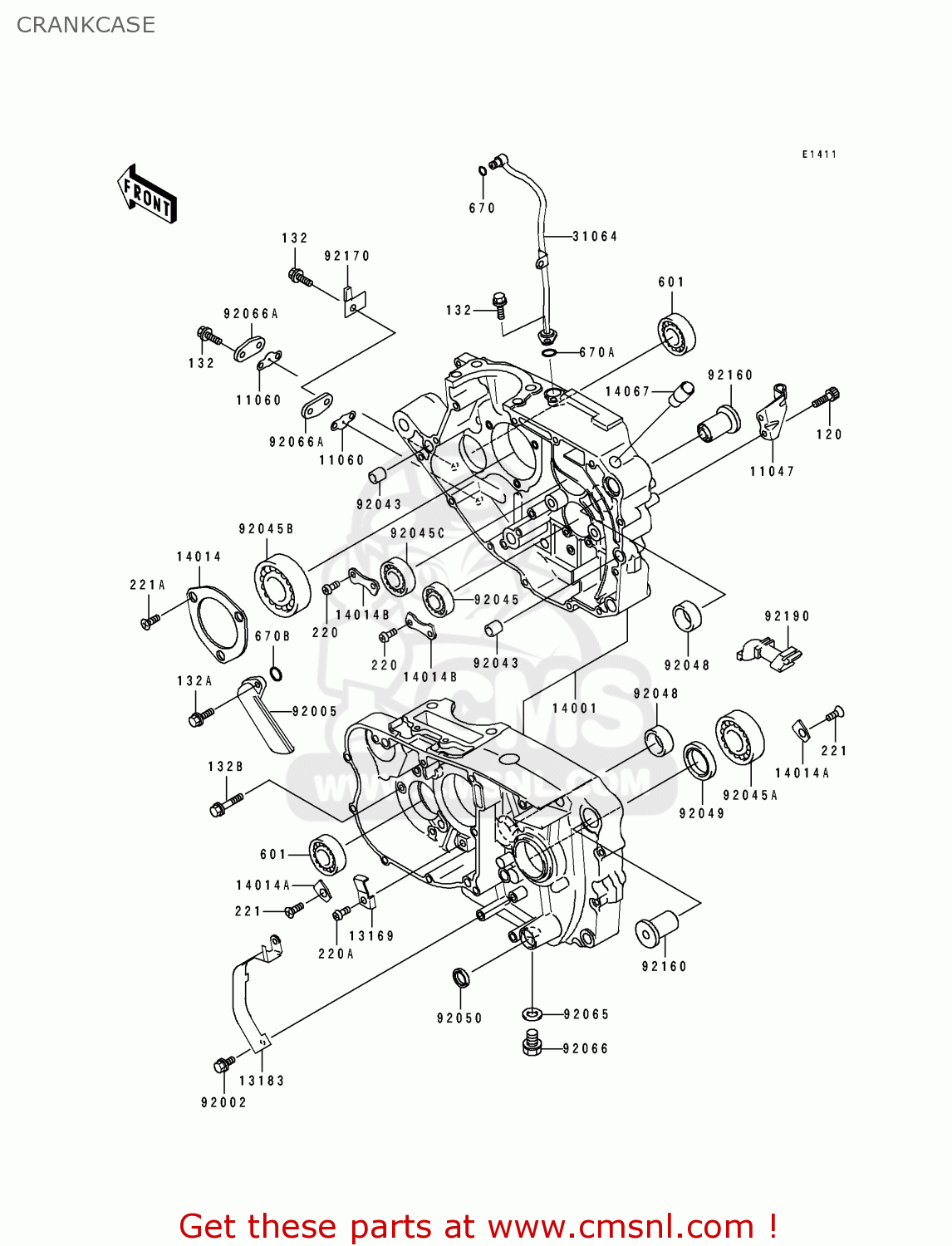

Crankcase diagram BJ250C2 ESTRELLA 1996 FRANCE NL AR FG
CRANKCASE BJ250C2 ESTRELLA 1996 FRANCE NL AR FG
×
prices are in EUR
ref
part #
description
quantity
120
120Z0616
ref: 120
BOLT-SOCKET,6X16
€ 2.50
132
132E0616
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132G0620
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
132B
132G0645
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
220A
220B0614
ref: 220A
SCREW-PAN HEAD,6X14
€ 2.00
221
221B0612
ref: 221
SCREW-CNTSNK HD,6X12
€ 1.50
221A
221B0616
ref: 221A
SCREW-CNTSNK HD,6X16
€ 0.50
601
601B6204
ref: 601
BEARING-BALL,#6204C3
€ 8.00
670
670B1505
ref: 670
O RING,5MM
€ 1.00
670A
670B2010
ref: 670A
O RING,10MM
€ 1.00
670B
670D2018
ref: 670B
O RING,18MM
€ 1.50
11047
110471648
ref: 11047
BRACKET
€ 12.00
11060
110601336
ref: 11060
GASKET (NAS)
€ 4.50
13169
131691691
ref: 13169
PLATE
€ 3.00
13183
131831837
ref: 13183
PLATE
€ 15.00
14001
140015310
ref: 14001
SET-CRANKCASE
€ 1,036.00
14014
140141004
ref: 14014
PLATE,POSITIONING
€ 8.00
14014A
140141057
ref: 14014A
PLATE-POSITION
€ 2.50
14014B
140141087
ref: 14014B
PLATE-POSITION
€ 3.50
14067
14067006
ref: 14067
BREATHER JOINT
€ 14.00
31064
310641137
ref: 31064
PIPE-COMP,OIL
€ 91.50
92002
920021944
ref: 92002
BOLT,6X8
€ 3.00
92005
920051152
ref: 92005
FITTING
€ 22.00
92043
920434009
ref: 92043
PIN,10.1X12X14
€ 4.00
92045
92045036
ref: 92045
BEARING-BALL,#6905
€ 29.00
92045A
920451127
ref: 92045A
BEARING-BALL,TM-SX059
€ 47.00
92045B
920451172
ref: 92045B
BEARING-BALL
€ 53.50
92045C
920451200
ref: 92045C
BEARING-BALL,6205CM
€ 22.50
92048
920481057
ref: 92048
RACE,26X33X13
€ 29.50
92049
920491159
ref: 92049
SEAL-OIL,TC32457
€ 8.00
92050
92050082
ref: 92050
OIL SEAL,CHANGE SHAFT
€ 5.50
92065
92065097
ref: 92065
GASKET,DRAIN PLUG BOL (NAS)
€ 1.00
92066
920661174
ref: 92066
PLUG,OIL DRAIN,12X15
€ 4.00
92066A
920661378
ref: 92066A
PLUG,OIL LINE
€ 10.00
92160
921601423
ref: 92160
DAMPER,FR
€ 16.00
92170
921701356
ref: 92170
CLAMP
€ 5.50
92190
921901320
ref: 92190
TUBE
€ 18.00
