CYLINDER HEAD

BJ250C2 ESTRELLA 1996 FRANCE NL AR FG

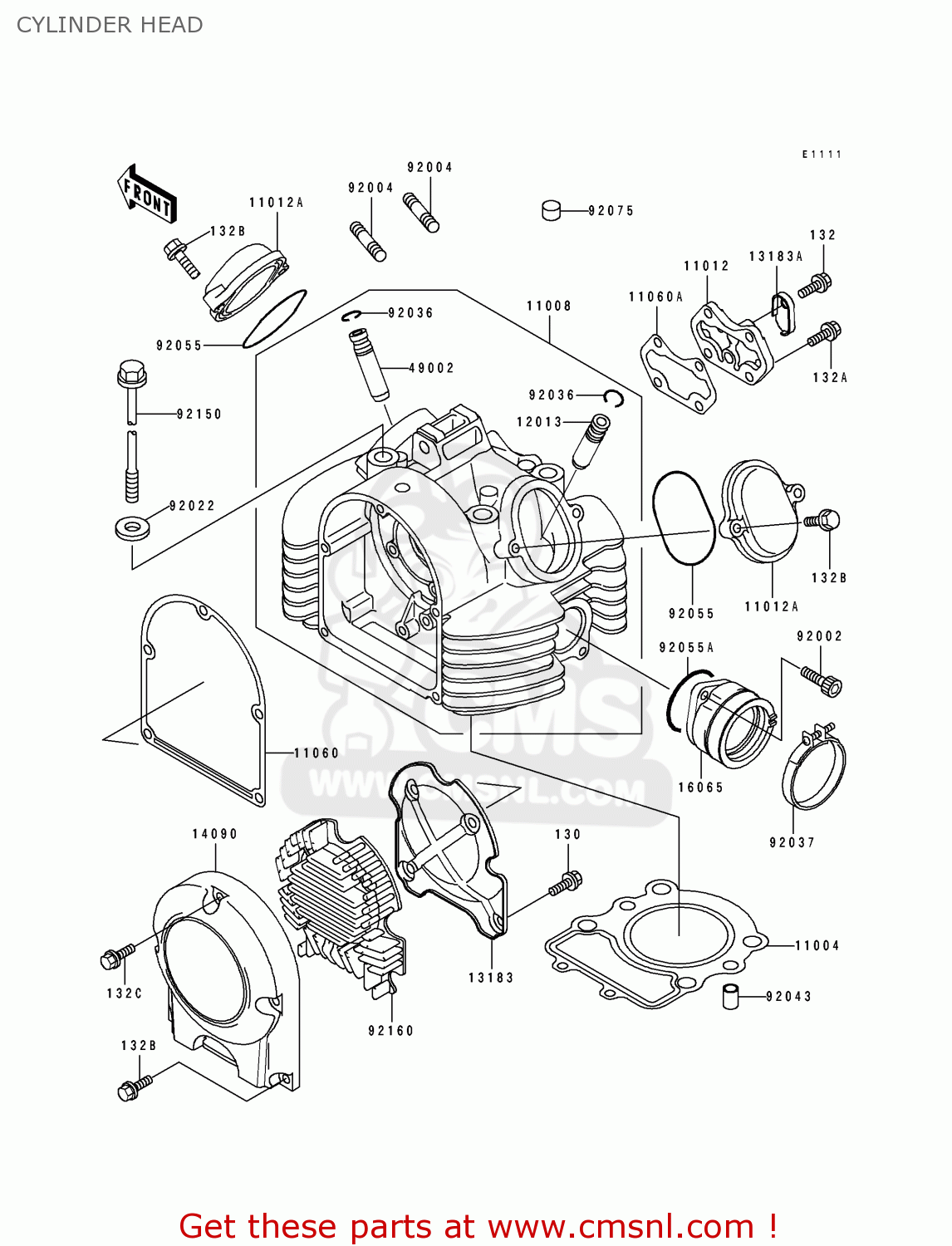

Cylinder head diagram BJ250C2 ESTRELLA 1996 FRANCE NL AR FG

CYLINDER HEAD BJ250C2 ESTRELLA 1996 FRANCE NL AR FG
CYLINDER HEAD BJ250C2 ESTRELLA 1996 FRANCE NL AR FG
CYLINDER HEAD BJ250C2 ESTRELLA 1996 FRANCE NL AR FG
prices are in EUR
ref
part #
description
quantity
130
130H0610
ref: 130
BOLT-FLANGED,6X10
€ 0.50
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
132E0612
€ 3.50
132A
132E0616
ref: 132A
BOLT-FLANGED-SMALL
132E0616
€ 2.50
132B
132E0620
ref: 132B
BOLT-FLANGED-SMALL
132E0620
€ 2.00
132C
132E0630
ref: 132C
BOLT-FLANGED-SMALL
132E0630
€ 3.00
11004
110041238
ref: 11004
GASKET-HEAD (NAS)
€ 28.50
11008
110081269
ref: 11008
HEAD-COMP-CYLINDER
€ 633.50
11012
110121813
ref: 11012
CAP,OIL
€ 48.00
11012A
110121886
ref: 11012A
CAP,ROCKER COVER
€ 24.00
11060
110601272
ref: 11060
GASKET,HEAD COVER (NAS)
110601272
€ 16.00
11060A
110601309
ref: 11060A
GASKET,OIL CAP (NAS)
110601309
€ 9.50
12013
12013009
ref: 12013
GUIDE-VALVE,INTAKE
12013009
€ 18.00
13183
131831827
ref: 13183
PLATE,HEAD COVER
€ 13.50
13183A
131831859
ref: 13183A
PLATE,OIL PIPE
€ 5.00
14090
140901448
ref: 14090
COVER,HEAD
€ 86.00
16065
160651280
ref: 16065
HOLDER-CARBURETOR
160651280
€ 36.50
49002
490021002
ref: 49002
GUIDE,EXHAUST VALVE
490021002
€ 16.00
92002
920021143
ref: 92002
BOLT,6X16
920021143
€ 2.50
92004
920041121
ref: 92004
STUD,8X30
920041121
€ 3.50
92022
92022100
ref: 92022
WASHER
€ 2.50
92036
92036023
ref: 92036
CIRCLIP,VALVE GUIDE
92036023
€ 0.50
92037
920371304
ref: 92037
CLAMP,ID=53,BLACK
920371304
€ 7.00
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
920431037
€ 0.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551295
ref: 92055A
RING-O,38MM
920551295
€ 11.00
92075
92075182
ref: 92075
DAMPER
92075182
€ 2.50
92150
921501589
ref: 92150
BOLT,10X260
€ 19.50
92160
921601352
ref: 92160
DAMPER,HEAD COVER
921601352
€ 48.00
