TRANSMISSION

AR80C8 1990 UNITED KINGDOM

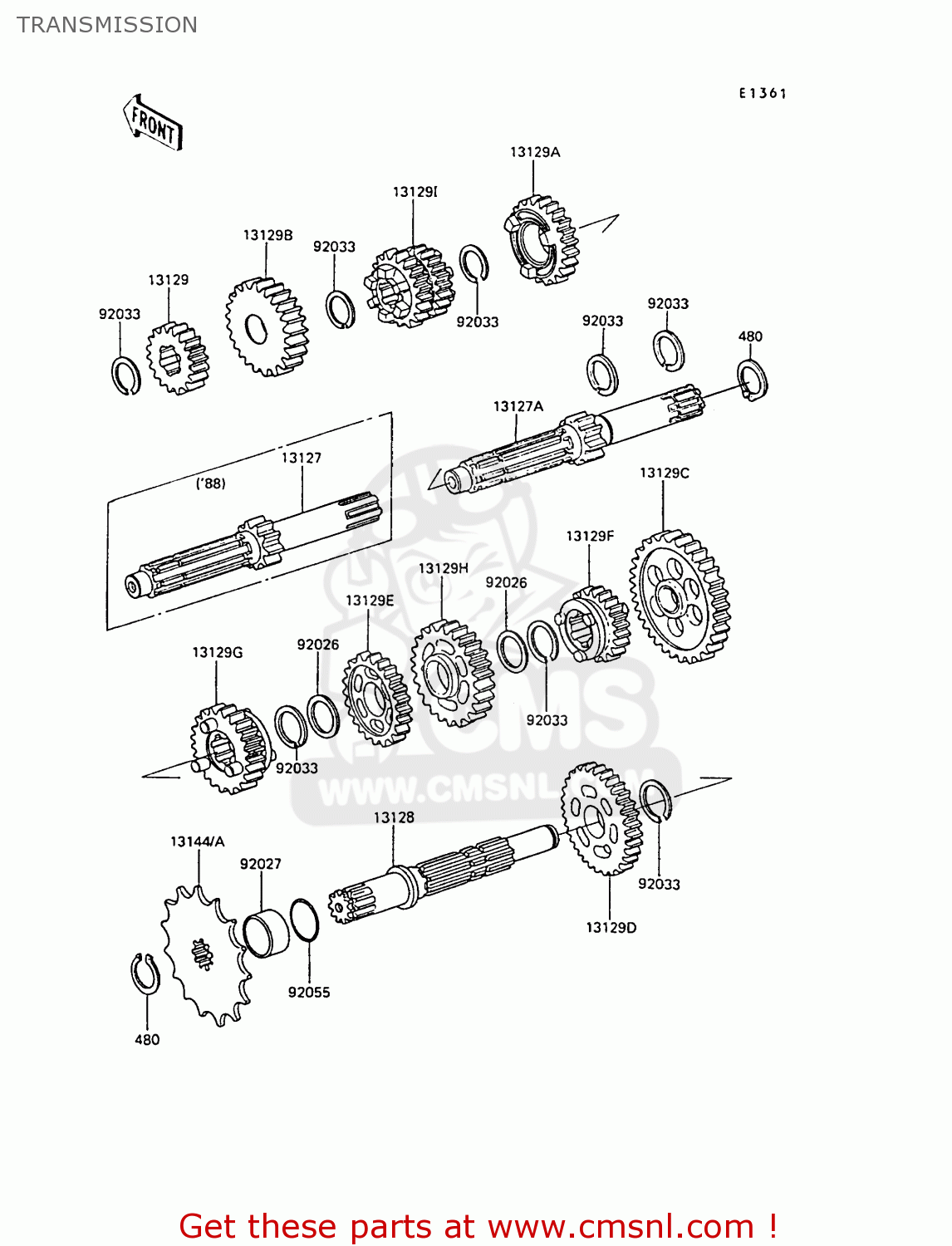

Transmission diagram AR80C8 1990 UNITED KINGDOM

TRANSMISSION AR80C8 1990 UNITED KINGDOM
TRANSMISSION AR80C8 1990 UNITED KINGDOM
TRANSMISSION AR80C8 1990 UNITED KINGDOM
prices are in EUR
ref
part #
description
quantity
480
480J1700
ref: 480
CIRCLIP-TYPE-C,17MM
480J1700
€ 0.50
13127A
131271169
ref: 13127A
SHAFT-TRANSMISSION IN
€ 91.00
13128
131281031
ref: 13128
SHAFT-TRANSMISSION OU
€ 106.00
13129
131291244
ref: 13129
GEAR,INPUT,2ND,18T
€ 45.00
13129A
131291246
ref: 13129A
GEAR,INPUT 5TH,27T
€ 90.00
13129B
131291247
ref: 13129B
GEAR,INPUT TOP,29T
131291247
€ 84.00
13129C
131291248
ref: 13129C
GEAR,OUTPUT,LOW,43T
€ 73.50
13129D
131291249
ref: 13129D
GEAR,OUTPUT 2ND,38T
131291249
€ 56.50
13129E
131291251
ref: 13129E
GEAR,OUTPUT,4TH,31T
€ 69.50
13129F
131291252
ref: 13129F
GEAR,OUTPUT 5TH,29T
€ 79.50
13129G
131291253
ref: 13129G
GEAR,OUTPUT TOP,28T
€ 84.00
13129H
131291338
ref: 13129H
GEAR,OUTPUT 3RD,34T
131291338
€ 56.00
13129I
131291958
ref: 13129I
GEAR,INPUT 3RD&4TH,25
131291958
€ 123.00
13144A
131441045
ref: 13144A
SPROCKET-OUTPUT,15T
131441045
€ 9.00
92026
920261037
ref: 92026
SPACER,17.2X23X0.5
920261037
€ 2.50
92027
920271289
ref: 92027
COLLAR,17X22X10
920271289
€ 7.50
92033
920331060
ref: 92033
RING,SNAP
920331060
€ 2.50
92055
920551097
ref: 92055
RING-O,17MM
920551097
€ 3.00
