CHASSIS ELECTRICAL EQUIPMENT
AR80C8 1990 UNITED KINGDOM

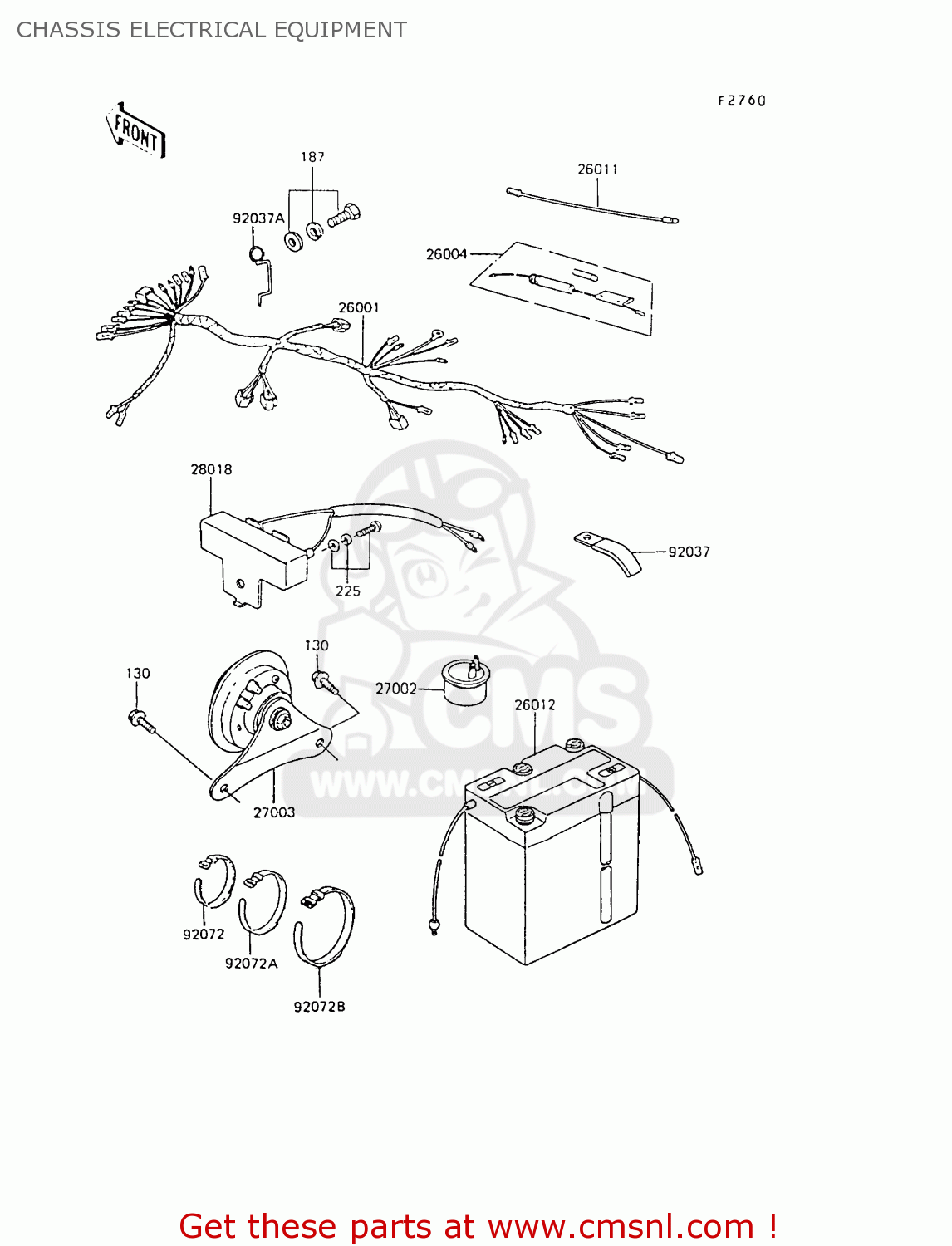

Chassis electrical equipment diagram AR80C8 1990 UNITED KINGDOM
CHASSIS ELECTRICAL EQUIPMENT AR80C8 1990 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
130
130C0612
ref: 130
BOLT-FLANGED,6X12
€ 1.50
187
187C0614
ref: 187
BOLT-UPSET-WSP
€ 2.50
225
225B0612
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
26001
260011491
ref: 26001
HARNESS,MAIN
€ 70.00
26004
26004010
ref: 26004
FUSE ASSY
€ 13.00
26011
260111183
ref: 26011
WIRE-LEAD,TAIL LAMP
€ 2.50
26012
260121194
ref: 26012
BATTERY, 6V 6AH
€ 46.50
27002
27002019
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 24.00
27003
270031031
ref: 27003
HORN
€ 30.00
28018
280181024
ref: 28018
RESISTOR
€ 17.50
92037
920371324
ref: 92037
CLAMP,L=80
€ 3.00
92037A
92037203
ref: 92037A
CLAMP
€ 6.00
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072031
ref: 92072A
BAND,MIDDLE
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
€ 3.00
