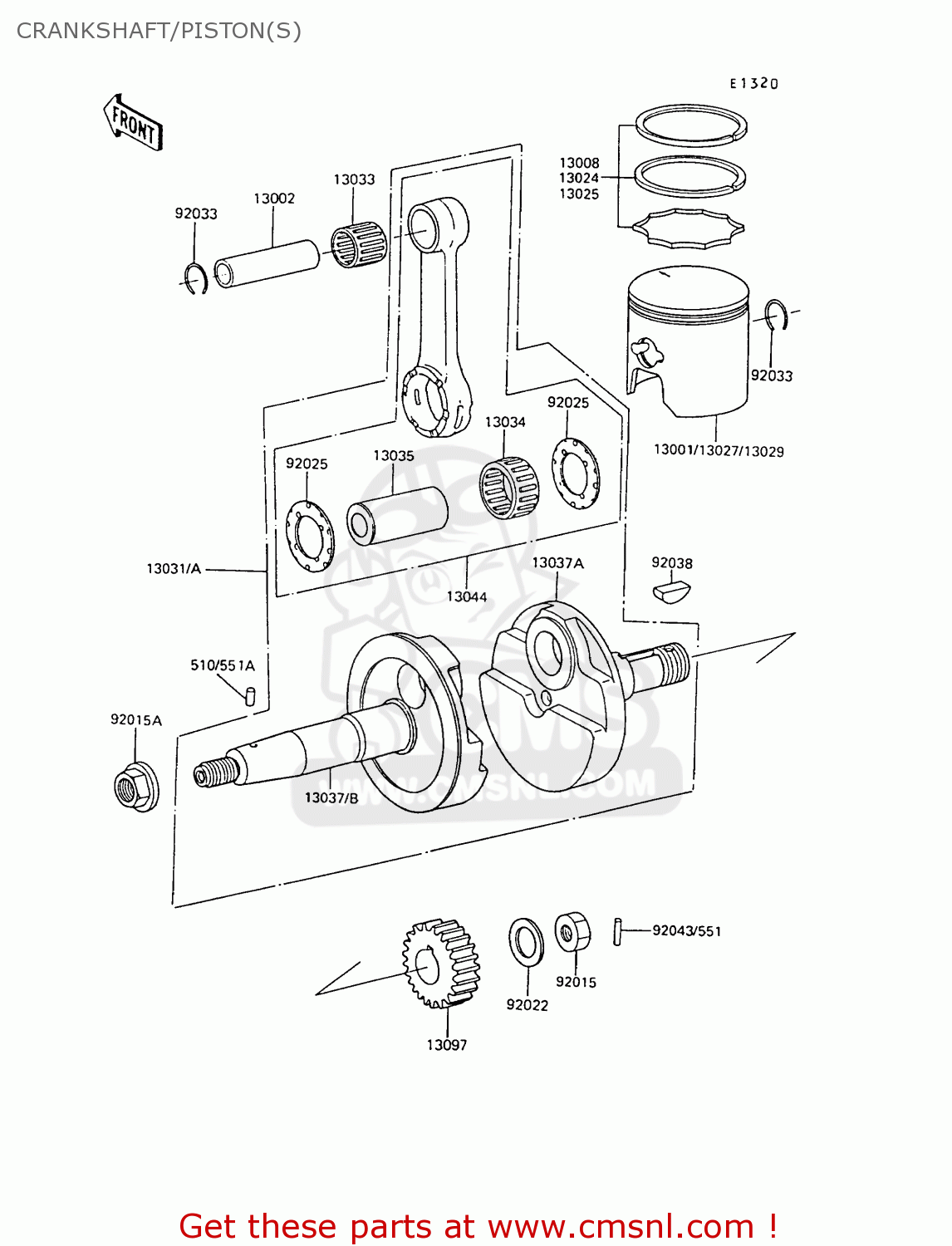

CRANKSHAFT/PISTON(S)

ref

part #

description

quantity

510

510A3200
ref: 510

KEY-WOODRUFF

€ 1.50

13001

130011281
ref: 13001

PISTON-ENGINE,STD

€ 35.50

13002

130021076
ref: 13002

PIN-PISTON

€ 15.50

13008

130081123
ref: 13008

RING-SET-PISTON,STD

€ 42.00

13024

130241084
ref: 13024

RING-SET-PISTON LL,O/

€ 42.00

13025

130251098
ref: 13025

RING-SET-PISTON L,O/S

€ 54.00

13027

130271155
ref: 13027

PISTON-ENGINE LL,O/S

€ 44.50

13029

130291178
ref: 13029

PISTON-ENGINE L,O/S 0

€ 44.50

13031A

130311295
ref: 13031A

CRANKSHAFT-COMP

€ 291.50

13033

130331009
ref: 13033

BEARING-SMALL END

€ 20.50

13034

130341029
ref: 13034

BEARING-BIG END,PK18X

€ 28.50

13035

130351055
ref: 13035

PIN-CRANK

€ 17.50

13037A

130371325
ref: 13037A

CRANKSHAFT,RH

€ 145.50

13037B

130371376
ref: 13037B

CRANKSHAFT,LH

€ 145.50

13044

130445020
ref: 13044

SET-CONNECTING ROD

€ 113.50

13097

130971228
ref: 13097

GEAR-PRIMARY SPUR

€ 81.00

92015

92015072
ref: 92015

NUT,LOCK,16MM

€ 4.50

92015A

92015077
ref: 92015A

NUT, 10MM

€ 3.00

92022

920221356
ref: 92022

WASHER,16.3X29X1.75

€ 4.50

92025

920251199
ref: 92025

SHIM,CRANK SHAFT

€ 4.50

92033

92036007
ref: 92033

CIRCLIP-PISTON PIN

€ 2.50

92038

92038003
ref: 92038

WOODRUFF KEY-PRY PINI

€ 1.50

92043

92042035
ref: 92043

PIN,DOWEL,2.5X12.8

€ 2.50

all assemblies
