TAILLIGHT
AR80A1 1982 USA

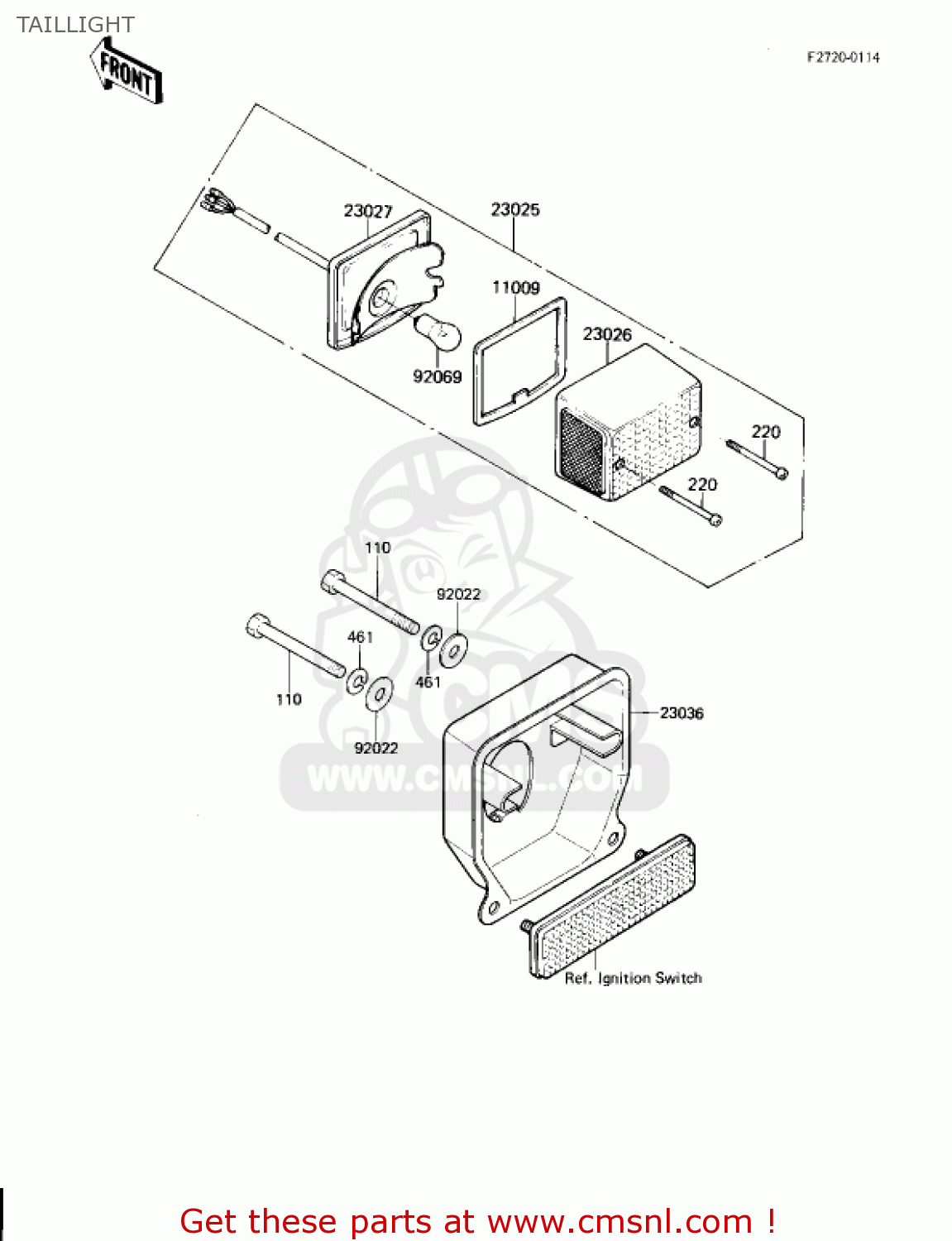

Taillight diagram AR80A1 1982 USA
TAILLIGHT AR80A1 1982 USA
×
prices are in EUR
ref
part #
description
quantity
11009
110091078
ref: 11009
GASKET,TAIL LAMP LENS (NAS)
€ 4.50
23025
230251032
ref: 23025
TAIL LAMP
€ 83.50
23026
230261003
ref: 23026
LENS,TAIL LAMP
€ 50.50
23027
230271020
ref: 23027
BODY-COMP-TAIL LAMP
€ 71.50
23036
230361049
ref: 23036
TAIL LAMP BRACKET
€ 10.50
92022
92022024
ref: 92022
WASHER,7X16X1.2
€ 2.50
92069
92069074
ref: 92069
BULB,6V-32X3CP
€ 4.50
110
110G0650
ref: 110
BOLT,HEX HEAD,6X50
€ 1.00
220
220R0440
ref: 220
SCREW-PAN-CROS,4X40
€ 3.00
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
