CRANKCASE
AR80A1 1982 USA

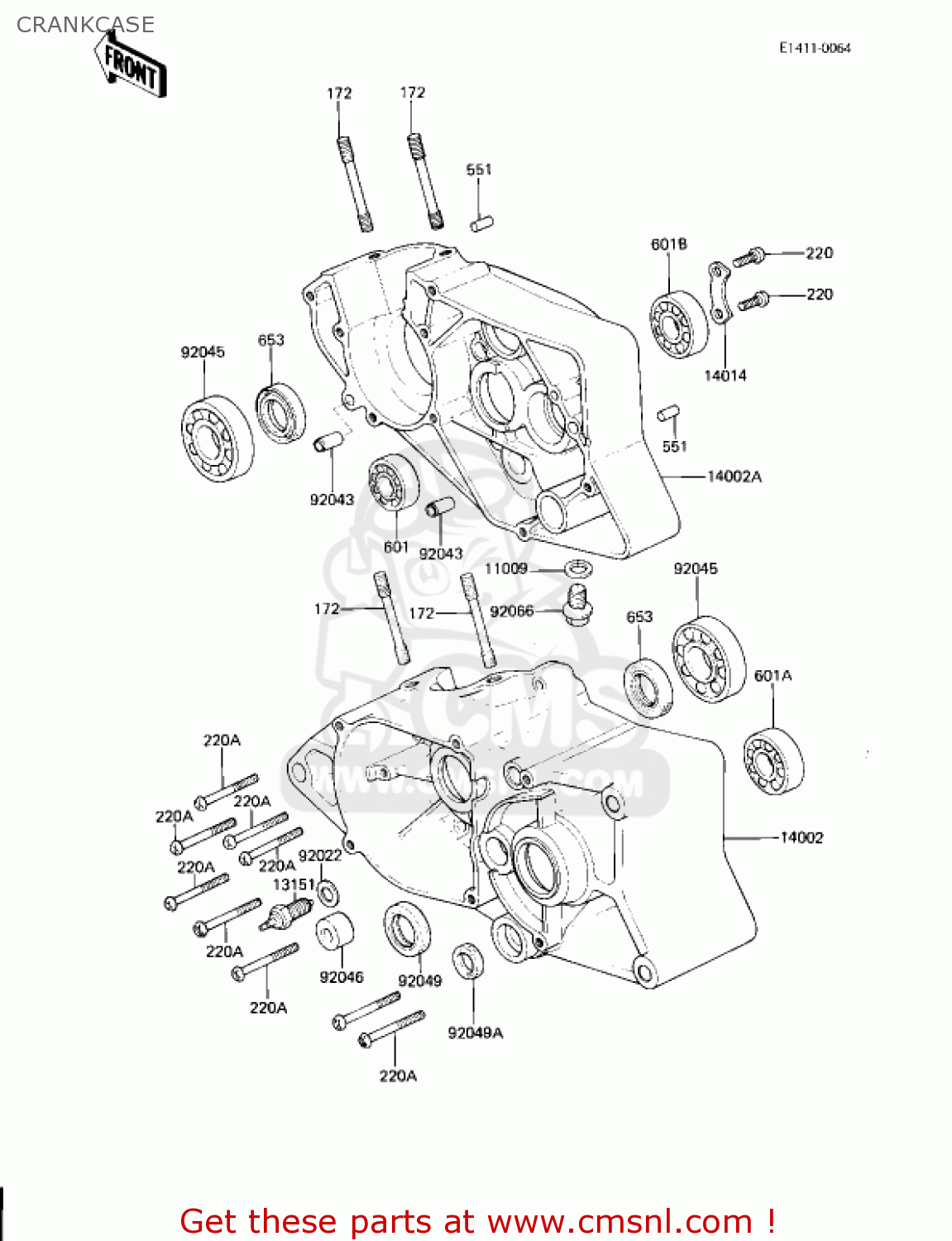

Crankcase diagram AR80A1 1982 USA
CRANKCASE AR80A1 1982 USA
×
prices are in EUR
ref
part #
description
quantity
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
€ 2.50
13151
131511008
ref: 13151
SWITCH,NEUTRAL
€ 16.00
14002
140021199
ref: 14002
CRANKCASE,LH
€ 104.00
14002A
140021200
ref: 14002A
CRANKCASE,RH
€ 104.00
14014
140141014
ref: 14014
PLATE-POSITION
€ 2.50
92022
92065058
ref: 92022
GASKET, 10,5X16X1 (NAS)
€ 2.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92045
920451059
ref: 92045
BEARING-BALL,R-6304C3
€ 29.00
92046
920461034
ref: 92046
BEARING-NEEDLE,BK1312
€ 18.00
92049
920491048
ref: 92049
OIL SEAL,SC22325
€ 6.00
92049A
92051005A
ref: 92049A
OIL SEAL,TB13225.5
€ 5.50
92066
920661241
ref: 92066
PLUG
€ 4.00
172
172G0890
ref: 172
BOLT-STUD
€ 4.50
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
220A
220B0640
ref: 220A
SCREW-PAN HEAD,6X40
€ 2.00
551
551A0612
ref: 551
PIN-DOWEL,6X12
€ 0.50
601
601B6201
ref: 601
BEARING-BALL,#6201C3
€ 7.00
601A
601B6203
ref: 601A
BEARING-BALL,#6203C3
€ 10.50
601B
601B6203Z
ref: 601B
BEARING-BALL,#6203ZC3
€ 24.00
653
653B203508
ref: 653
OIL SEAL,TB20358
€ 12.00
