STEP
AR50C3 1985 EUROPE UK GR ST

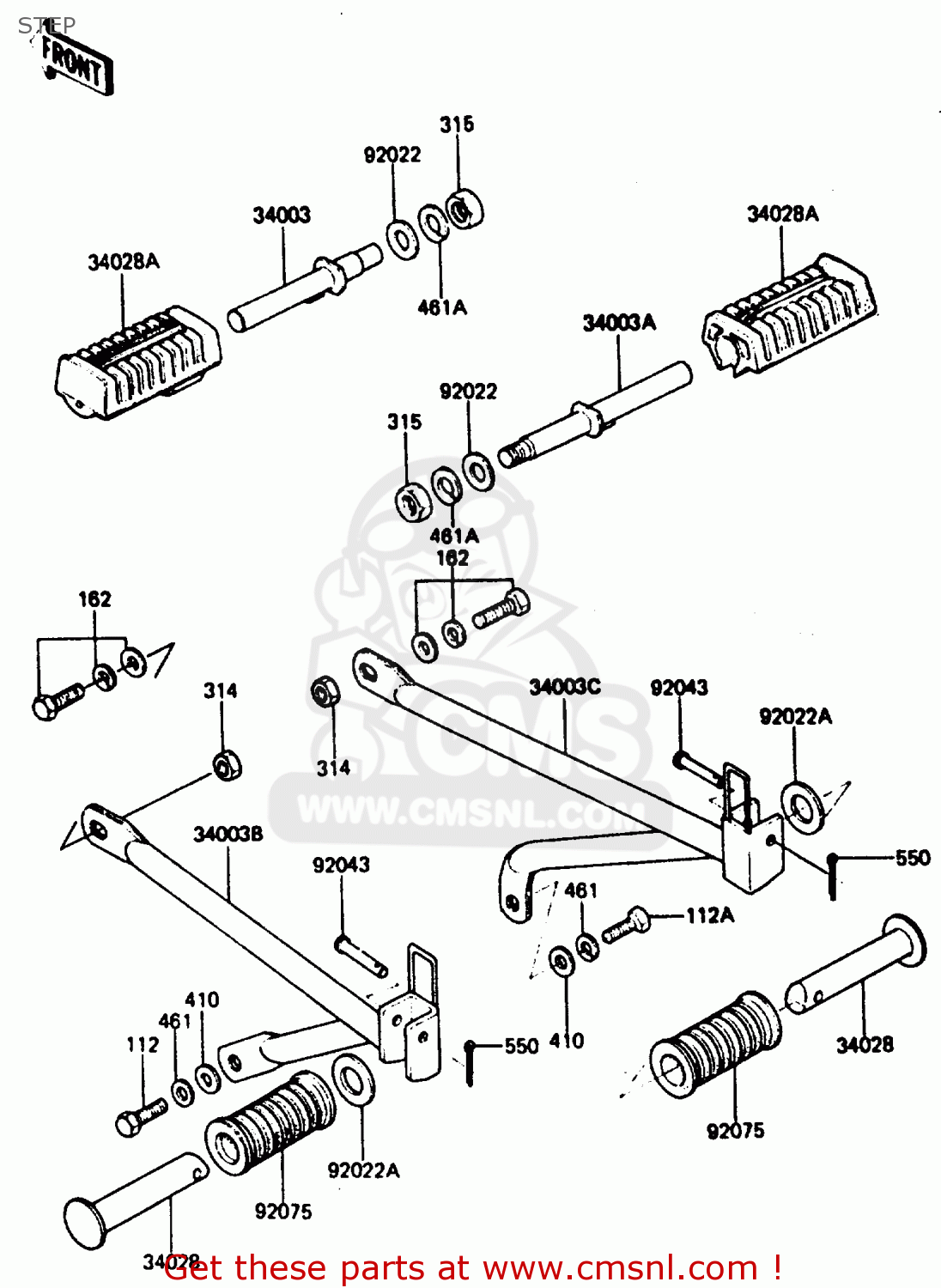

Step diagram AR50C3 1985 EUROPE UK GR ST
STEP AR50C3 1985 EUROPE UK GR ST
×
prices are in EUR
ref
part #
description
quantity
34003
340031097
ref: 34003
HOLDER-STEP,FR,LH
€ 20.50
34003A
340031098
ref: 34003A
HOLDER-STEP,FR,RH
€ 20.00
34003B
340031208
ref: 34003B
EU, GR, UK
HOLDER-STEP,RR,LH
€ 39.00
14003C
340031209
ref: 14003C
EU, GR, UK
HOLDER-STEP,RR,RH
€ 39.00
34028
34028009
ref: 34028
EU, GR, UK
BAR-REAR FOOTREST
€ 24.00
34028A
340281032
ref: 34028A
STEP
€ 11.50
92022
920221343
ref: 92022
WASHER,12.5X28X3.0
€ 3.00
92022A
920221568
ref: 92022A
EU, GR, UK
WASHER,20X30X2.3
€ 2.50
92043
92043079
ref: 92043
EU, GR, UK
PIN-REAR FOOTREST FIT
€ 5.50
92076
92076020
ref: 92076
EU, GR, UK
DAMPER
€ 7.50
112
112C1022
ref: 112
EU, GR, UK
BOLT-UPSET,10X22
€ 2.50
112A
112C1025
ref: 112A
EU, GR, UK
BOLT-UPSET,10X25
€ 2.50
162
162C1025
ref: 162
EU, GR, UK
BOLT-FINE-WSP
€ 1.50
314
314C1000
ref: 314
EU, GR, UK
NUT-HEX-FINE,10MM,BLA
€ 2.50
315
315C1200
ref: 315
NUT-HEX-FINE
€ 3.00
410
410F1000
ref: 410
EU, GR, UK
WASHER-PLAIN-SMALL,10
€ 2.50
461
461K1000
ref: 461
EU, GR, UK
461K1000
461A
461K1200
ref: 461A
461K1200
550
550D2015
ref: 550
EU, GR, UK
PIN-COTTER,2.0X15
€ 1.00
