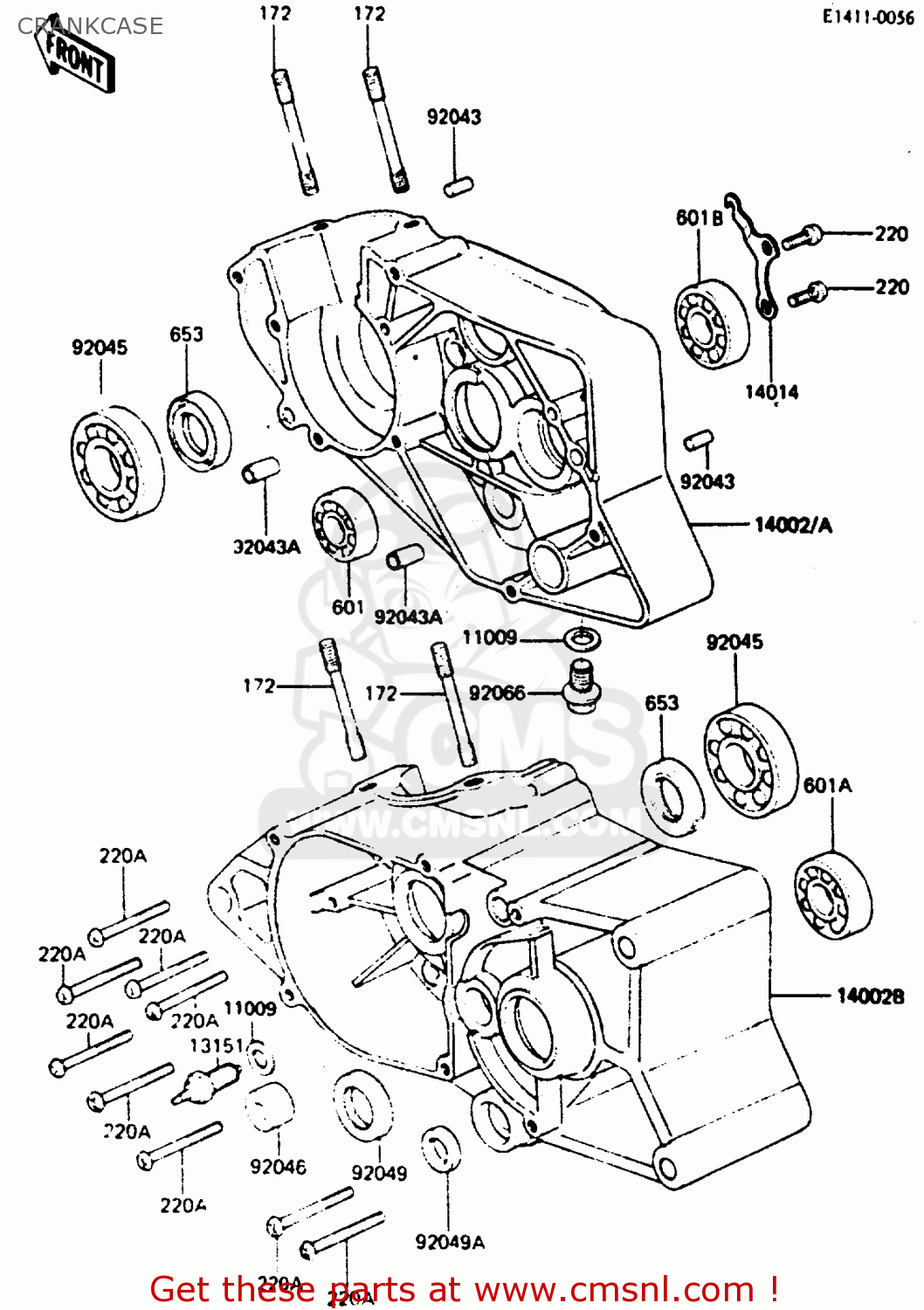

CRANKCASE

ref

part #

description

quantity

11009

92065058
ref: 11009

GASKET, 10,5X16X1 (NAS)

€ 2.50

13151

131511008
ref: 13151

SWITCH,NEUTRAL

€ 16.00

14002

140021122
ref: 14002
EU, GR, ST

CRANKCASE

€ 221.50

14002A

140021145
ref: 14002A
UK

CRANKCASE,RH

€ 151.50

14002B

140021188
ref: 14002B

CRANKCASE,LH

€ 211.00

14014

140141061
ref: 14014

PLATE-POSITION

€ 2.00

92043

920431262
ref: 92043

PIN,DOWEL,4.2X6X12

€ 2.50

92043A

920431263
ref: 92043A

PIN,DOWEL,6.2X8X14

€ 0.50

92045

920451059
ref: 92045

BEARING-BALL,R-6304C3

€ 29.00

92046

920461034
ref: 92046

BEARING-NEEDLE,BK1312

€ 18.00

92049

920491048
ref: 92049

OIL SEAL,SC22325

€ 6.00

92049A

92051005A
ref: 92049A

OIL SEAL,TB13225.5

€ 5.50

92066

920661034
ref: 92066

PLUG,FRAME END

€ 3.00

172

172G0890
ref: 172

BOLT-STUD

€ 4.50

220

220B0614
ref: 220

SCREW-PAN HEAD,6X14

€ 2.00

220A

220C0640
ref: 220A

SCREW-PAN-CROS,6X40,B

€ 2.50

601

601B6201
ref: 601

BEARING-BALL,#6201C3

€ 7.00

601A

601B6203
ref: 601A

BEARING-BALL,#6203C3

€ 10.50

601B

601B6203Z
ref: 601B

BEARING-BALL,#6203ZC3

€ 24.00

633

653B203508
ref: 633

OIL SEAL,TB20358

€ 12.00

all assemblies
