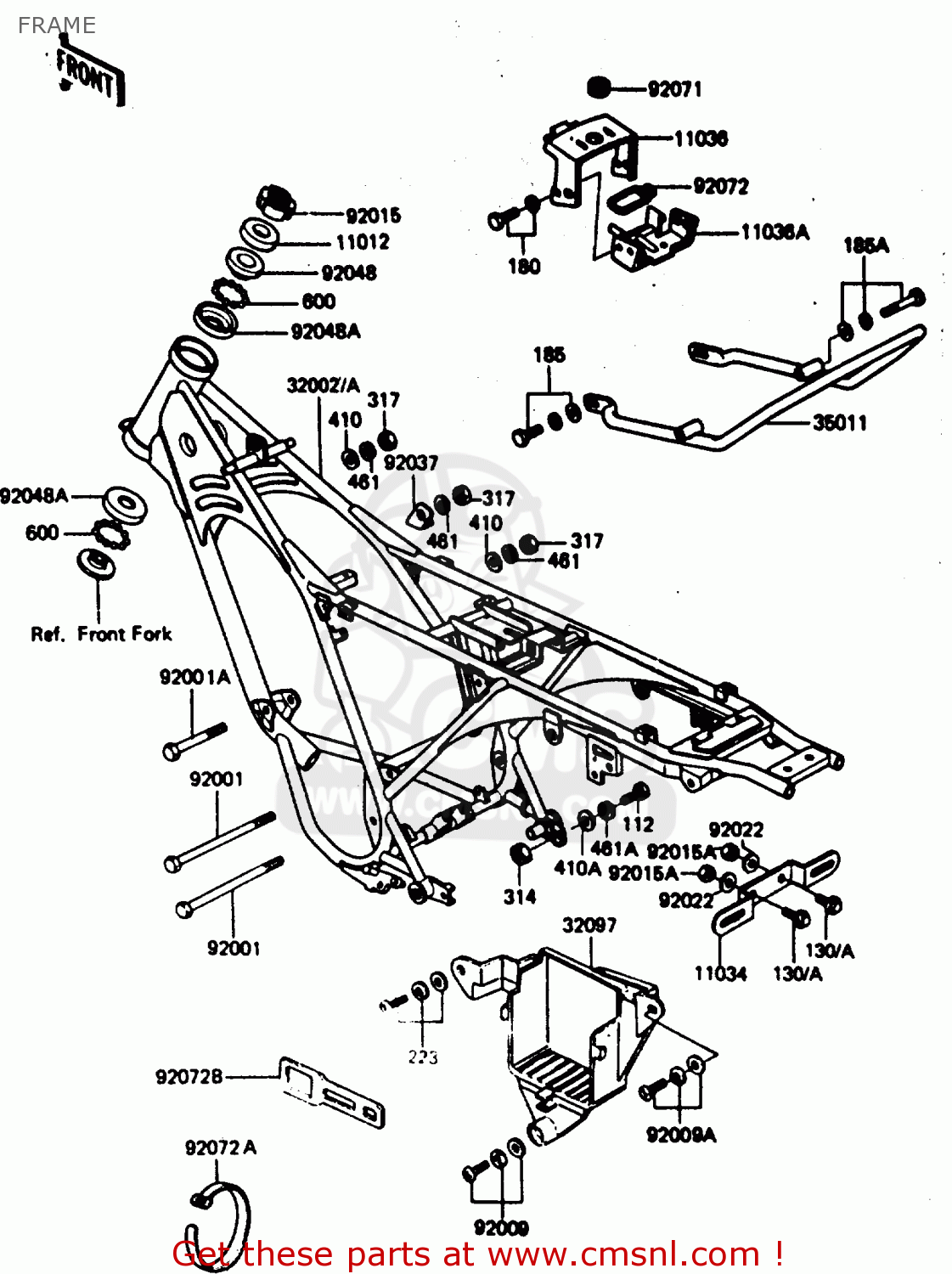

FRAME

ref

part #

description

quantity

11012

46098004
ref: 11012

CAP-STEERING STEM

€ 4.00

11034

110341989
ref: 11034

BRACKET,NUMBER PLATE

€ 12.50

11036

110361856
ref: 11036

BRACKET-A,SEAT COVER,

€ 27.50

11036A

110361857
ref: 11036A

BRACKET-A,SEAT COVER,

€ 20.50

32002

320021702
ref: 32002
EU, GR, UK

FRAME-COMP

€ 441.00

32002A

320021703
ref: 32002A
ST

FRAME-COMP

€ 367.50

32097

320971032
ref: 32097

CASE-BATTERY

€ 24.50

35011

350111157
ref: 35011

STAY,REAR

€ 51.50

92001

920011669
ref: 92001

BOLT,8X130

€ 5.50

92001A

920011670
ref: 92001A

BOLT,8X70

€ 6.50

92009

920091275
ref: 92009

SCREW,6X14

€ 2.50

92009A

920091283
ref: 92009A

SCREW-PAN-WSP-CROS,6X

€ 2.50

92015

920151382
ref: 92015

NUT,STEERING STEM LOC

€ 10.50

92015A

92017014
ref: 92015A

NUT,LOCK,6MM

€ 4.00

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92037

920371261
ref: 92037

CLAMP,HOSE

€ 2.50

92048

92047014
ref: 92048

RACE,STEERING STEM BE

€ 12.50

92048A

92048009
ref: 92048A

RACE,STRG STM

€ 14.00

92071

920711049
ref: 92071

GROMMET,SEAT COVER

€ 2.00

92072

92072010
ref: 92072

BAND,TOOL

€ 4.50

92072A

92072030
ref: 92072A

BAND,SHORT

€ 3.00

92072B

920721050
ref: 92072B

BAND,BATTERY

€ 5.50

112

112C1022
ref: 112
ST

BOLT-UPSET,10X22

€ 2.50

130

130D0612
ref: 130
UK

BOLT,FLANGED

€ 0.50

130A

130D0616
ref: 130A
EU, GR, ST

BOLT-FLANGED

€ 0.50

180

180B0612
ref: 180

BOLT-UPSET-WS,6X12

€ 2.50

1803

183C0816
ref: 1803

BOLT-UPSET-WS-SMALL

€ 2.50

183A

185C0855
ref: 183A

BOLT-UPSET-WSP-SMALL

€ 2.50

223

223B0616
ref: 223

SCREW-PAN-WS-CROS,6X1

€ 3.00

314

314C1000
ref: 314
ST

NUT-HEX-FINE,10MM,BLA

€ 2.50

317

317C0800
ref: 317

NUT-HEX-SMALL,8MM,BLA

€ 0.50

410

410F0800
ref: 410

WASHER-PLANE-SMALL,8M

€ 3.00

410A

410F1000
ref: 410A
ST

WASHER-PLAIN-SMALL,10

€ 2.50

461

461K0800
ref: 461

WASHER-SPRING,8MM,BLA

€ 1.50

461A

461K1000
ref: 461A
ST

461K1000

400

600A0600
ref: 400

BALL-STEEL,3/16

€ 0.50
