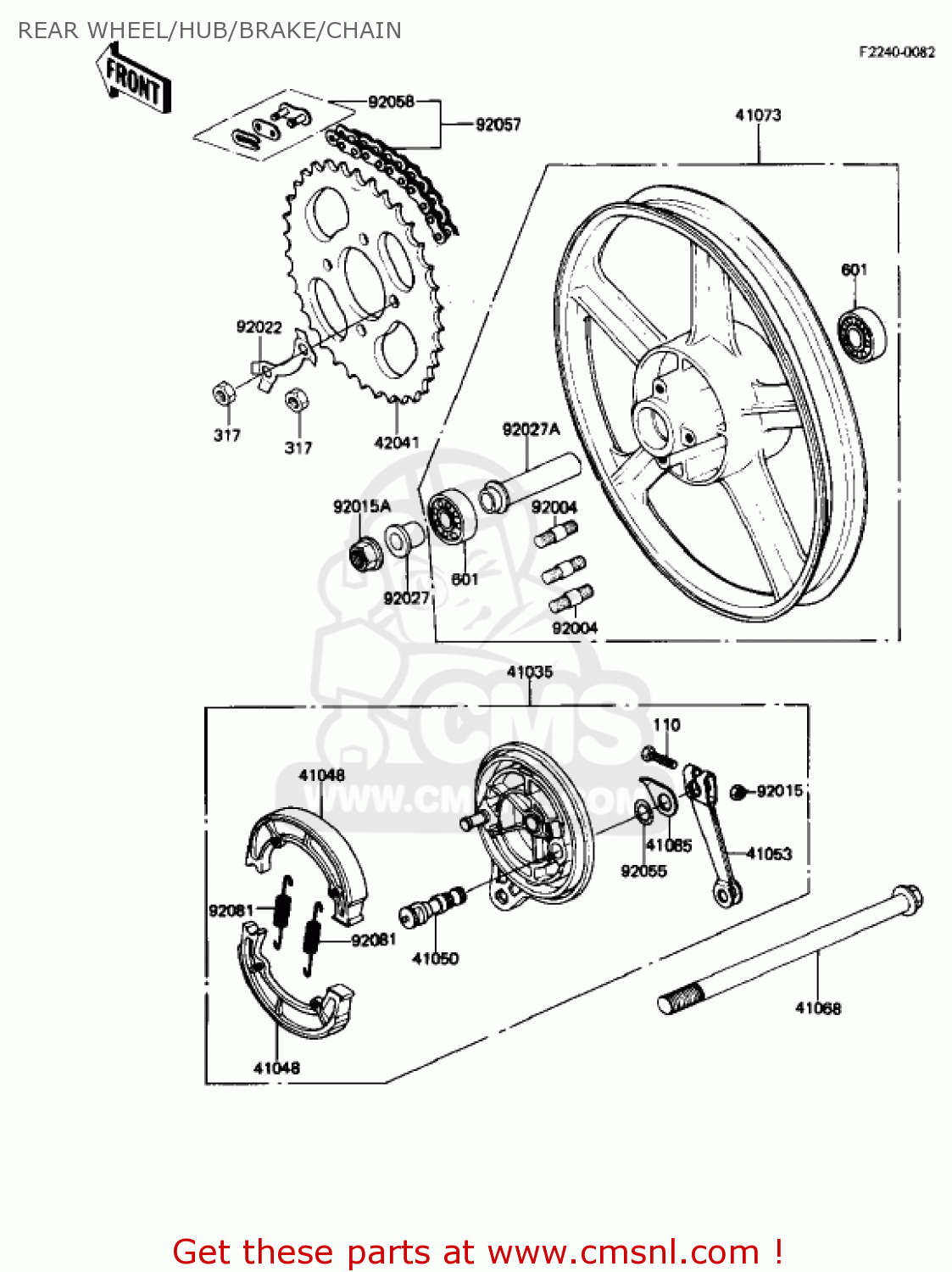

REAR WHEEL/HUB/BRAKE/CHAIN

ref

part #

description

quantity

41035

410351048
ref: 41035

PANEL-ASSY-BRAKE

€ 146.50

41048

410481085
ref: 41048

SHOE-BRAKE (NAS)

€ 13.00

41050

41050012
ref: 41050

CAM-BRAKE

€ 18.00

41053

410531002
ref: 41053

LEVER-BRAKE CAM

€ 16.00

41068

410681093
ref: 41068

AXLE,RR,L=200

€ 19.50

41073

410731133
ref: 41073

WHEEL-ASSY,SOLID

€ 471.50

41085

41085003
ref: 41085

INDICATOR,BRAKE SHOE

€ 9.00

42041

420411067
ref: 42041

SPROCKET-HUB,46T

€ 22.50

92004

920041014
ref: 92004

STUD,8X15,

€ 2.50

92015

41072007
ref: 92015

NUT,6MM

€ 2.50

92015A

920151156
ref: 92015A

NUT,12MM

€ 4.50

92022

920221291
ref: 92022

WASHER

€ 2.00

92027

920271317
ref: 92027

COLLAR,12.1X22X20

€ 8.50

92027A

920271319
ref: 92027A

COLLAR,L=85

€ 8.50

92055

92055004
ref: 92055

RING-O,BRAKE CAM

€ 3.00

92057

920571333
ref: 92057

CHAIN,DRIVE,EK420RX11

€ 15.50

92058

920581019
ref: 92058

JOINT-CHAIN

€ 3.00

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

110

112G0630
ref: 110

BOLT-UPSET

€ 1.00

317

317B0800
ref: 317

NUT,8M/M

€ 0.50

601

601B6301Z
ref: 601

BEARING-BALL,#6301ZC3

€ 15.00
