CHASSIS ELECTRICAL EQUIPMENT
AR50A1 1982 USA

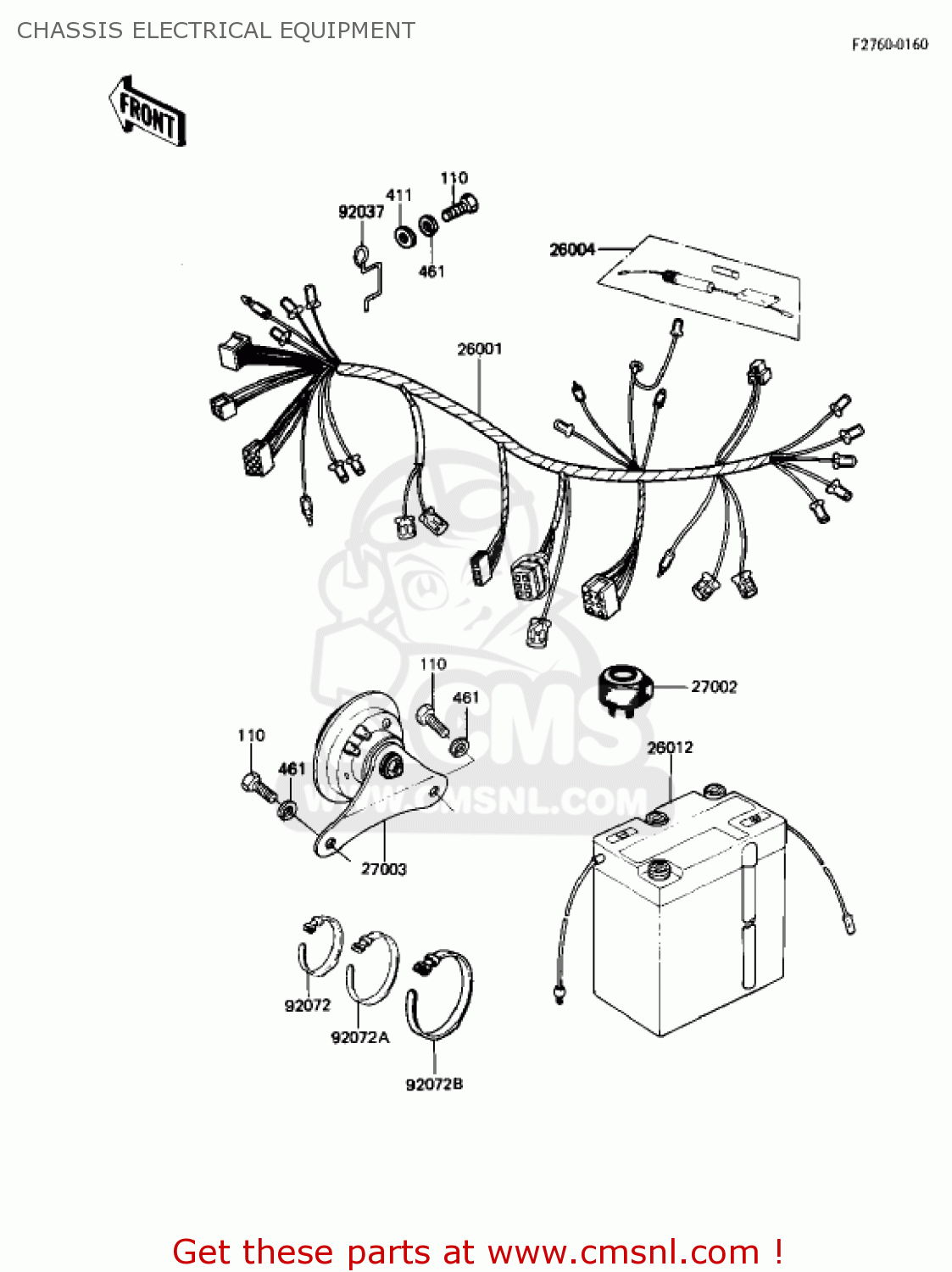

Chassis electrical equipment diagram AR50A1 1982 USA
CHASSIS ELECTRICAL EQUIPMENT AR50A1 1982 USA
×
prices are in EUR
ref
part #
description
quantity
26001
260011382
ref: 26001
HARNESS,MAIN
€ 62.50
26004
26004010
ref: 26004
FUSE ASSY
€ 13.00
26012
260121047
ref: 26012
BATTERY 6V6AH 6N6-1C
€ 46.50
27002
27002013
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 27.00
27003
270031031
ref: 27003
HORN
€ 30.00
92037
92037203
ref: 92037
CLAMP
€ 6.00
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072031
ref: 92072A
BAND,MIDDLE
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
€ 3.00
110
112B0614
ref: 110
BOLT-UPSET 6X14
€ 2.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
