CARBURETOR
AR50A1 1982 USA

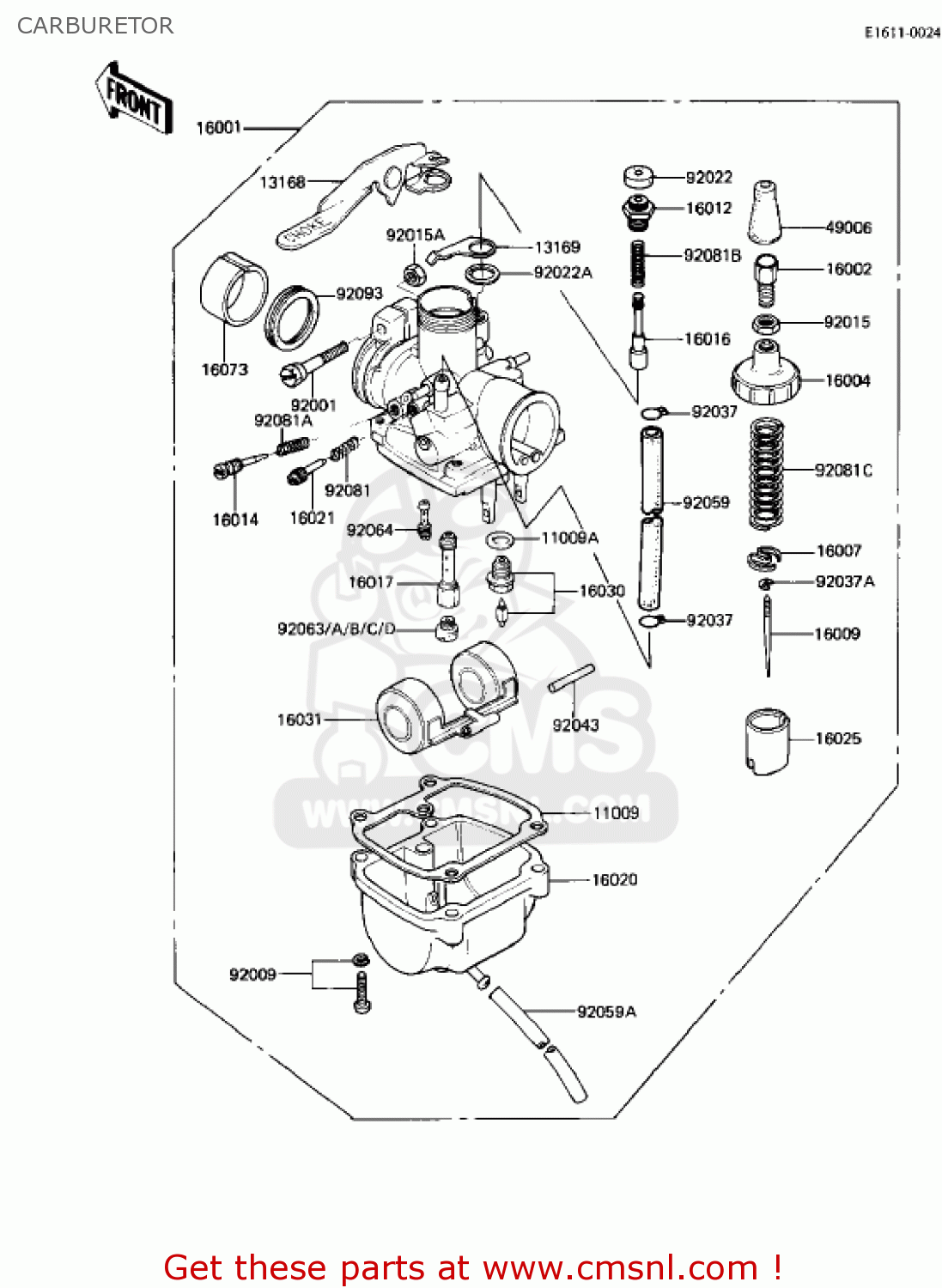

Carburetor diagram AR50A1 1982 USA
CARBURETOR AR50A1 1982 USA
×
prices are in EUR
ref
part #
description
quantity
11009
16019011
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 10.00
11009A
16029002
ref: 11009A
WASHER-VALVE SEAT
€ 2.50
13168
131681347
ref: 13168
LEVER,STARTER
€ 14.50
13169
131691437
ref: 13169
PLATE,STARTER PLUNGER
€ 6.00
16001
160011340
ref: 16001
CARBURETOR
€ 223.00
16002
160021008
ref: 16002
ADJUSTER-CABLE
€ 6.50
16004
160041011
ref: 16004
CAP-CHAMBER
€ 34.50
16007
160071043
ref: 16007
SEAT-SPRING
€ 3.00
16009
160091092
ref: 16009
NEEDLE-JET,3I7-3
€ 22.50
16012
16012016
ref: 16012
CAP-STARTER PLUNGER
€ 6.50
16014
160141030
ref: 16014
SCREW-PILOT AIR
€ 9.50
16016
160161002
ref: 16016
PLUNGER STARTER
€ 23.50
16017
160171089
ref: 16017
JET-NEEDLE,D8
€ 30.50
16020
160201001
ref: 16020
CHAMBER FLOAT
€ 40.00
16021
160211036
ref: 16021
SCREW-THROTTLE STOP
€ 10.00
16025
160251059
ref: 16025
VALVE-THROTTLE,CA2.0
€ 65.00
16030
160301017
ref: 16030
VALVE-FLOAT
€ 31.00
16031
160311014
ref: 16031
FLOAT
€ 31.50
16073
160731011
ref: 16073
INSULATOR
€ 8.00
49006
16036007
ref: 49006
BOOT,CABLE ADJUSTER
€ 10.50
92001
920011476
ref: 92001
BOLT,CARBURETOR CLAMP
€ 3.00
92009
16033012
ref: 92009
SCREW-FLOAT CHAMBER
€ 1.00
92015
16003006
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92015A
920151154
ref: 92015A
NUT
€ 2.50
92022
16039015
ref: 92022
CAP,STARTER PLUNGER
€ 4.50
92022A
920221271
ref: 92022A
WASHER
€ 3.00
92037
92037072
ref: 92037
CLAMP,TUBE
€ 4.00
92037A
920371272
ref: 92037A
CLAMP
€ 4.00
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92059
920591023
ref: 92059
HOSE,FUEL TAP DIAPHRA
€ 17.00
92059A
920591308
ref: 92059A
TUBE,3X5X250,BLACK
€ 5.50
92063
92063075
ref: 92063
MAIN JET,#112.5R
€ 10.00
92063A
92063076
ref: 92063A
MAIN JET,#115R
€ 5.50
92063B
92063077
ref: 92063B
JET-MAIN,#117.5R
€ 10.00
92063C
92063078
ref: 92063C
MAIN JET,#120R
€ 11.50
92063D
920631033
ref: 92063D
JET-MAIN,#A100R
€ 17.00
92064
92064020
ref: 92064
JET-PILOT,#17.5
€ 13.50
92081
16022007
ref: 92081
SPRING-THR STOP SCREW
€ 5.50
92081A
920811153
ref: 92081A
SPRING,AIR SCREW
€ 3.00
92081B
920811398
ref: 92081B
SPRING,STARTER PLUNGE
€ 4.50
92081C
920811399
ref: 92081C
SPRING,THROTTLE VALVE
€ 5.50
92093
920931062
ref: 92093
SEAL
€ 5.50
