STEP
AR125B3 1986 UNITED KINGDOM FRANCE

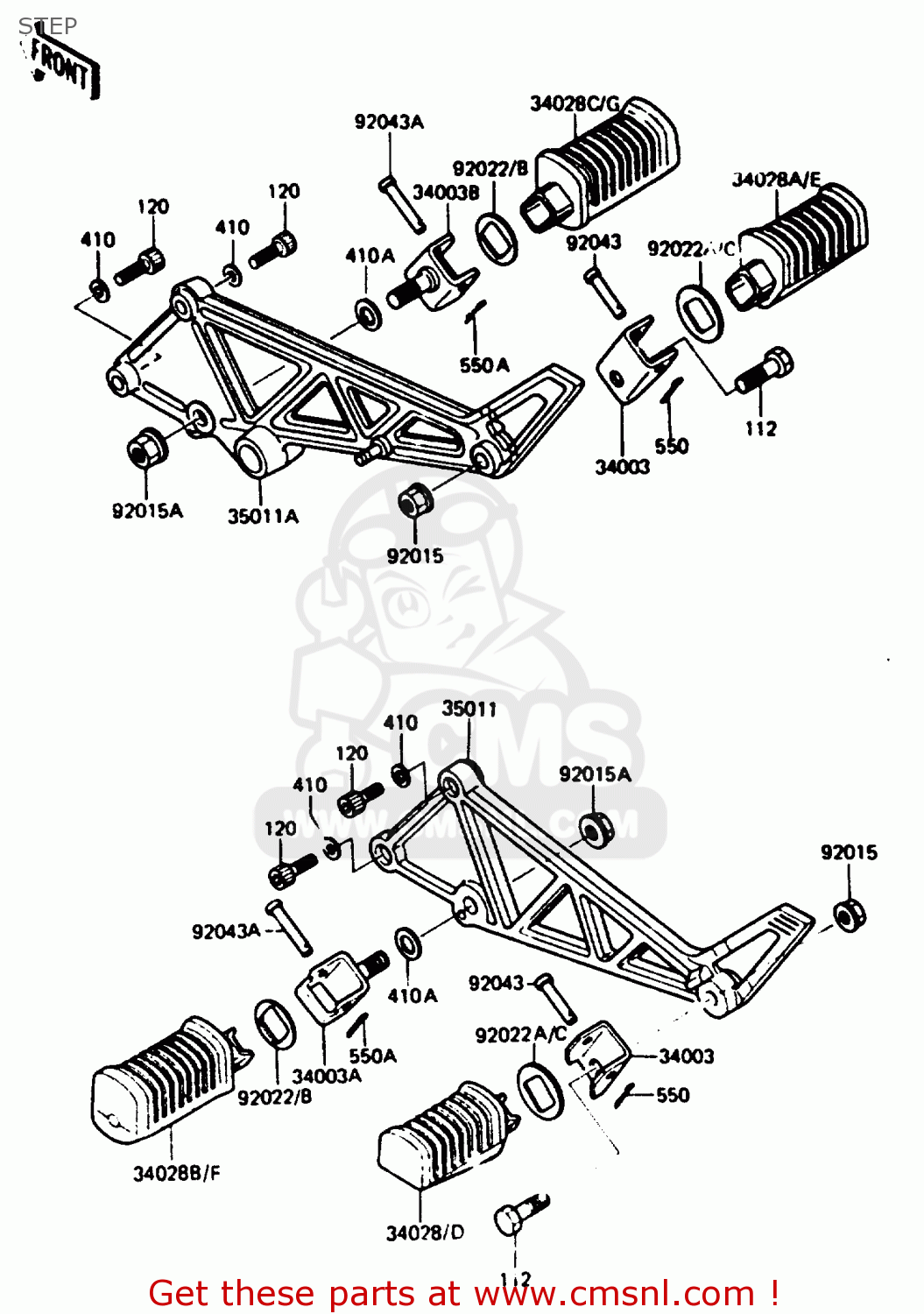

Step diagram AR125B3 1986 UNITED KINGDOM FRANCE
STEP AR125B3 1986 UNITED KINGDOM FRANCE
×
prices are in EUR
ref
part #
description
quantity
34003
340031025
ref: 34003
HOLDER-STEP,RR
€ 18.00
34003A
340031151
ref: 34003A
HOLDER-STEP,LH
€ 27.50
34003B
340031152
ref: 34003B
HOLDER-STEP,RH
€ 19.50
34028D
340281193
ref: 34028D
STEP,FR,LH
€ 35.50
34028E
340281196
ref: 34028E
STEP,RR,RH
€ 36.50
34028F
340281222
ref: 34028F
STEP,FR,LH
€ 31.00
34028G
340281223
ref: 34028G
STEP,FR,RH
€ 33.00
35011
350111155
ref: 35011
STAY,LH
€ 111.00
35011A
350111156
ref: 35011A
STAY,RH
€ 114.00
92015
920151180
ref: 92015
NUT,FLANGED,10MM,BLAC
€ 2.50
92015A
920151249
ref: 92015A
NUT,FLANGED,12MM,BLAC
€ 3.50
92022B
920221796
ref: 92022B
WASHER,STEP FITTING
€ 2.50
92022C
920221797
ref: 92022C
WASHER,STEP FITTING
€ 3.50
92045
92043079
ref: 92045
PIN-REAR FOOTREST FIT
€ 5.50
92043A
92043115
ref: 92043A
PIN,FOOTREST BAR FIT
€ 6.50
112
112C1035
ref: 112
112C1035
120
120S0825
ref: 120
BOLT-SOCKET
€ 3.00
410
410F0800
ref: 410
WASHER-PLANE-SMALL,8M
€ 3.00
410A
410F1200
ref: 410A
410F1200
550
550D2012
ref: 550
PIN,COTTER,2.0X12
€ 0.50
550A
550D2515
ref: 550A
PIN COTTER,295X15
€ 0.50
