MUFFLER (AR125-B3/B4)
AR125B3 1986 UNITED KINGDOM FRANCE

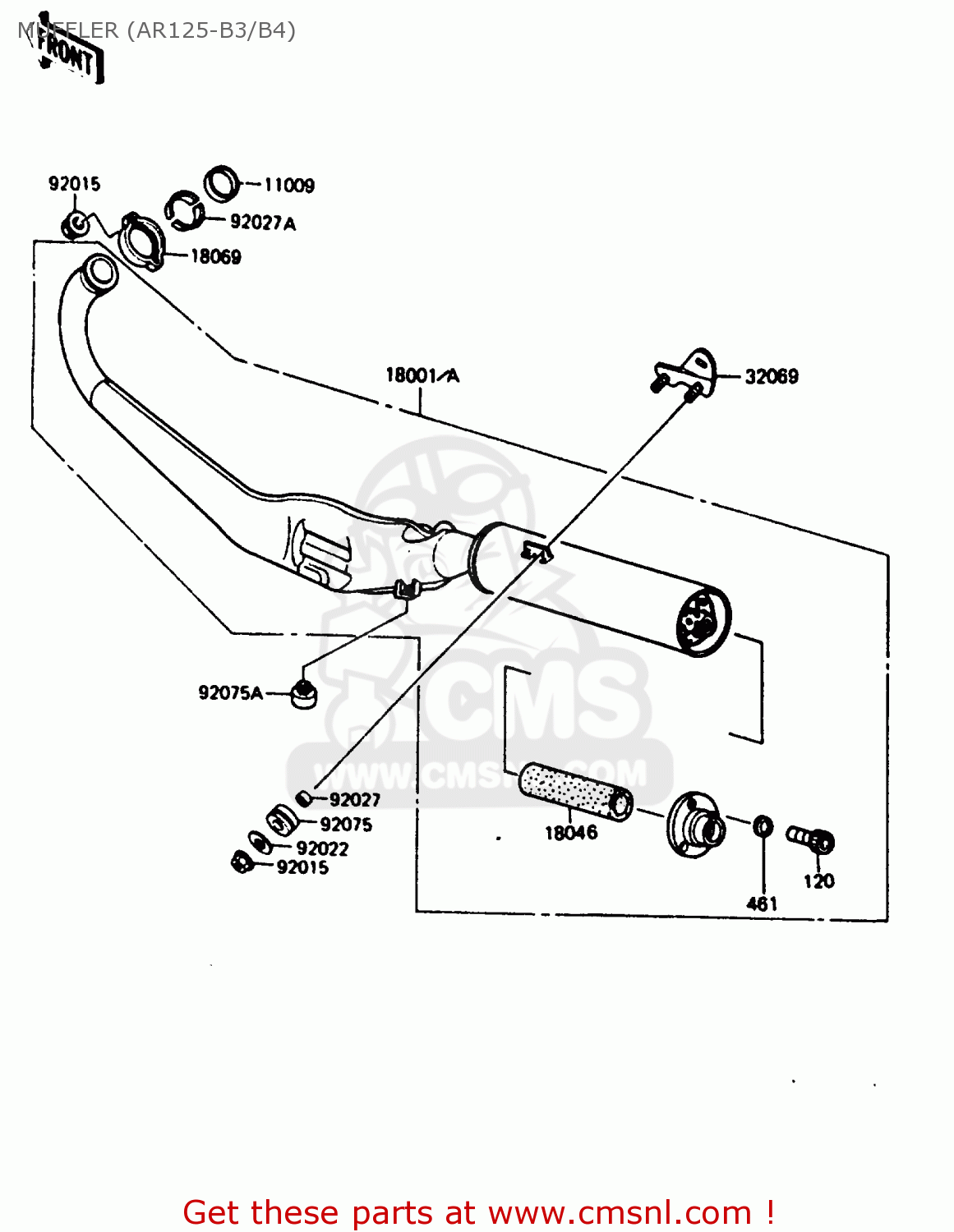

Muffler (ar125-b3/b4) diagram AR125B3 1986 UNITED KINGDOM FRANCE
MUFFLER (AR125-B3/B4) AR125B3 1986 UNITED KINGDOM FRANCE
×
prices are in EUR
ref
part #
description
quantity
11009
110091199
ref: 11009
GASKET,EXHAUST PIPE (MCA)
€ 5.50
18001
180011612
ref: 18001
UK
MUFFLER
€ 469.00
18001A
180011614
ref: 18001A
FR
MUFFLER
€ 396.50
18046
180461066
ref: 18046
WOOL,MUFFLER
€ 18.00
18069
180691055
ref: 18069
HOLDER-EXHAUST PIPE
€ 25.00
32069
320691126
ref: 32069
BRACKET-MUFFLER
€ 9.00
92015
920151163
ref: 92015
NUT,STEERING,28MM
€ 17.50
92022
920221545
ref: 92022
WASHER,7X18X1.2
€ 1.00
92027
92027102
ref: 92027
COLLAR
€ 1.00
92027A
920271457
ref: 92027A
COLLAR,EXHAUST PIPE,B
€ 3.50
92075
18063005
ref: 92075
DAMPER,MUFFLER
€ 3.00
92075A
92075015
ref: 92075A
DAMPER RUBB-MAIN STND
€ 3.00
120
120S0510
ref: 120
BOLT-SOCKET
€ 0.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
€ 0.50
