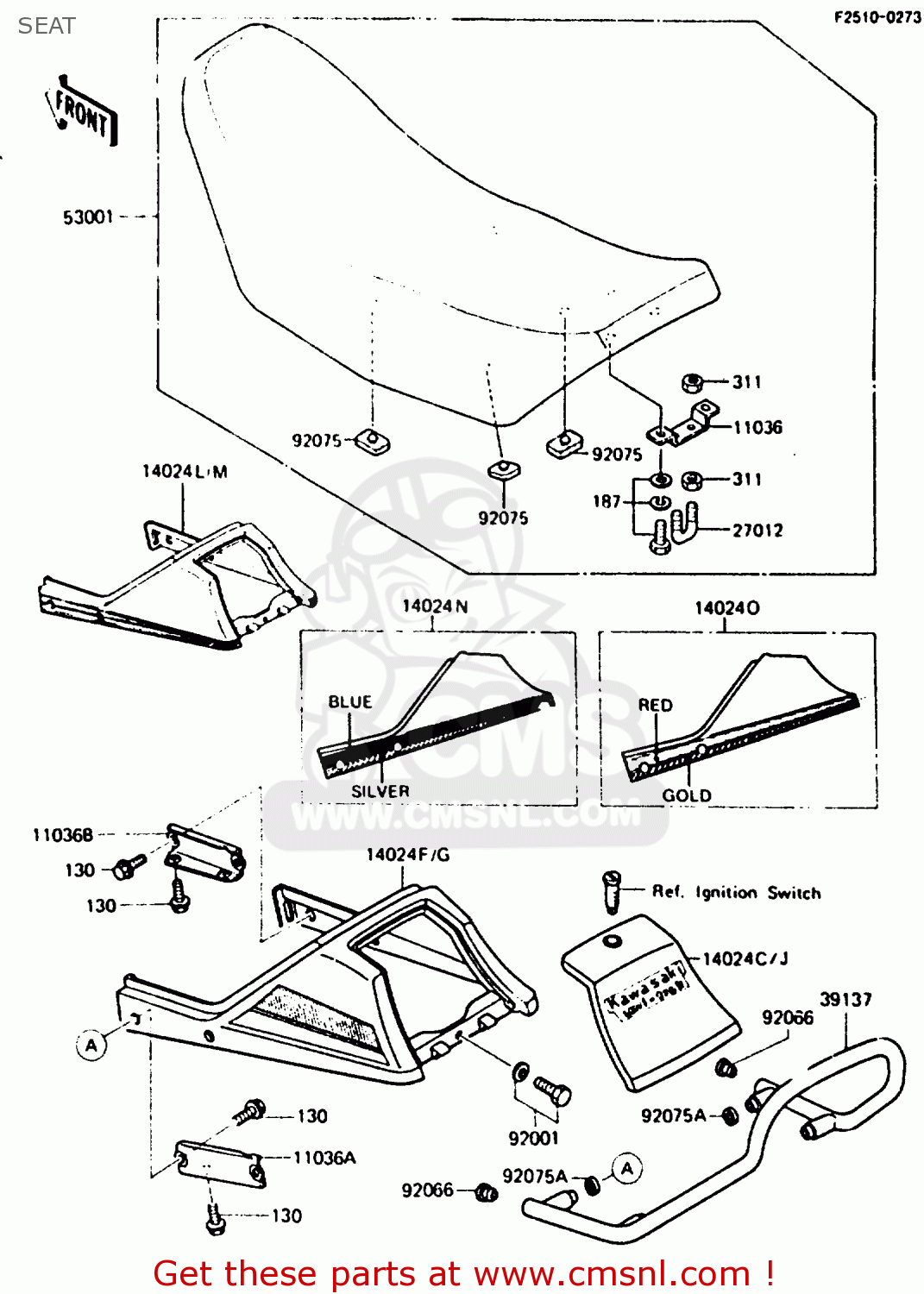

SEAT

ref

part #

description

quantity

11036

110361597
ref: 11036

BRACKET-A,SEAT HOOK

€ 6.00

11036A

110361824
ref: 11036A

BRACKET-A,STAY,LH

€ 8.50

11036B

110361825
ref: 11036B

BRACKET-A,STAY,RH

€ 9.00

14024J

14025519421
ref: 14024J

COVER,SEAT COVER,F.BL

€ 65.00

14024L

140255255F2
ref: 14024L

COVER,SEAT,G.SILVER

€ 152.50

14024M

140255256B1
ref: 14024M

COVER,SEAT,F.RED

€ 171.50

27012

270121019
ref: 27012

HOOK,SEAT

€ 5.50

39137

391371014
ref: 39137

STAY-COMP,RR

€ 94.00

53001

530011236
ref: 53001

SEAT-ASSY

€ 292.50

92001

920011772
ref: 92001

BOLT,6X16

€ 3.00

92066

920661034
ref: 92066

PLUG,FRAME END

€ 3.00

92075

920751153
ref: 92075

DAMPER,SEAT

€ 3.00

92075A

920754010
ref: 92075A

DAMPER,HEAD LAMP

€ 2.50

130

130C0816
ref: 130

BOLT-FLANGED,8X16,BLA

€ 0.50

187

187B0614
ref: 187

BOLT-UPSET-WSP

€ 0.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50
