GEAR CHANGE MECHANISM
AR125B2 1985 FRANCE

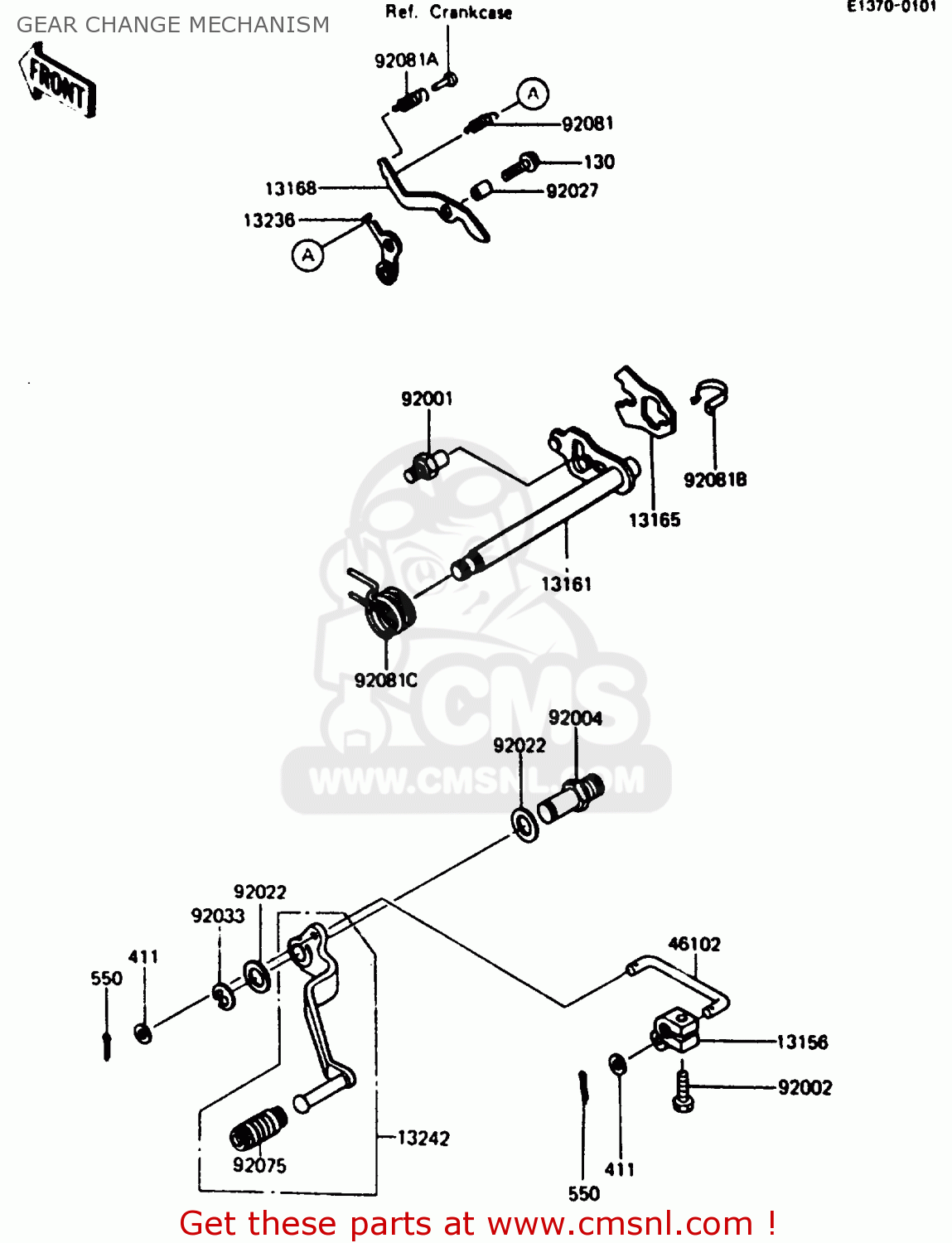

Gear change mechanism diagram AR125B2 1985 FRANCE
GEAR CHANGE MECHANISM AR125B2 1985 FRANCE
×
prices are in EUR
ref
part #
description
quantity
13156
131561109
ref: 13156
LEVER-CHANGE,LINK
€ 29.00
13161
131611037
ref: 13161
LEVER-COMP-CHANGE SHA
€ 43.00
13165
131651034
ref: 13165
PAWL,CHANGE LEVER
€ 7.00
13168
131681127
ref: 13168
LEVER,CHANGE DRUM
€ 3.50
13236
132361049
ref: 13236
LEVER-COMP,NEUTRAL PO
€ 4.00
13242
132421154
ref: 13242
LEVER-ASSY-CHANGE,PED
€ 25.50
46102
461021056
ref: 46102
ROD,UNI TRAK
€ 224.00
92001
920011401
ref: 92001
BOLT,RETURN SPRING
€ 3.00
92002
920021237
ref: 92002
BOLT,6X20
€ 2.50
92004
920041109
ref: 92004
STUD
€ 12.50
92022
920221593
ref: 92022
WASHER,12.5X22X1.2
€ 3.00
92027
920271331
ref: 92027
COLLAR,GEAR POSITIONI
€ 3.50
92033
920331178
ref: 92033
RING-SNAP,TYPE-E,10MM
€ 2.50
92075
13157007
ref: 92075
RUBBER, SHIFT PEDAL
€ 3.50
92081
920811109
ref: 92081
SPRING,CHANGE LEVER
€ 3.00
92081A
92081119
ref: 92081A
SPRING,CHANGE LEVER
€ 3.00
92081B
920811493
ref: 92081B
SPRING,CHANGE LEVER
€ 4.50
92081C
920811750
ref: 92081C
SPRING,CHANGE PEDAL R
€ 7.50
130
130B0620
ref: 130
BOLT,HEX HEAD,6X20
€ 2.50
411
411E0600
ref: 411
W-PLAIN-S
€ 0.50
550
550D2012
ref: 550
PIN,COTTER,2.0X12
€ 0.50
