ELECTRICAL EQUIPMENT
AR125B2 1985 FRANCE

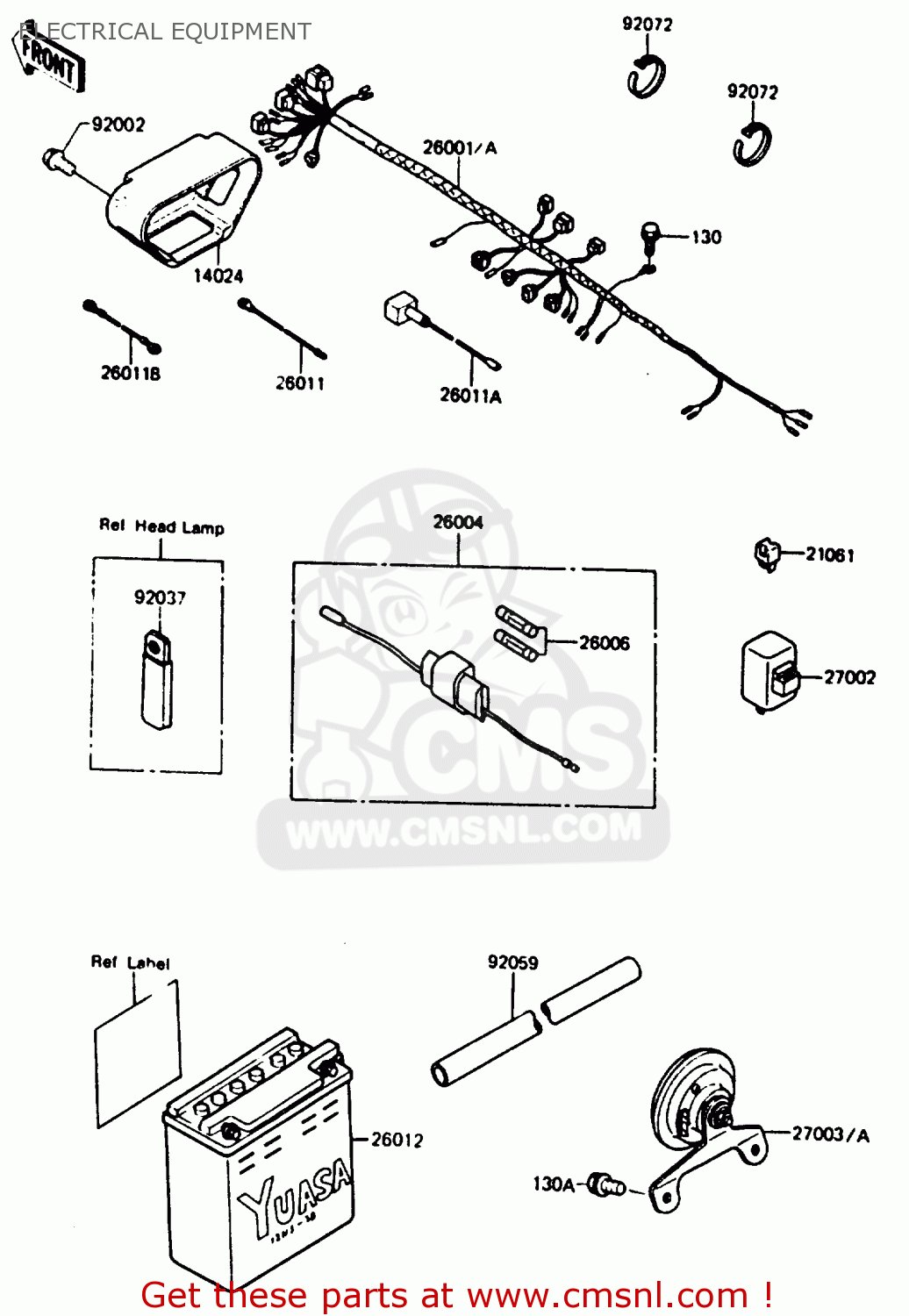

Electrical equipment diagram AR125B2 1985 FRANCE
ELECTRICAL EQUIPMENT AR125B2 1985 FRANCE
×
prices are in EUR
ref
part #
description
quantity
21061
210611003
ref: 21061
RECTIFIER
€ 25.00
26001
260011439
ref: 26001
HARNESS,MAIN
€ 185.00
26004
260041013
ref: 26004
FUSE-ASSY
€ 20.00
26006
260061003
ref: 26006
FUSE,15A,L=30M/M
€ 3.00
26011
26011095
ref: 26011
WIRE-LEAD,L=285
€ 8.00
26011A
260111193
ref: 26011A
WIRE-LEAD,BATTERY,(+)
€ 7.50
26011B
260111194
ref: 26011B
WIRE-LEAD,BATTERY,(-)
€ 7.00
26012
260121068
ref: 26012
BATTERY,12N5-3B
€ 63.00
27002
270021053
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 33.50
27001
270031071
ref: 27001
HORN
€ 31.00
92059
920591150
ref: 92059
TUBE,8X9X200
€ 3.00
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
