CARBURETOR
AR125B2 1985 FRANCE

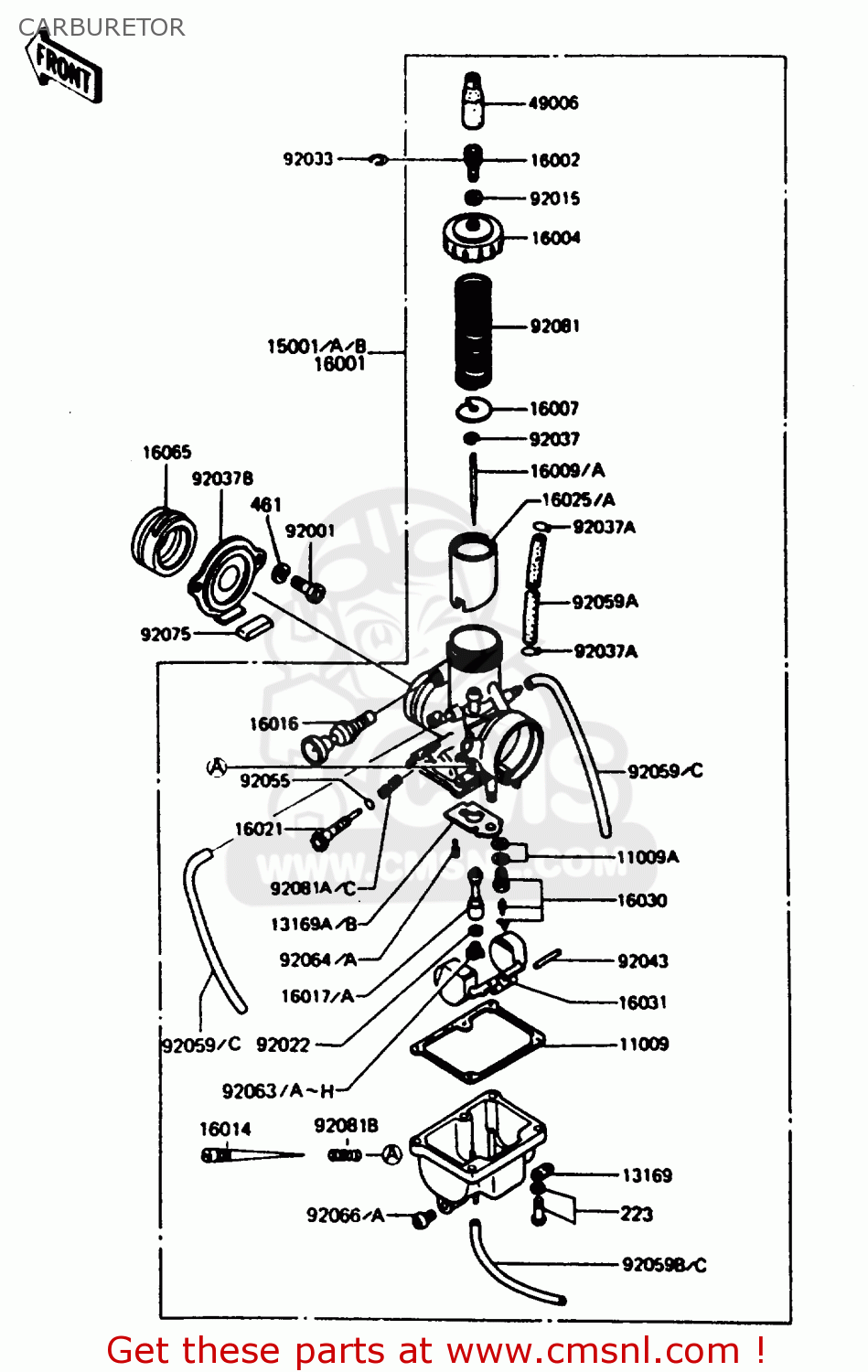

Carburetor diagram AR125B2 1985 FRANCE
CARBURETOR AR125B2 1985 FRANCE
×
prices are in EUR
ref
part #
description
quantity
11009
110091147
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 6.50
11009A
16029004
ref: 11009A
WASHER-FLOAT VLV SEAT
€ 2.50
13169
131691226
ref: 13169
PLATE,TUBE CLAMP
€ 5.00
13169B
131691929
ref: 13169B
PLATE,LOCK
€ 7.00
15001
150011123
ref: 15001
CARBURETOR-ASSY
€ 184.50
16002
16002011
ref: 16002
CABLE ADJUSTER
€ 9.50
16004
16004025
ref: 16004
CAP,MIXING CHAMBER
€ 23.50
16007
16007023
ref: 16007
SPRING SEAT,THRTL VL
€ 7.00
16009
160091212
ref: 16009
NEEDLE-JET,4C01-2
€ 19.00
16016
160161027
ref: 16016
PLUNGER
€ 24.00
16017
160171130
ref: 16017
JET-NEEDLE,P-2
€ 25.50
16021
160211042
ref: 16021
SCREW-THROTTLE STOP
€ 11.50
16025
160251028
ref: 16025
VALVE-THROTTLE,CA1.5
€ 77.50
16030
160301053
ref: 16030
VALVE-FLOAT,#2.0
€ 40.50
16031
160311005
ref: 16031
FLOAT
€ 39.00
16065
160651061
ref: 16065
HOLDER-CARBURETOR
€ 9.50
49006
490061065
ref: 49006
BOOT,AIR FILTER
€ 4.50
92001
920011752
ref: 92001
BOLT,PIPE-COMP-SUSP
€ 8.00
92015
16003006
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92022
16034001
ref: 92022
WASHER-MAIN JET
€ 2.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
92037072
ref: 92037A
CLAMP,TUBE
€ 4.00
92037B
920371351
ref: 92037B
CLAMP,CARBURETOR HOLD
€ 6.00
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92055
92055044
ref: 92055
'O' RING
€ 7.00
92059A
920591022
ref: 92059A
TUBE,VINYL
€ 2.50
92059C
920591429
ref: 92059C
TUBE,3X5X250
€ 5.50
92063A
920631028
ref: 92063A
JET-MAIN,#A102.5R
€ 10.00
92063D
920631031
ref: 92063D
MAIN JET,#95R
€ 10.00
92063E
920631033
ref: 92063E
JET-MAIN,#A100R
€ 17.00
92063G
920631035
ref: 92063G
(RACING USE ONLY)
MAIN JET,#97.5R
€ 10.00
92063H
920631042
ref: 92063H
JET-MAIN,#A105R
€ 10.50
92064
92064040
ref: 92064
#22.5
JET-PILOT,#22.5
€ 11.50
92066A
920661171
ref: 92066A
PLUG,DRAIN
€ 10.50
92075
920751423
ref: 92075
DAMPER,CARBURETOR
€ 2.00
92081
16006023
ref: 92081
SPRING,THROTTLE VALV
€ 10.00
92081A
920811152
ref: 92081A
SPRING,THROTTLE ADJST
€ 4.00
223
223B0416
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
461
461K0600
ref: 461
WASHER-SPRING
€ 0.50
